Section 238 (DECKLID, Hatch, Liftgate &Tailgate): Liftgate: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release liftgate latch and open liftgate.
  2. Remove screws attaching liftgate wire connector to rear header.
  3. Disconnect liftgate wire harness from body wire harness.
  4. Remove liftgate upper frame molding.
  5. Disconnect rear window washer hose from spray nozzle.
  6. Support liftgate on a suitable lifting device.
  7. Remove screws attaching support cylinders to liftgate.
  8. Remove bolts attaching liftgate hinge to roof header (Fig 1 ).

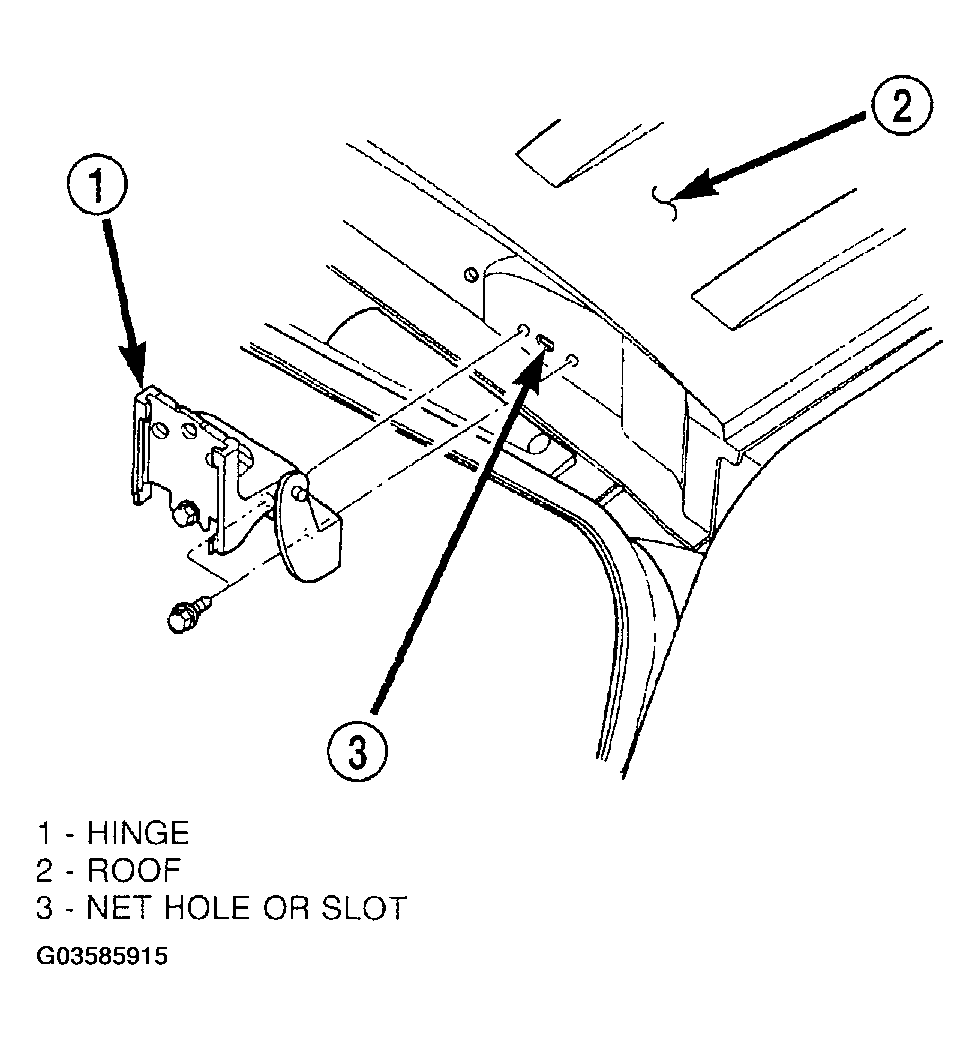

    Fig 1: Removing Liftgate
    G03585915Courtesy of DAIMLERCHRYSLER CORP.
  9. With assistance, remove liftgate from vehicle.
