Idle Air Control Motor: Removal
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
When servicing throttle body components, always reassemble components with new O-rings and seals where applicable. If assembly of component is difficult, a light coat of engine oil may be applied to the O-RINGS ONLY to aid assembly. Use care when removing hoses to prevent damage to hose or hose nipple.
- Disconnect negative cable from battery.

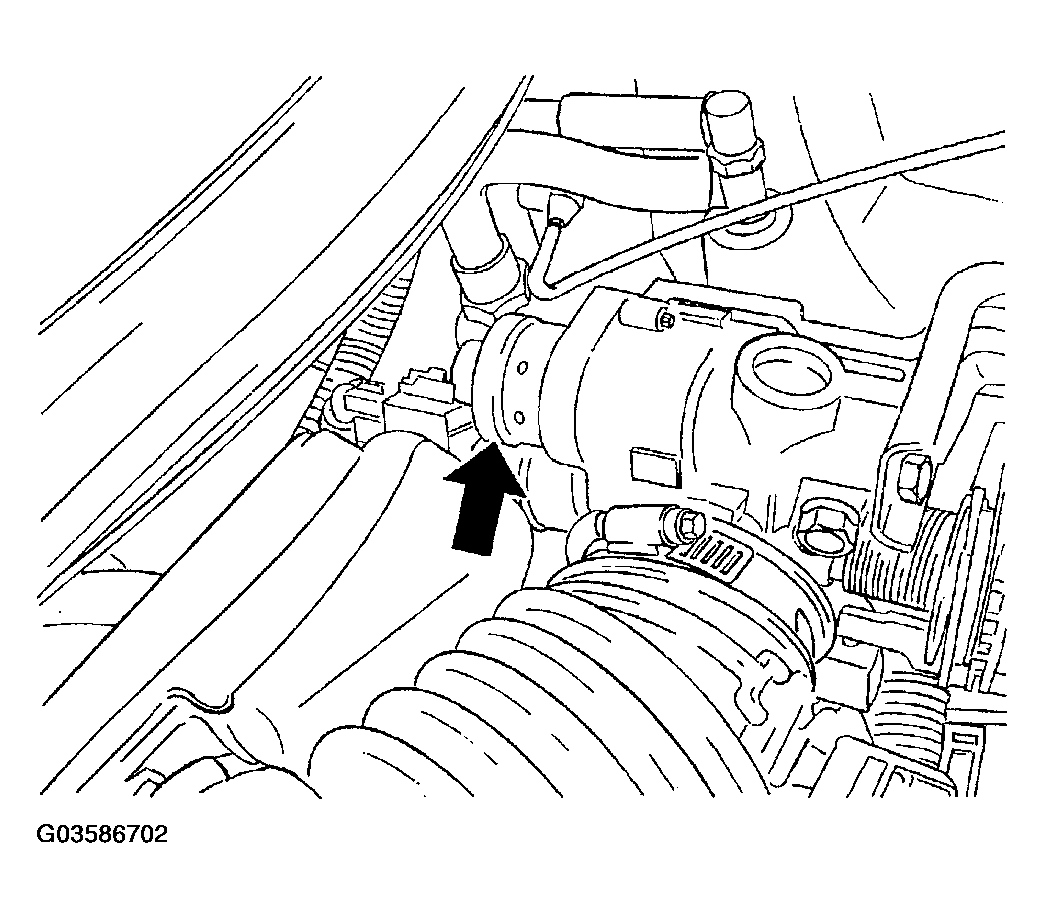

- Remove electrical connector from idle air control valve (Fig 1).
- Remove idle air control valve mounting screw.
- Remove valve from throttle body. Ensure the O-rings is removed with the valve.
