Driver Seat Switch: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. On models equipped with the eight-way power seat, using a push pin remover or another suitable wide flat-bladed tool, gently pry the power seat and power recliner switch knobs off of the switch levers (Fig 1 ).

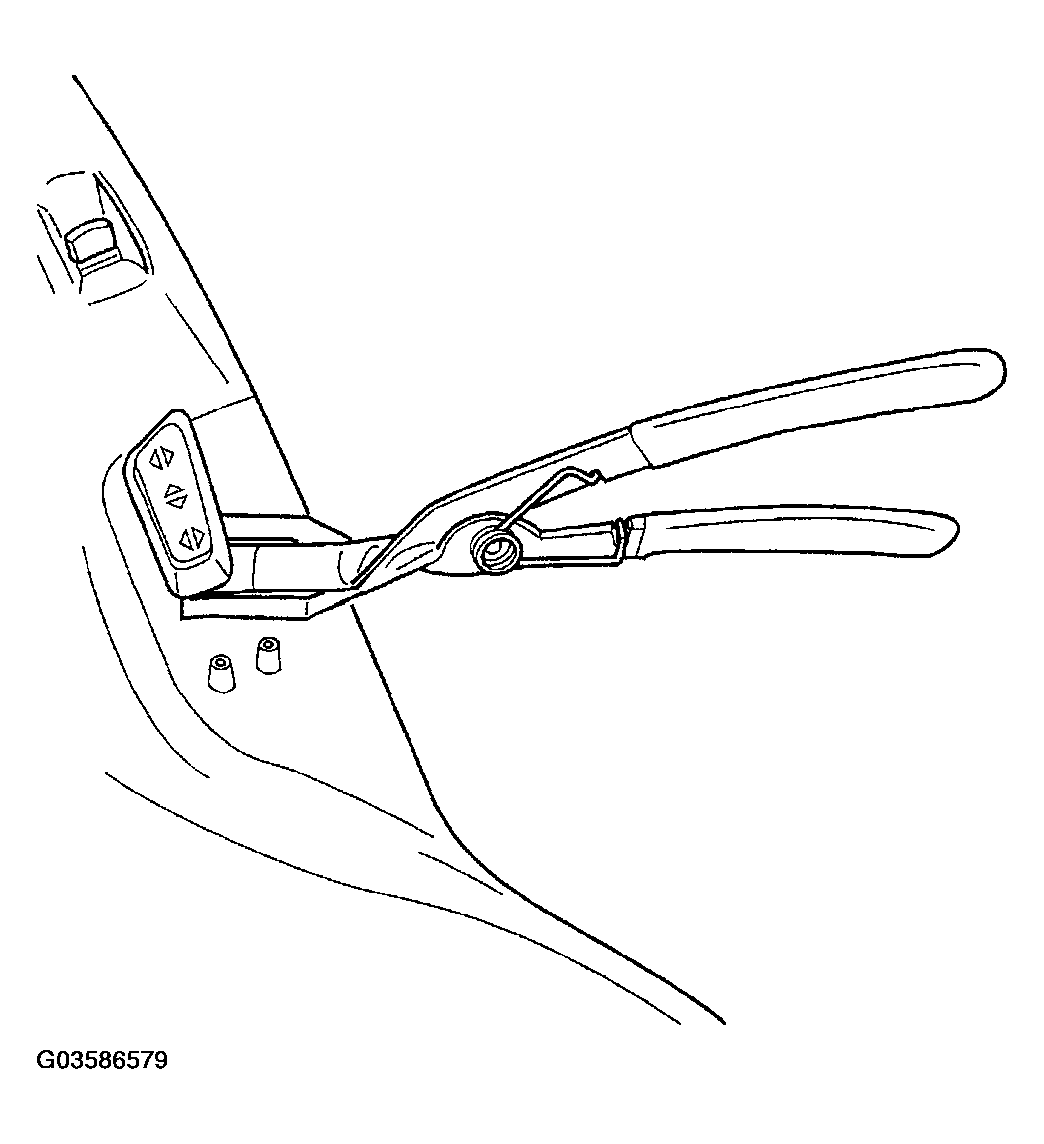

    Fig 1: Removing Switch Control Knobs
    G03586579Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the screws that secure the outboard seat cushion side shield to the seat cushion frame. Refer to SEATS for the procedure .
  4. Pull the outboard seat cushion side shield away from the seat cushion frame far enough to access the power seat switch wire harness connector.
  5. Disconnect the power seat wire harness connector from the power seat switch connector receptacle.
  6. Remove the screws that secure the power seat switch to the inside of the outboard seat cushion side shield.
  7. Remove the power seat switch from the outboard seat cushion side shield.
