Driver Seat Switch: Description
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

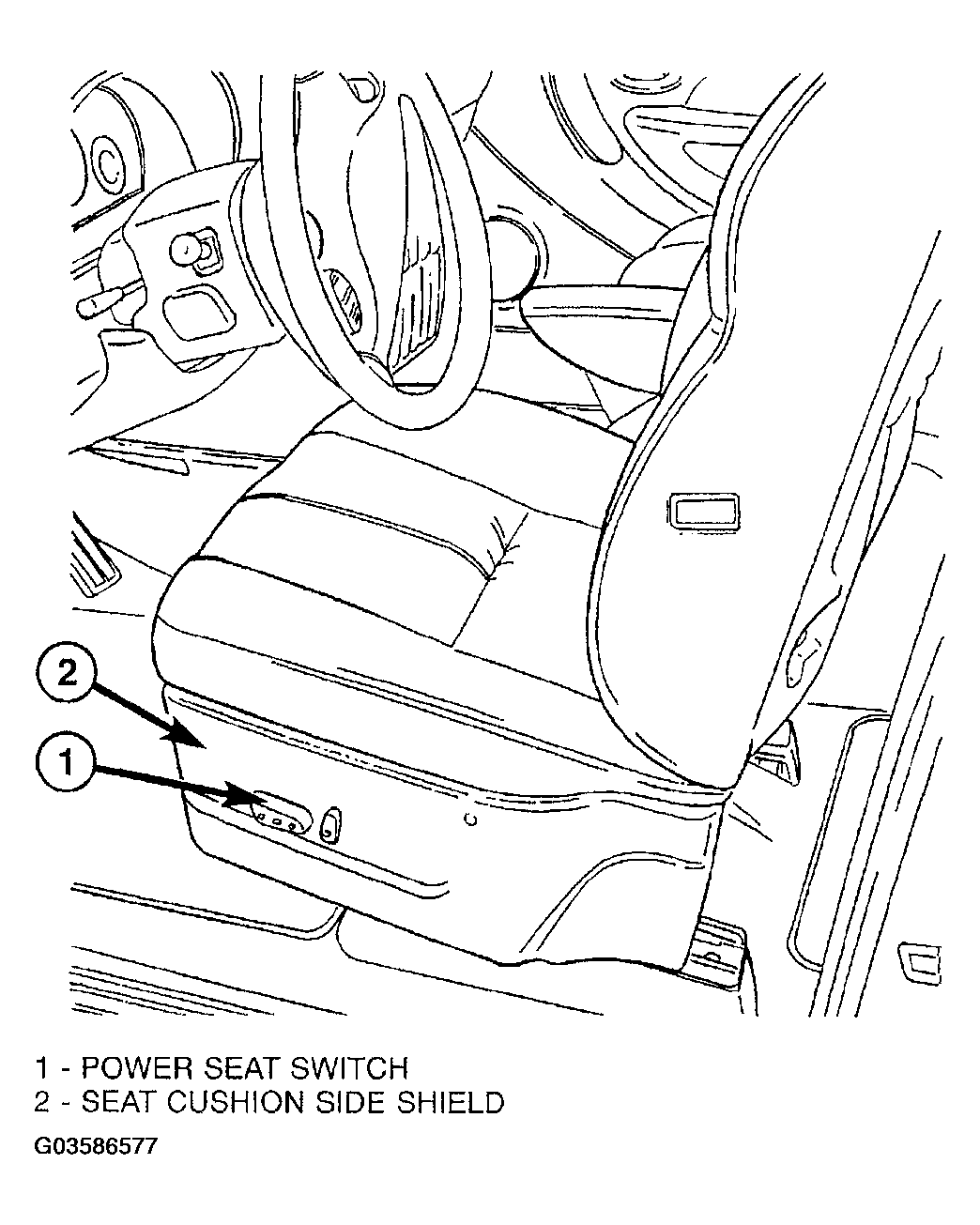

Vehicles equipped with a driver side power seat utilize an eight-way power seat switch. This eight-way power seat switch features two knobs ganged together on the outboard seat cushion side shield (Fig 1 ).
The switch is secured to the back of the seat cushion side shield with two screws. However, the control knobs for the seat switch unit must be removed before the seat switch can be removed from the side shield.
The power seat switch cannot be repaired. If one switch is damaged or faulty, the entire power seat switch unit must be replaced.
