Fog Lamp Unit Alignment
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

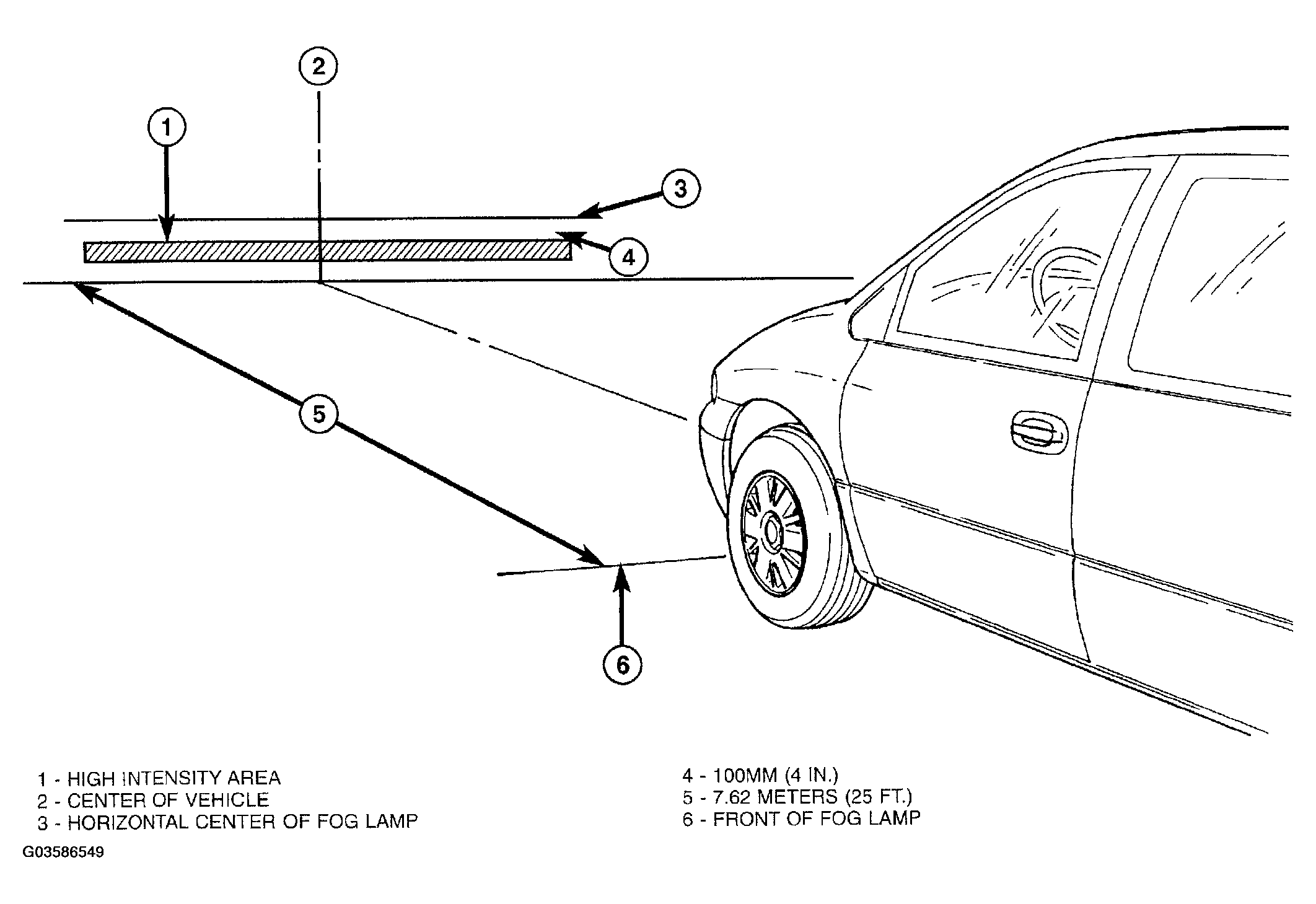

Prepare an alignment screen (Refer to STANDARD PROCEDURE ). A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp center line and straight ahead (Fig 1 ). To improve visual interpretation of the fog lamp pattern on the alignment screen, the headlamps should be in the "off" position.
The fog lamps are adjusted by a adjustment screw located through the lens on Dodge vehicles, and by a knob on the back of the lamp on Chrysler vehicles.
