Rear Window Defogger Relay: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the cover from the Integrated Power Module (IPM) (Fig 1).

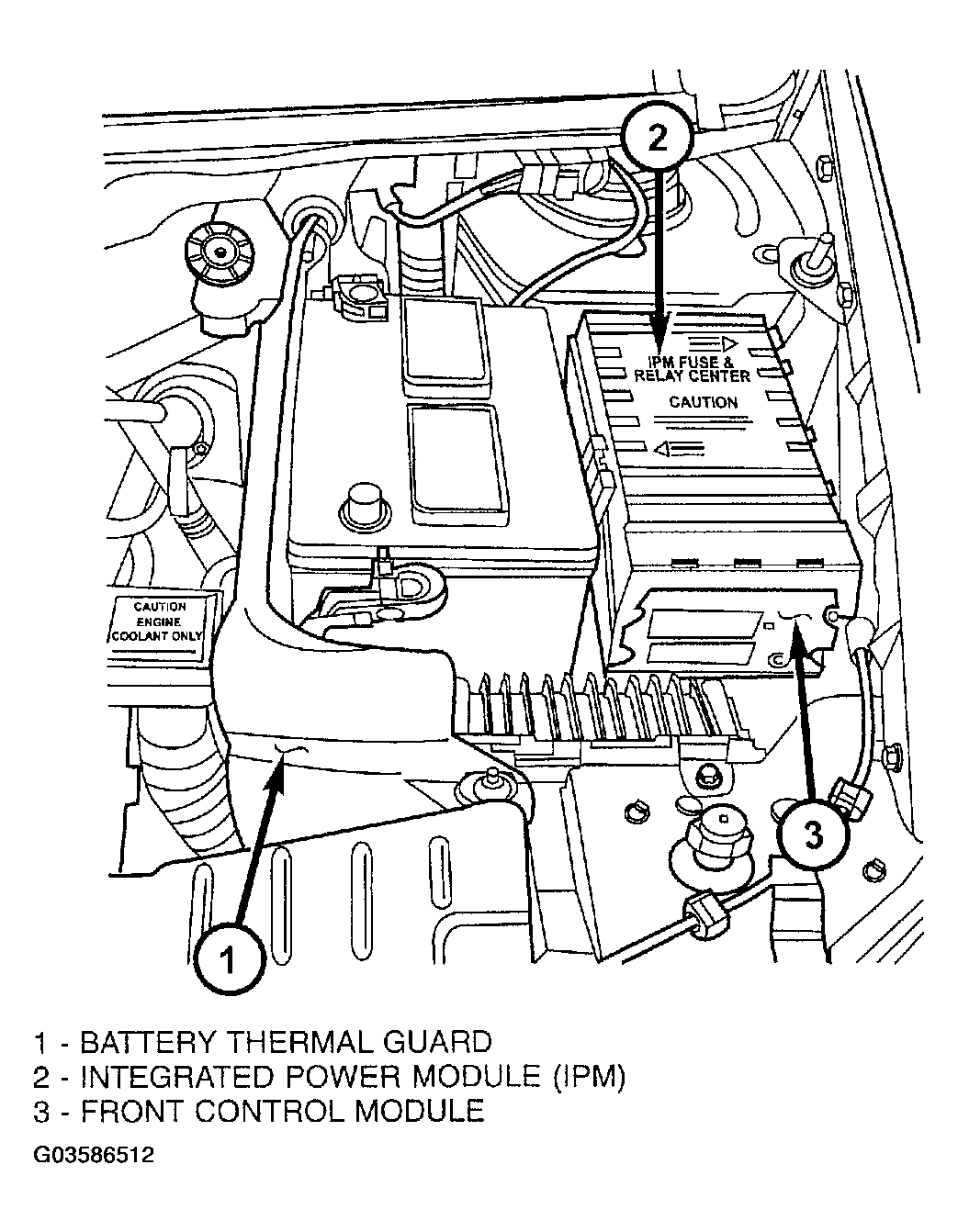

    Fig 1: Identifying Integrated Power Module
    G03586512Courtesy of DAIMLERCHRYSLER CORP.
  3. Refer to the fuse and relay layout map molded into the inner surface of the IPM cover for rear window defogger relay identification and location.
  4. Remove the rear window defogger relay from the IPM.
