Diagnosis And Testing - Strut Assembly
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect for damaged or broken coil springs (See Figure ).
- Inspect for torn or damaged strut assembly dust boots (See Figure ).
- Inspect the coil spring isolator on the lower spring seat for any signs of damage or deterioration.

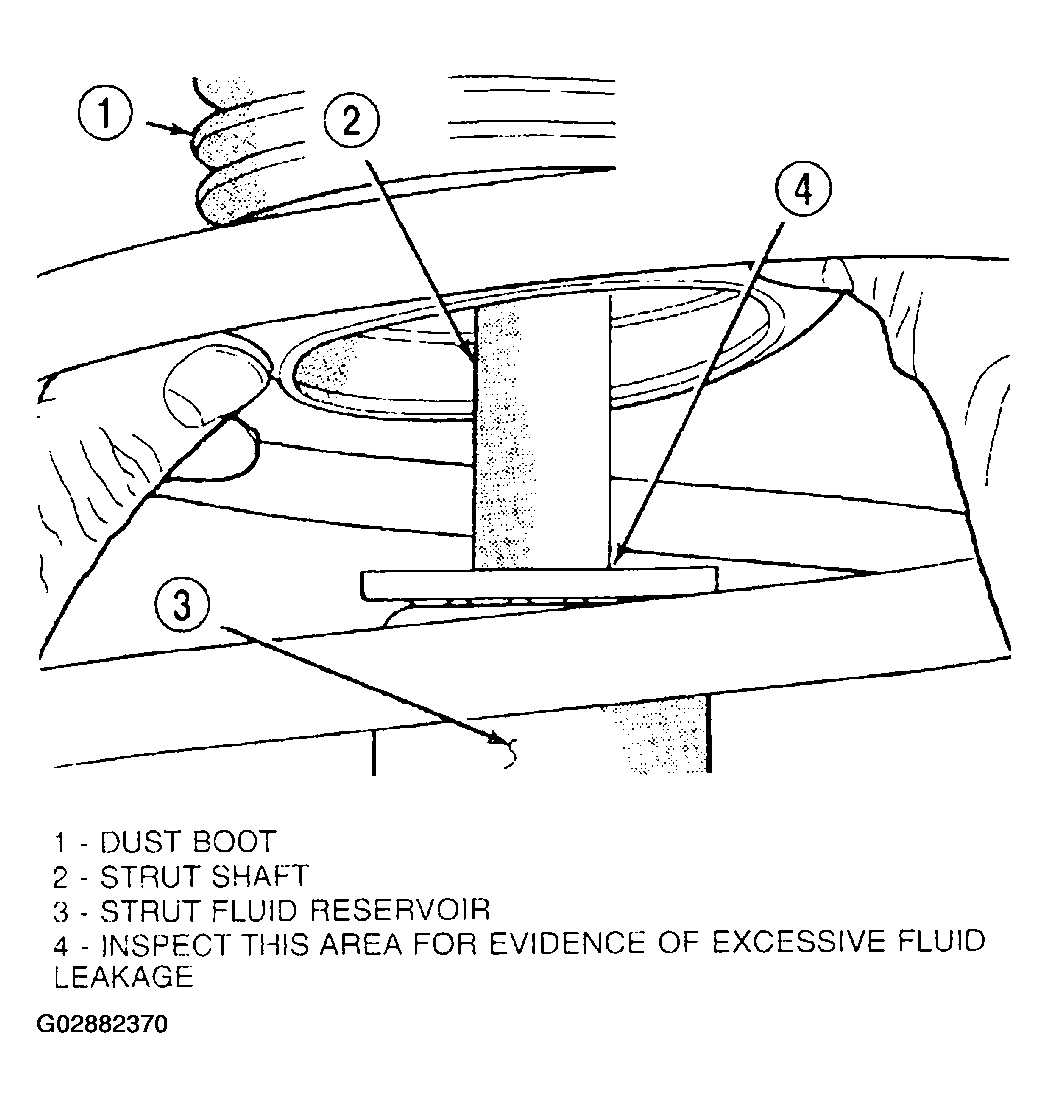

- Lift dust boot (See Fig 1 ) and inspect strut assembly for evidence of fluid running from the upper end of fluid reservoir. (Actual leakage will be a stream of fluid running down the side and dripping off lower end of unit). A slight amount of seepage between the strut rod and strut shaft seal is not unusual and does not affect performance of the strut assembly (See Fig 1 ). Also inspect jounce bumpers for signs of damage or deterioration.
