Front Wiper Motor: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

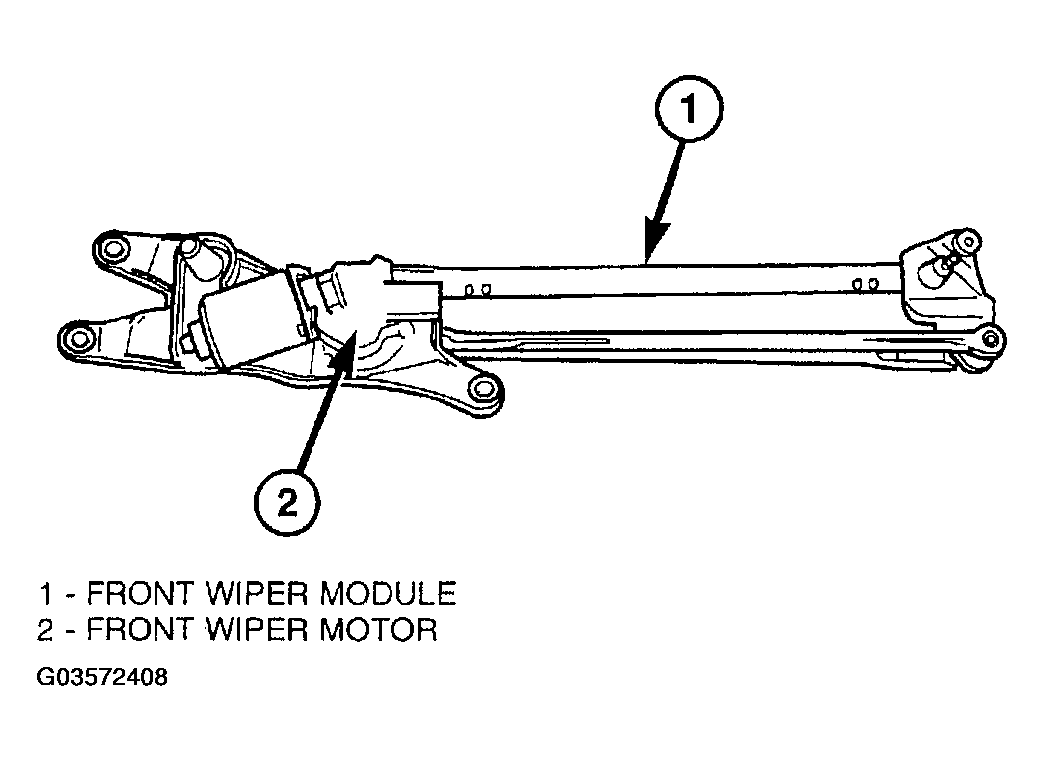

  1. Position the wiper motor into wiper module and install the three front wiper motor mounting bolts (Figure).

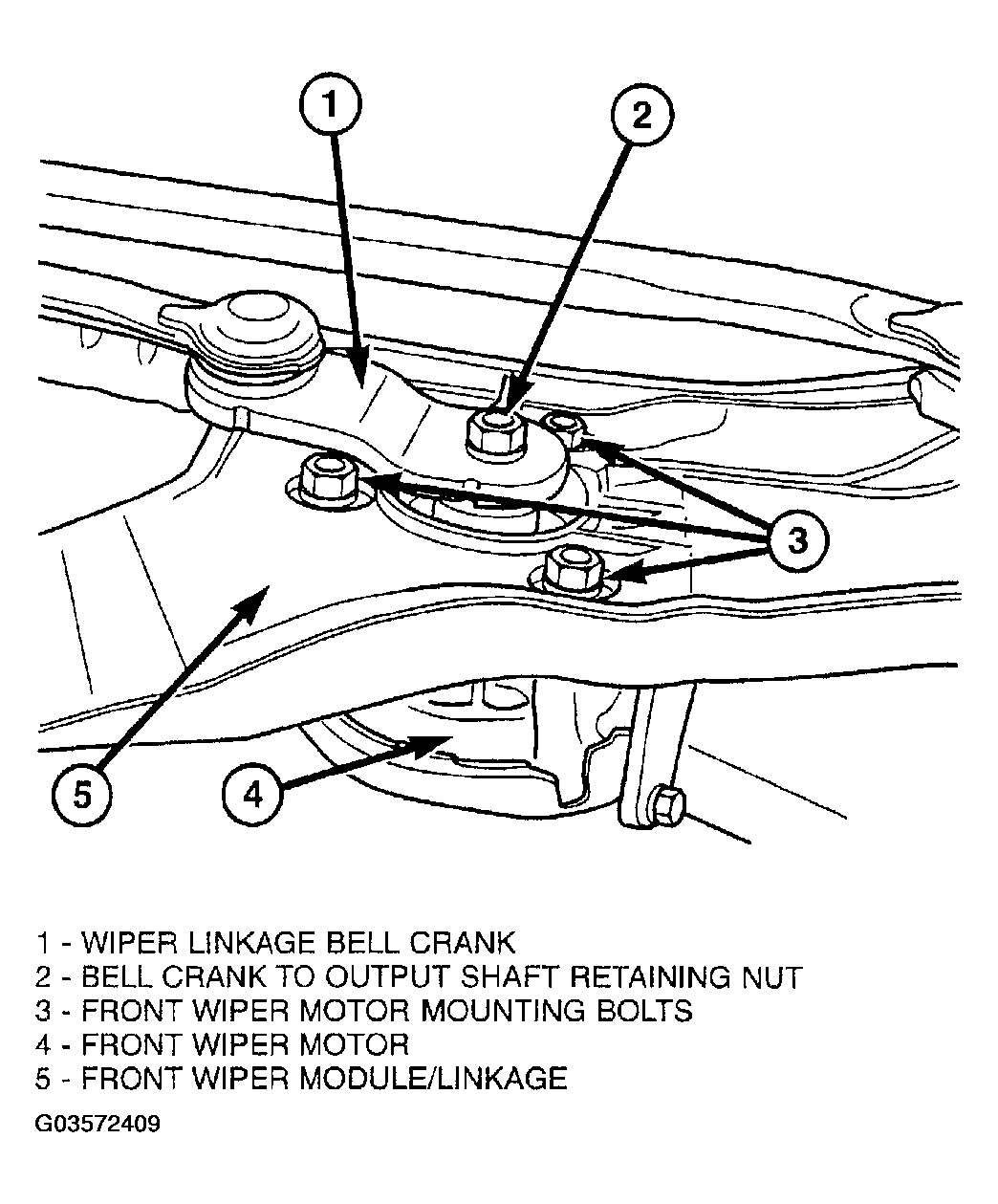

  2. Press the socket and ball joint together on end of bell crank (Figure).
  3. Install the wiper module (Refer to INSTALLATION ) and (Figure).
  4. Connect the battery negative cable.
  5. Verify vehicle and system operation.
  6. Close hood.
