Output Seal: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise vehicle on hoist.
  2. Remove rear driveline module. (Refer to REMOVAL  )
  3. Use suitable screwdriver to remove output seal (Fig 1 ).

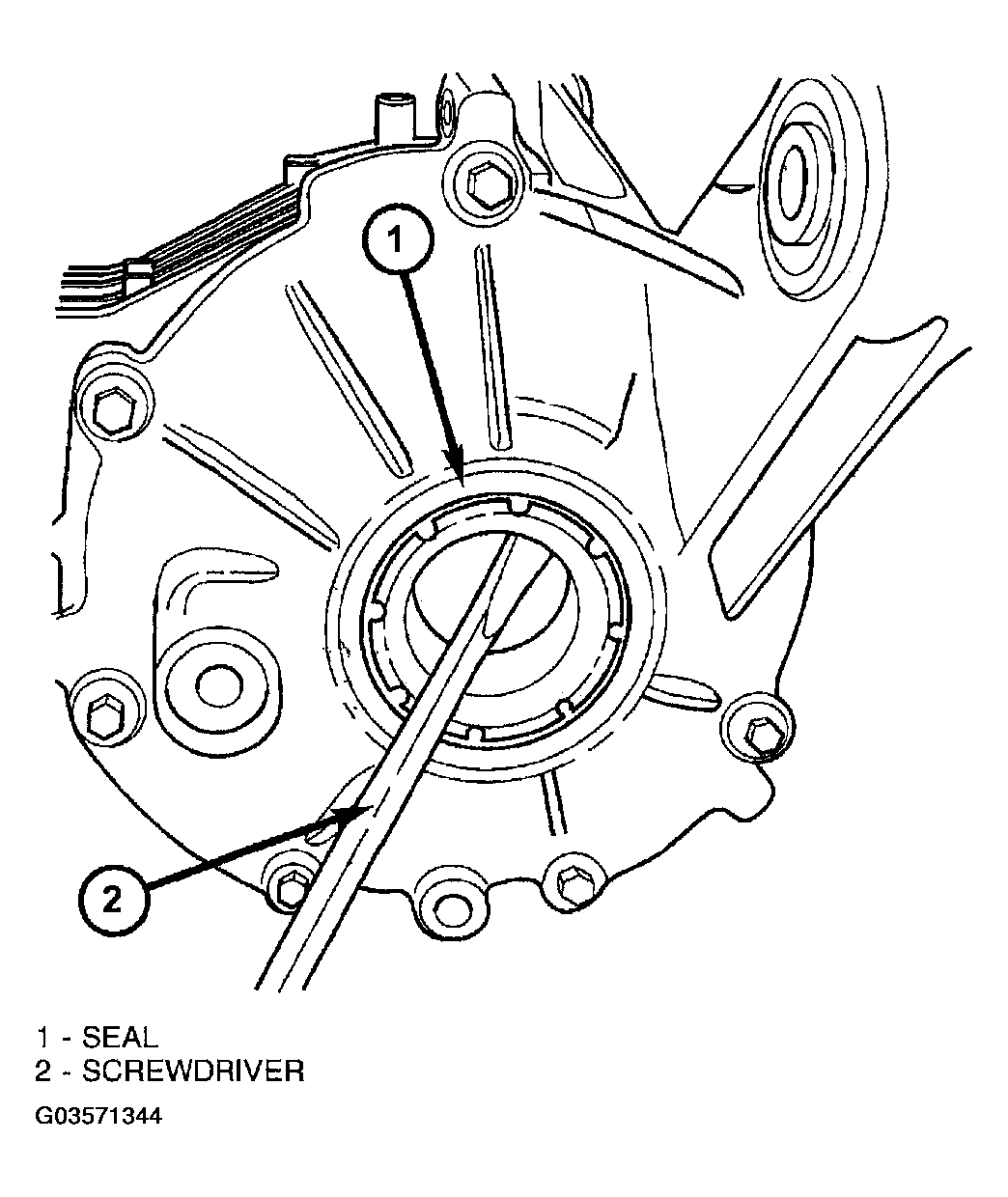

    Fig 1: Removing Axle Seal
    G03571344Courtesy of DAIMLERCHRYSLER CORP.
