Defroster Duct: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the defroster duct into the instrument panel.
  2. Install the six screws that secure the defroster duct to the instrument panel. Tighten the screws to 2.2 N.m (20 in.lbs,).
  3. Install the defroster duct adapter onto the defroster duct.
  4. Install the screw that secures the defroster duct adapter to the instrument panel support. Tighten the screw to 2.2 N.m (20 in.lbs.).
  5. Connect the wire harness connector to the center radio speaker.
  6. Install the instrument panel (Refer to INSTRUMENT PANEL ASSEMBLY ).

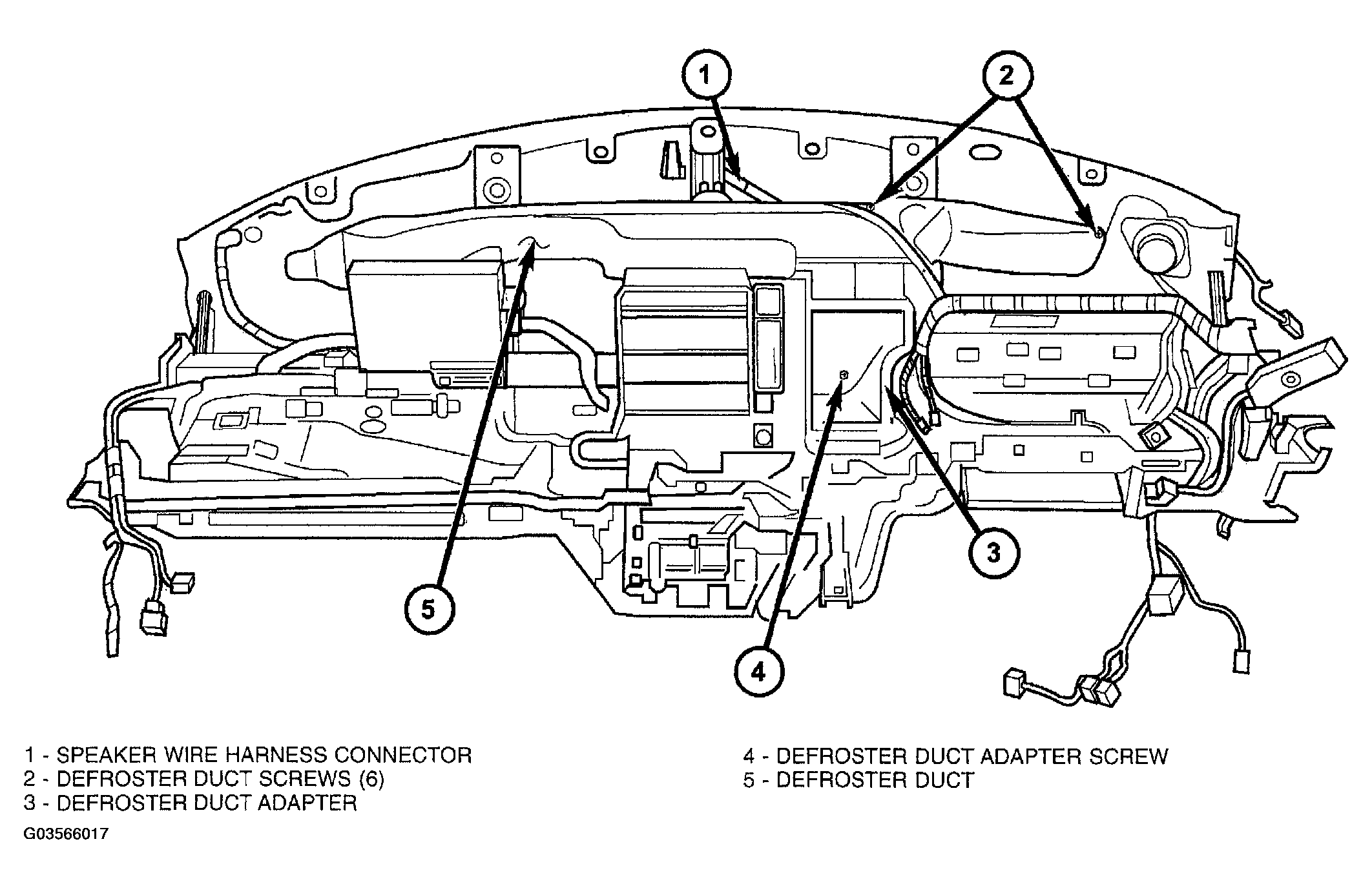

    Fig 1: Identifying Defroster Duct
    G03566017Courtesy of DAIMLERCHRYSLER CORP.
