Evaporator Temperature Sensor: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the HVAC housing from the vehicle (Refer to HVAC HOUSING ).
  3. Disconnect the HVAC wire harness connector from the evaporator temperature sensor (Fig 1).

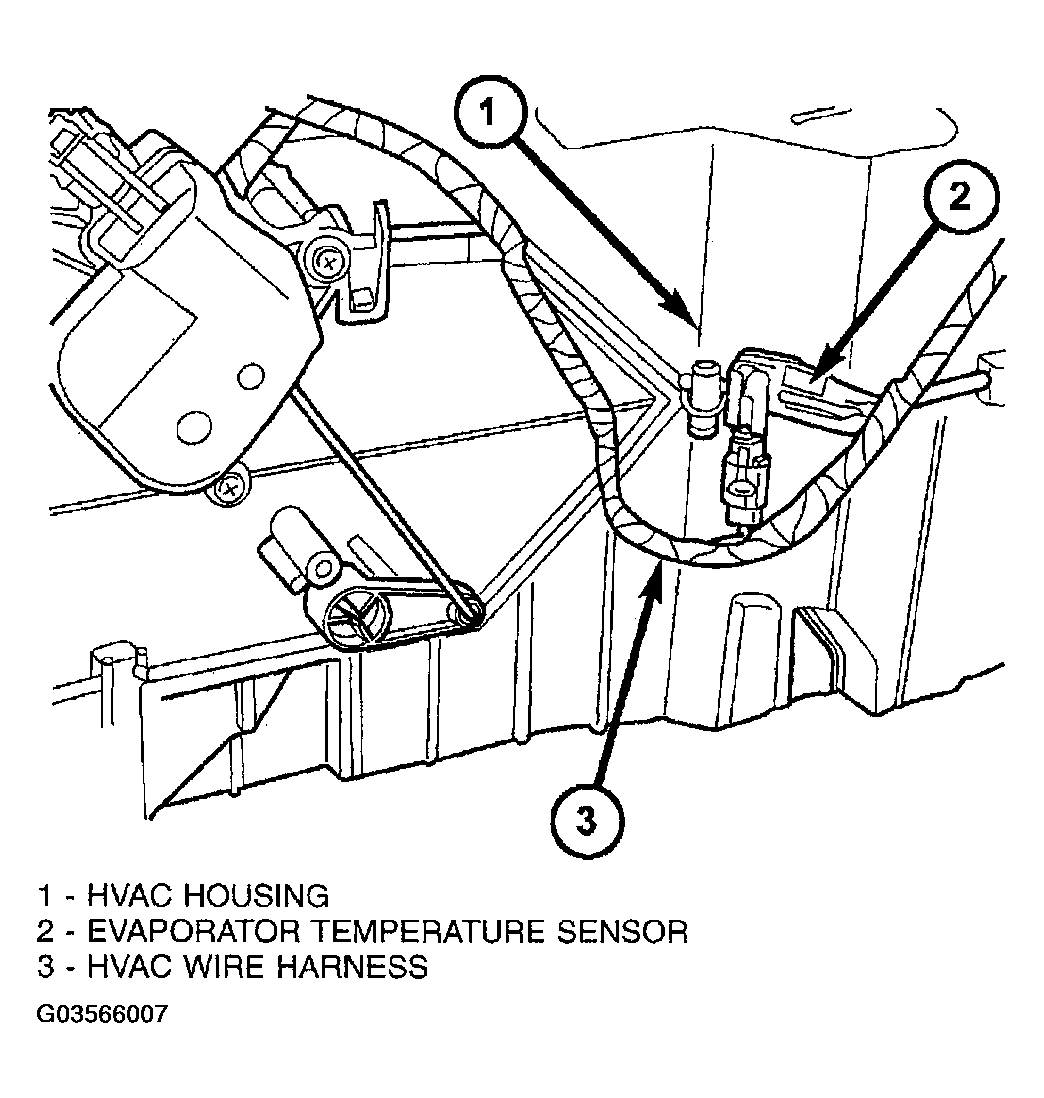

    Fig 1: Identifying Evaporator Temperature Sensor Wire Connector
    G03566007Courtesy of DAIMLERCHRYSLER CORP.
  4. Disassemble the HVAC housing to gain access to the evaporator coil (Refer to HVAC HOUSING ).
  5. Remove the evaporator temperature sensor probe from the evaporator coil (Fig 2).

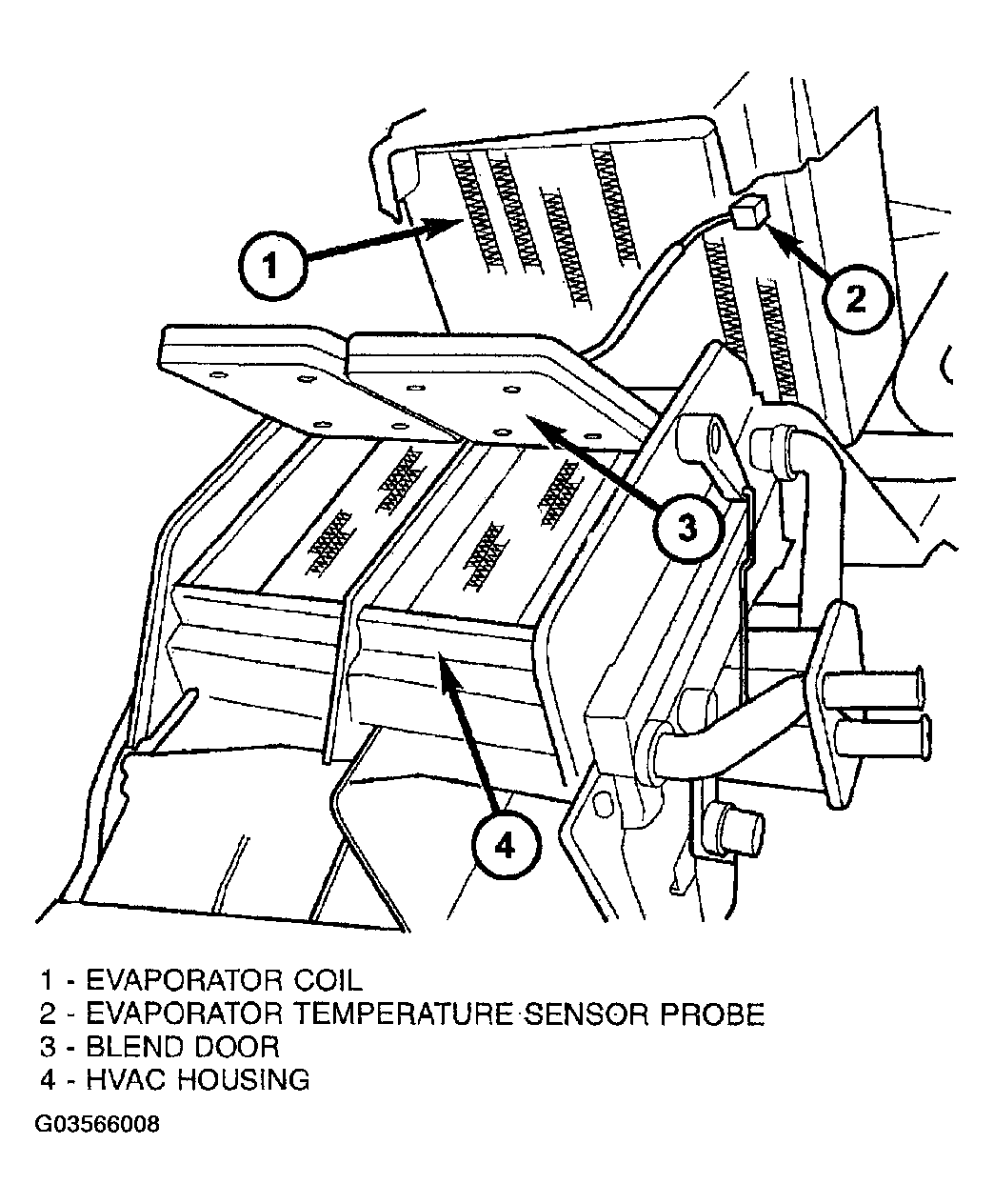

    Fig 2: Removing Evaporator Temperature Sensor Probe
    G03566008Courtesy of DAIMLERCHRYSLER CORP.
