A/C Compressor Clutch Relay: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the cover from the integrated power module (IPM) (Fig 1).
  3. Refer to the fuse and relay layout label on the IPM cover for compressor clutch relay identification and location.
  4. Remove the A/C compressor clutch relay from the IPM.

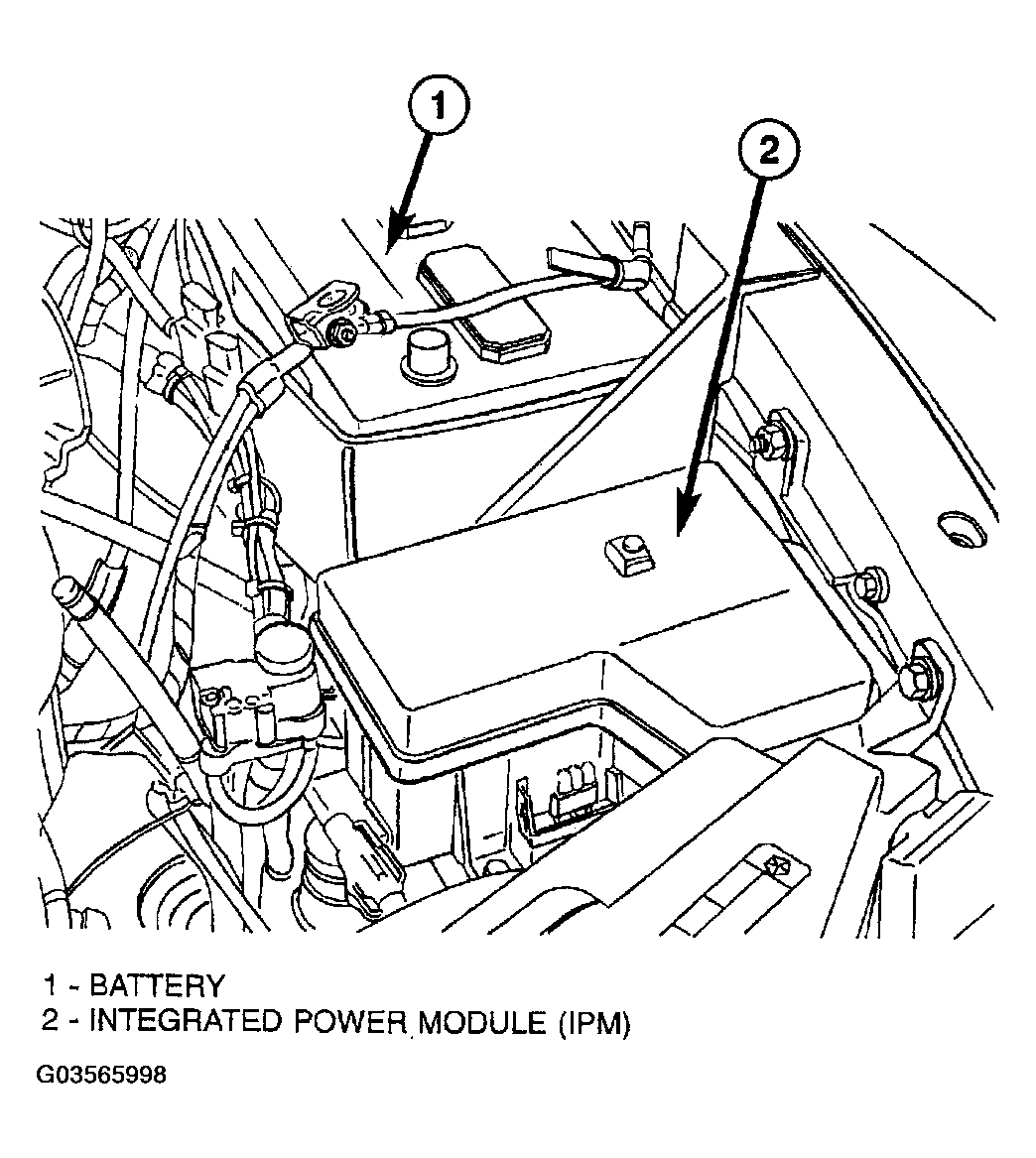

    Fig 1: Identifying Integrated Power Module (IPM)
    G03565998Courtesy of DAIMLERCHRYSLER CORP.
