INDEX
DESCRIPTION
FIGURE
WINDSHIELD OPENING
4
DOOR OPENING - STANDARD CAB
5
DOOR OPENINGS - QUAD CAB
6
REAR WINDOW OPENING
7
ENGINE COMPARTMENT/FRONT STRUCTURE
8

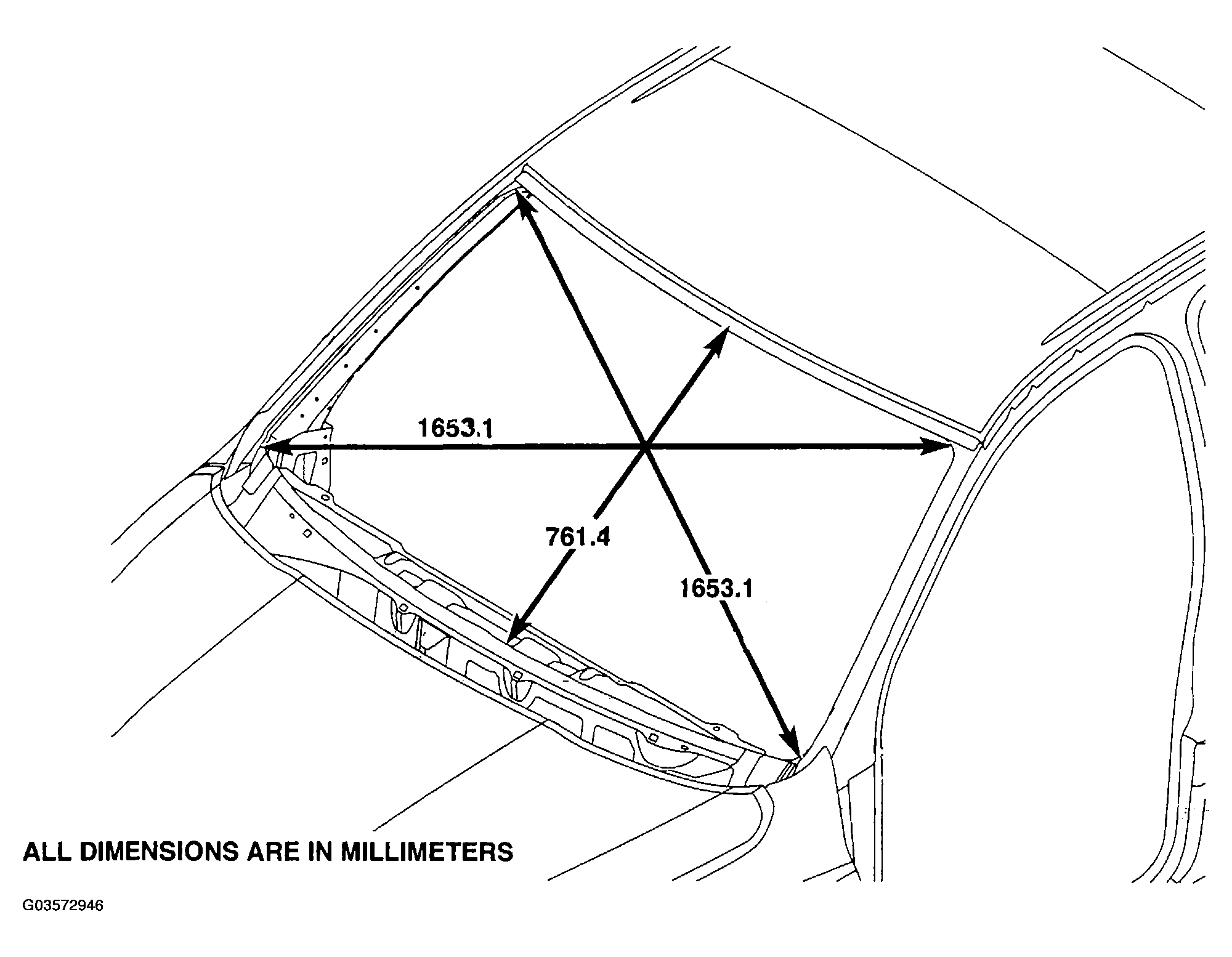

Fig 1: Identifying Dimensions of Windshield Opening
Courtesy of DAIMLERCHRYSLER CORP.

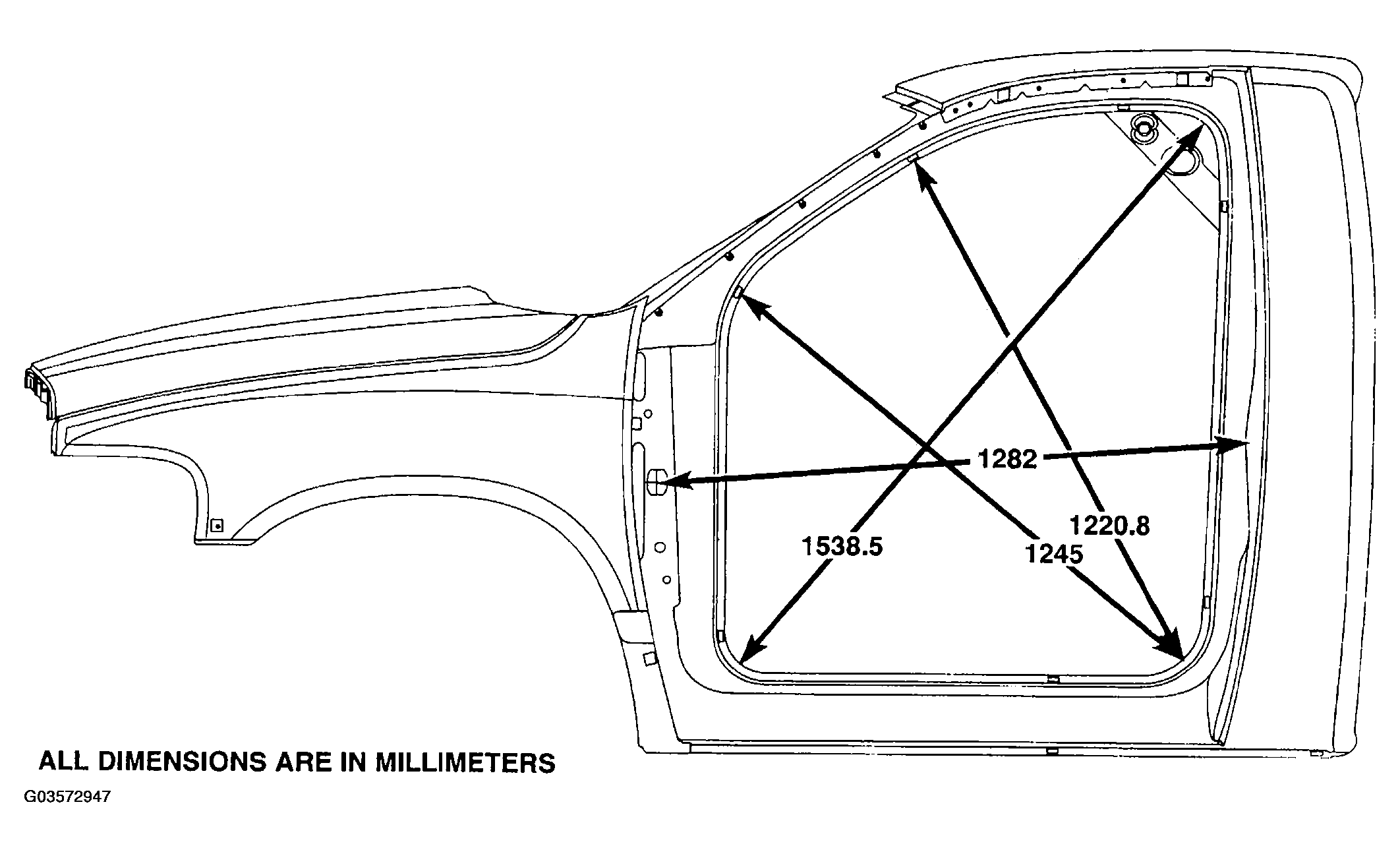

Fig 2: Identifying Dimensions Of Door Opening - Standard Cab
Courtesy of DAIMLERCHRYSLER CORP.

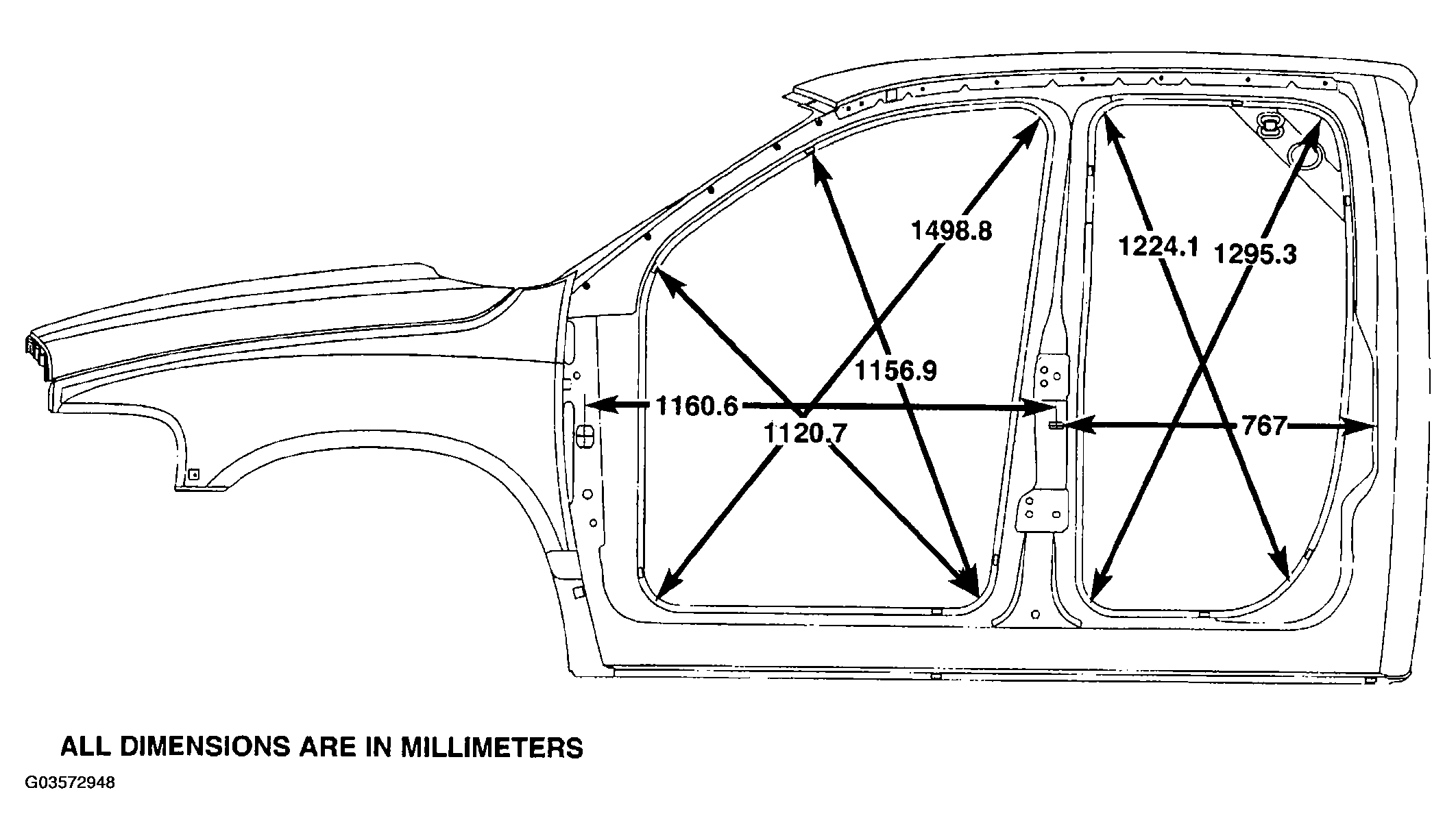

Fig 3: Identifying Dimensions Of Door Openings - Quad Cab
Courtesy of DAIMLERCHRYSLER CORP.

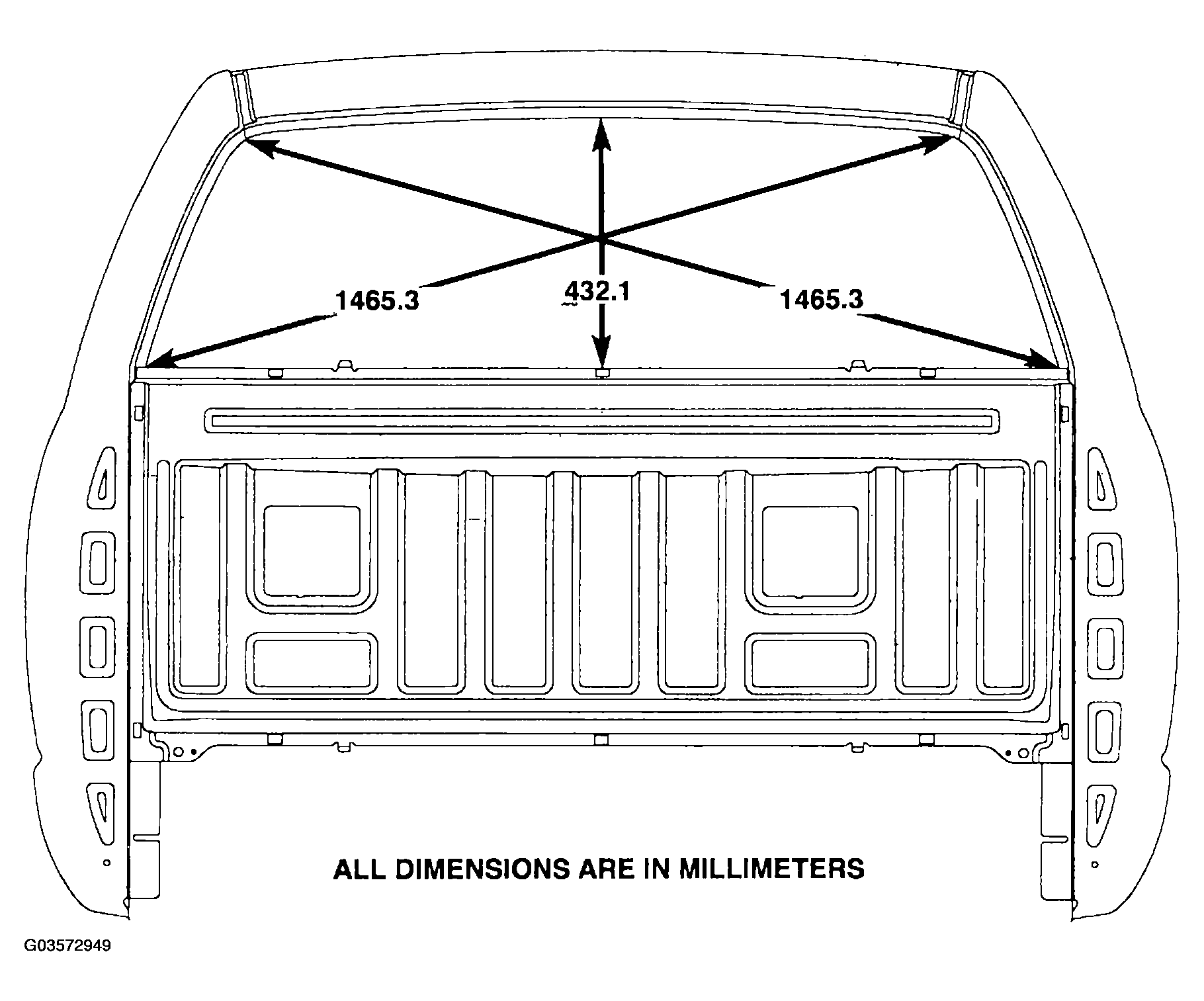

Fig 4: Identifying Dimensions Of Rear Window Opening
Courtesy of DAIMLERCHRYSLER CORP.

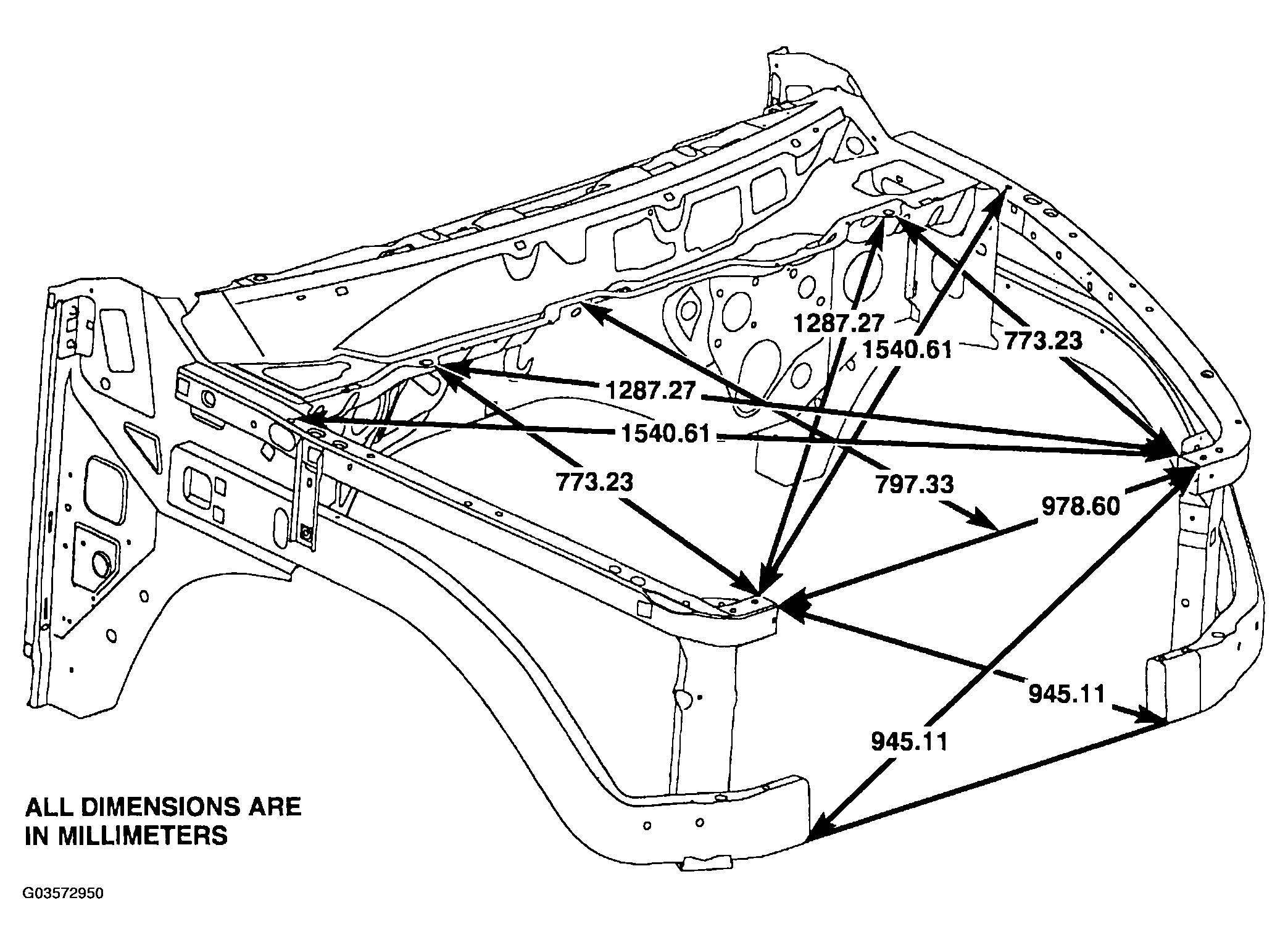

Fig 5: Identifying Dimensions Of Engine Compartment/Front Structure
