Rear View Mirror: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped, disconnect mirror harness connector.

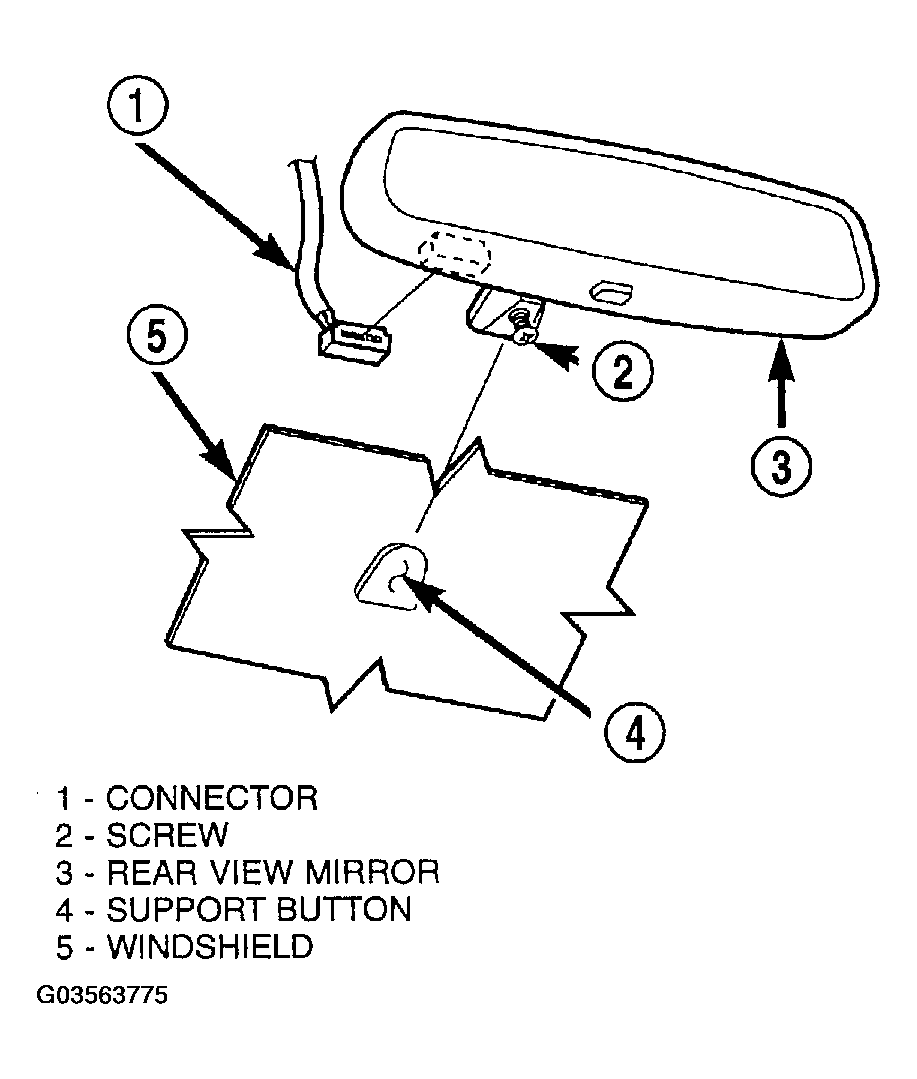

  2. Loosen the mirror base setscrew (Figure ).
  3. Slide the mirror base upward and off the bracket.
