Load Floor Support Cylinder: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the support cylinder with the thin end down.
  2. Install the retaining pins and clips.

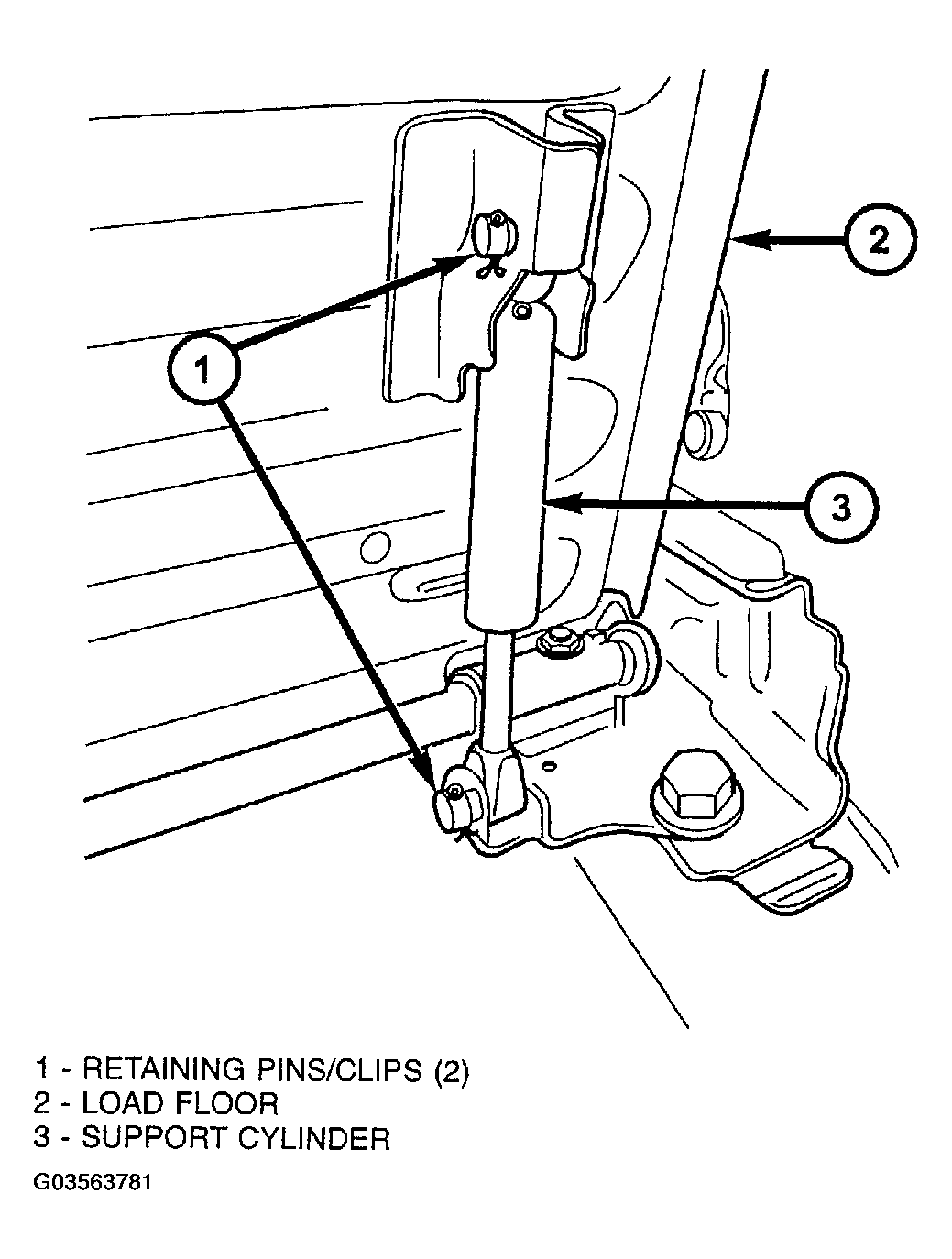

    Fig 1: Installing Load Floor Support Cylinder
    G03563781Courtesy of DAIMLERCHRYSLER CORP.
