Side View Mirror: Installation
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

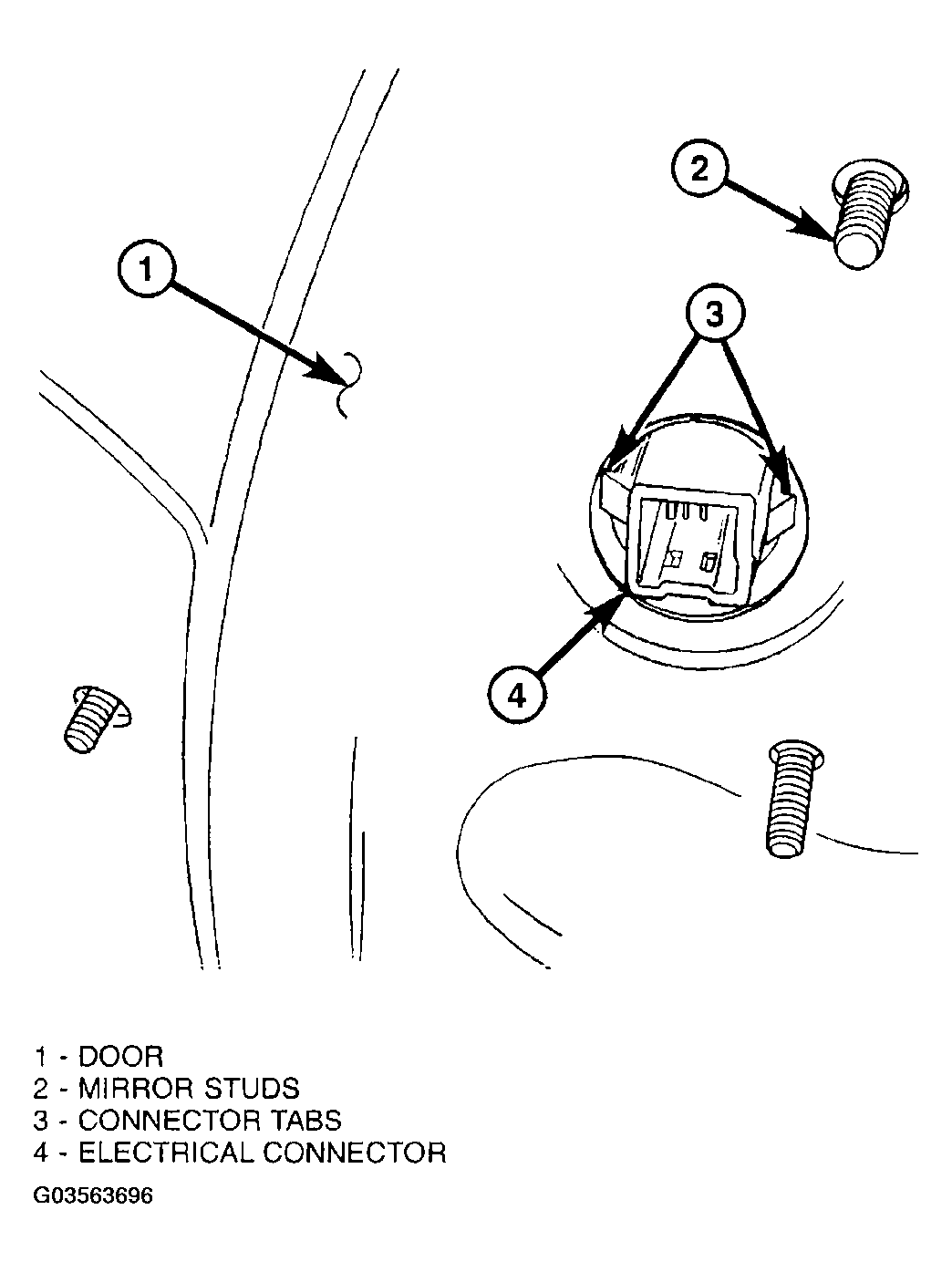

- Install the mirror onto the door and engage the electrical connector tabs. (Figure )
- Install the nuts and tighten to 7 N.m (60 in. lbs.).
- Install the door trim panel. (Refer to TRIM PANEL )
