Intake Air Temperature Sensor/Map Sensor: Removal
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

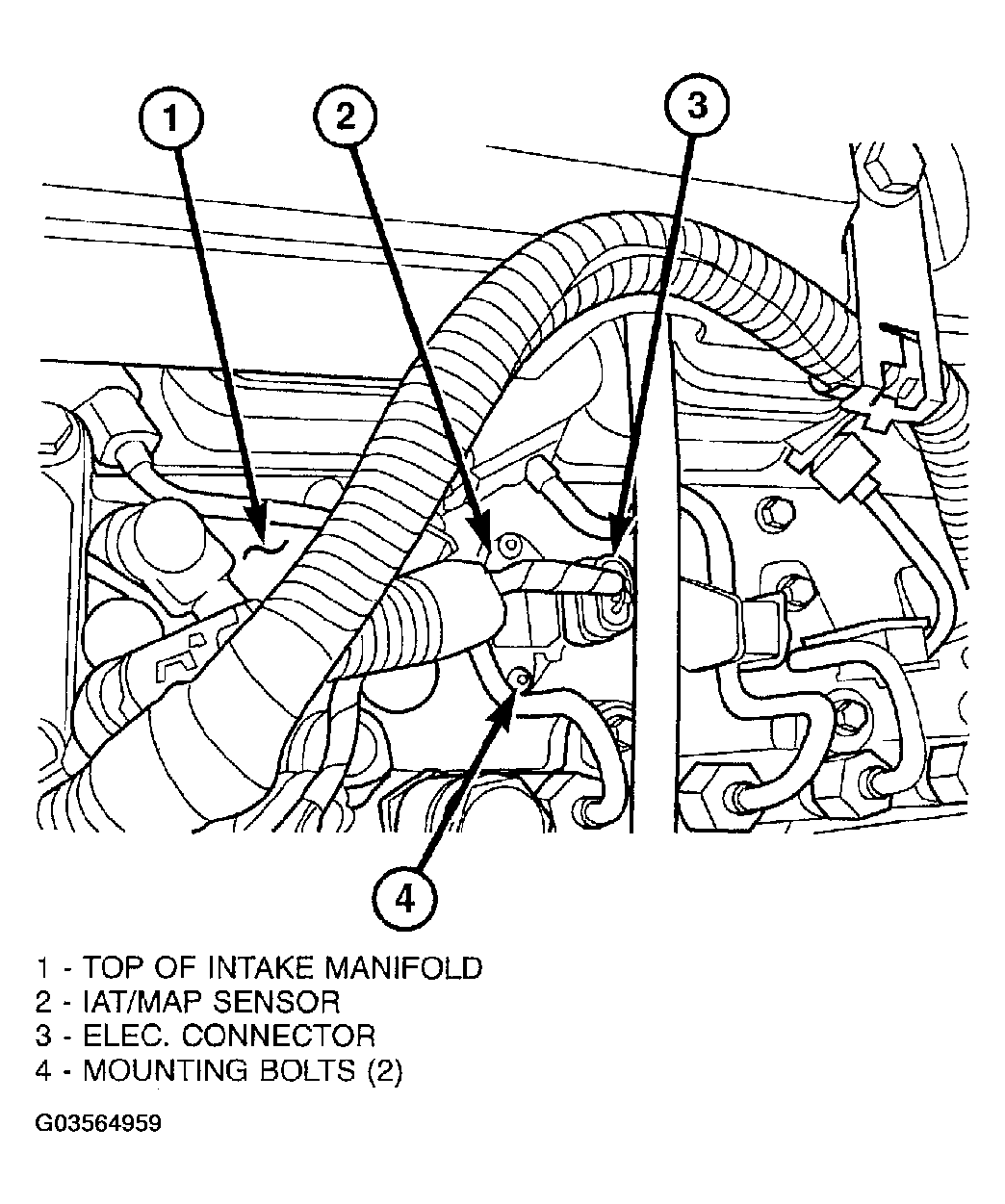

The combination, dual function Intake Manifold Air Temperature Sensor/MAP (IAT/MAP) sensor is installed into the top of the intake manifold (Figure).
- Clean area around sensor.
- Disconnect electrical connector from IAT/MAP sensor.
- Remove two T-15 Torx headed screws.
- Remove sensor from intake manifold.

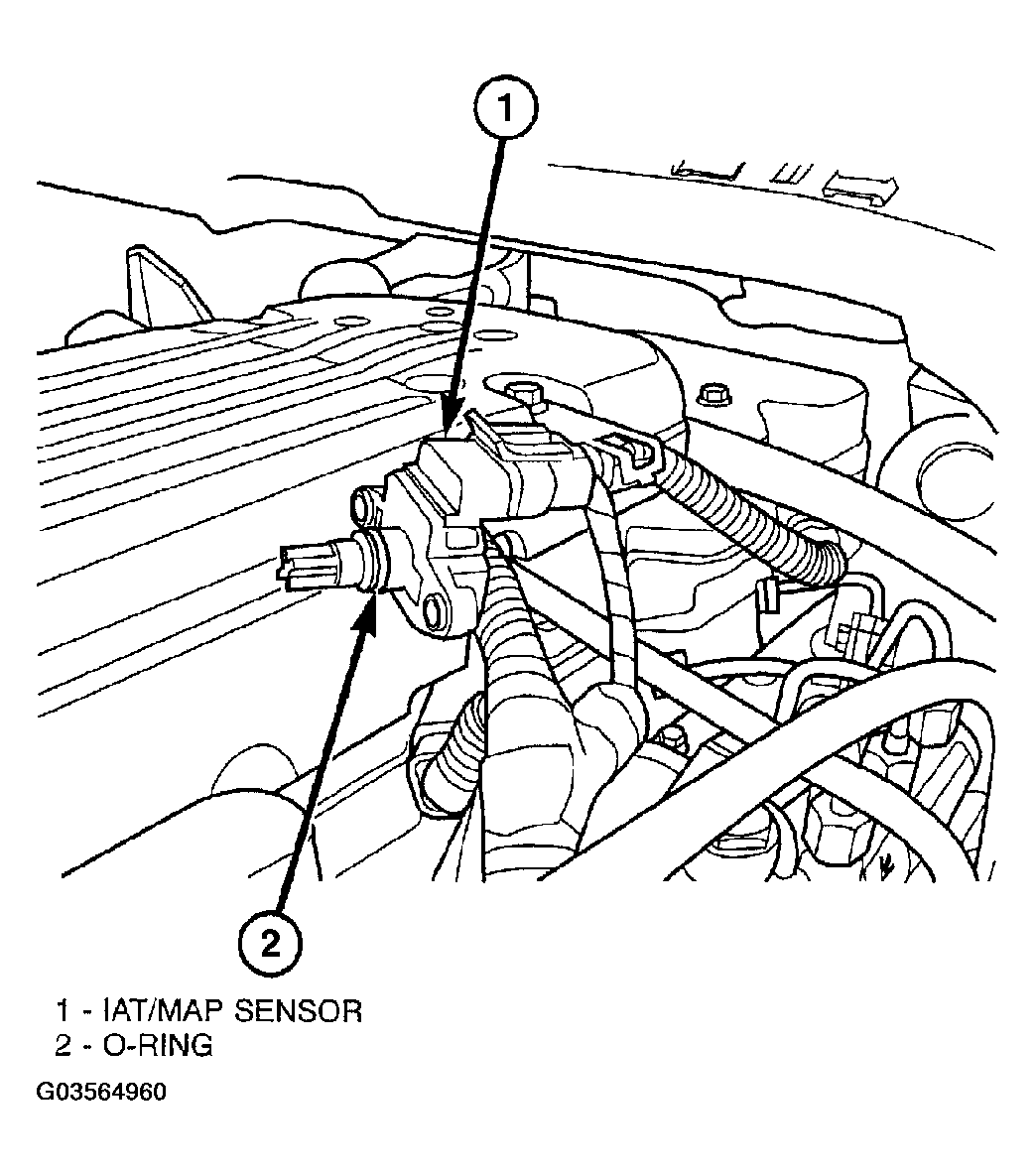

- Check condition of sensor o-ring (Figure).
