Crankshaft Position Sensor: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position and install CKP sensor to engine.
  2. Install 1 sensor mounting bolt and tighten to 9 N.m (80 in. lbs.) torque.

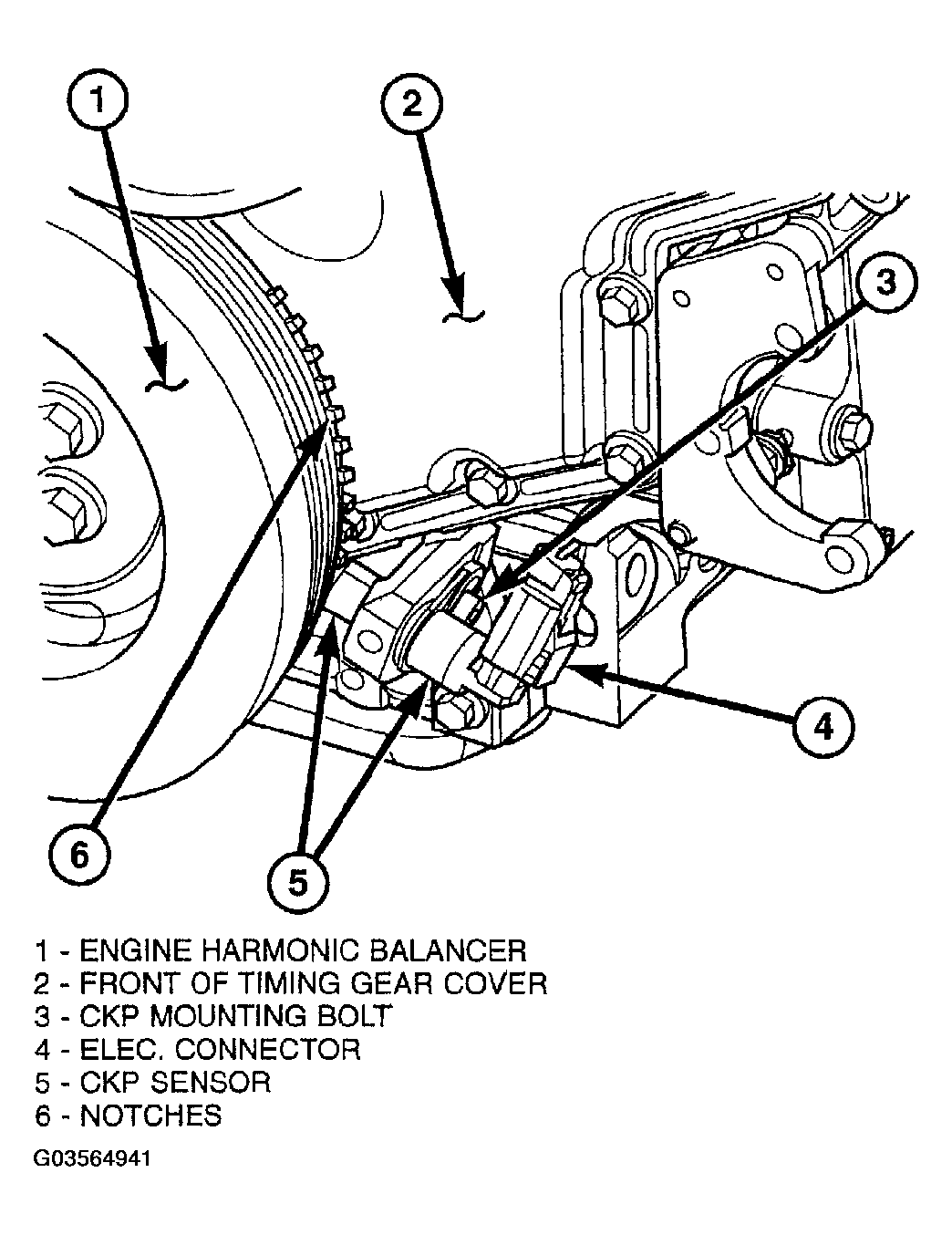

  3. Install electrical connector to CKP sensor (Figure).
