Water In Fuel Sensor: Description

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

The Water-In-Fuel (WIF) sensor is located on the side of the fuel filter/water separator canister (Fig 1).

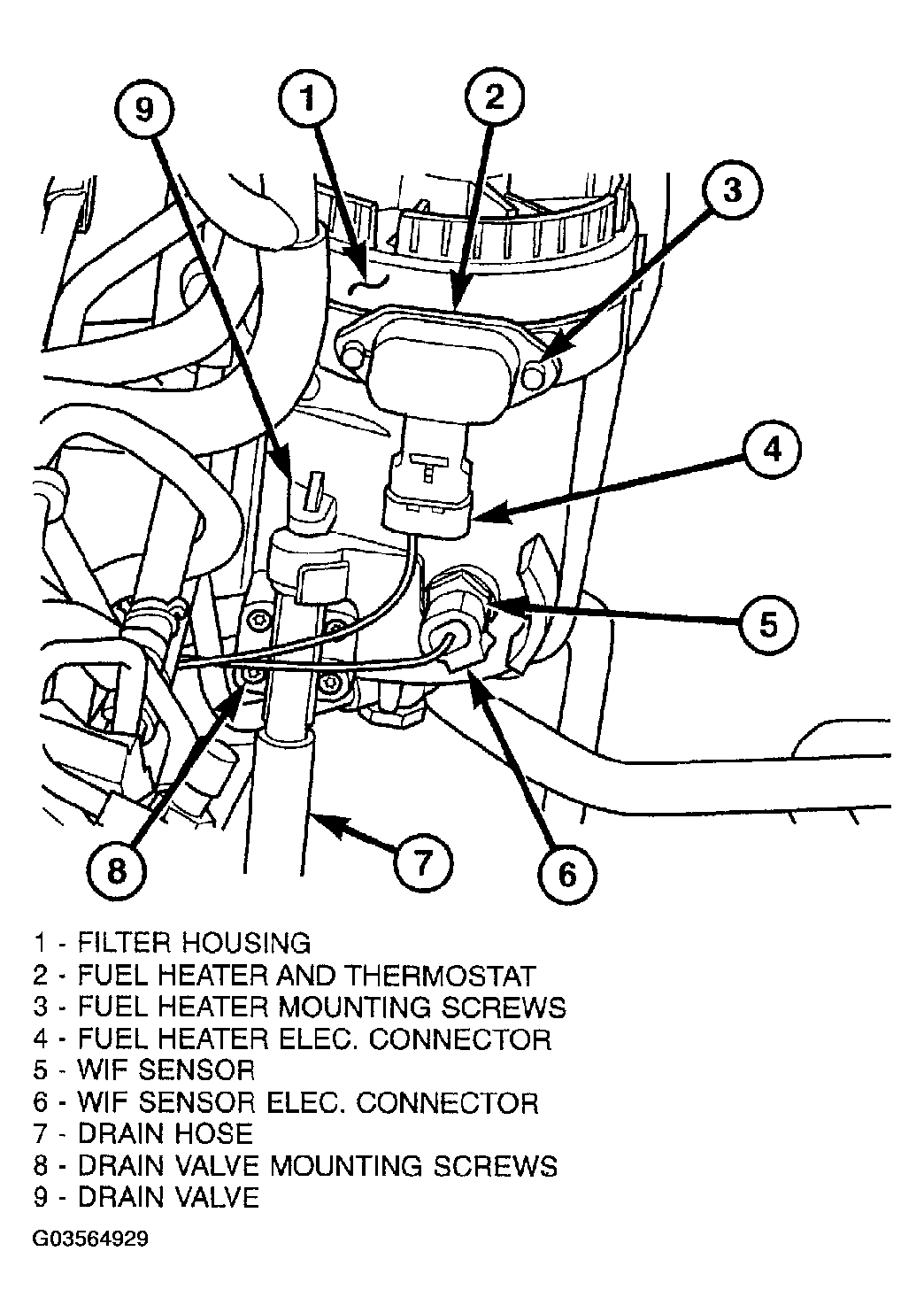

Fig 1: Identifying Filter Housing Location
G03564929Courtesy of DAIMLERCHRYSLER CORP.
