Fuel Tank Module: Removal
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Drain and remove fuel tank. Refer to FUEL TANK .
- Thoroughly clean area around tank module at top of tank.

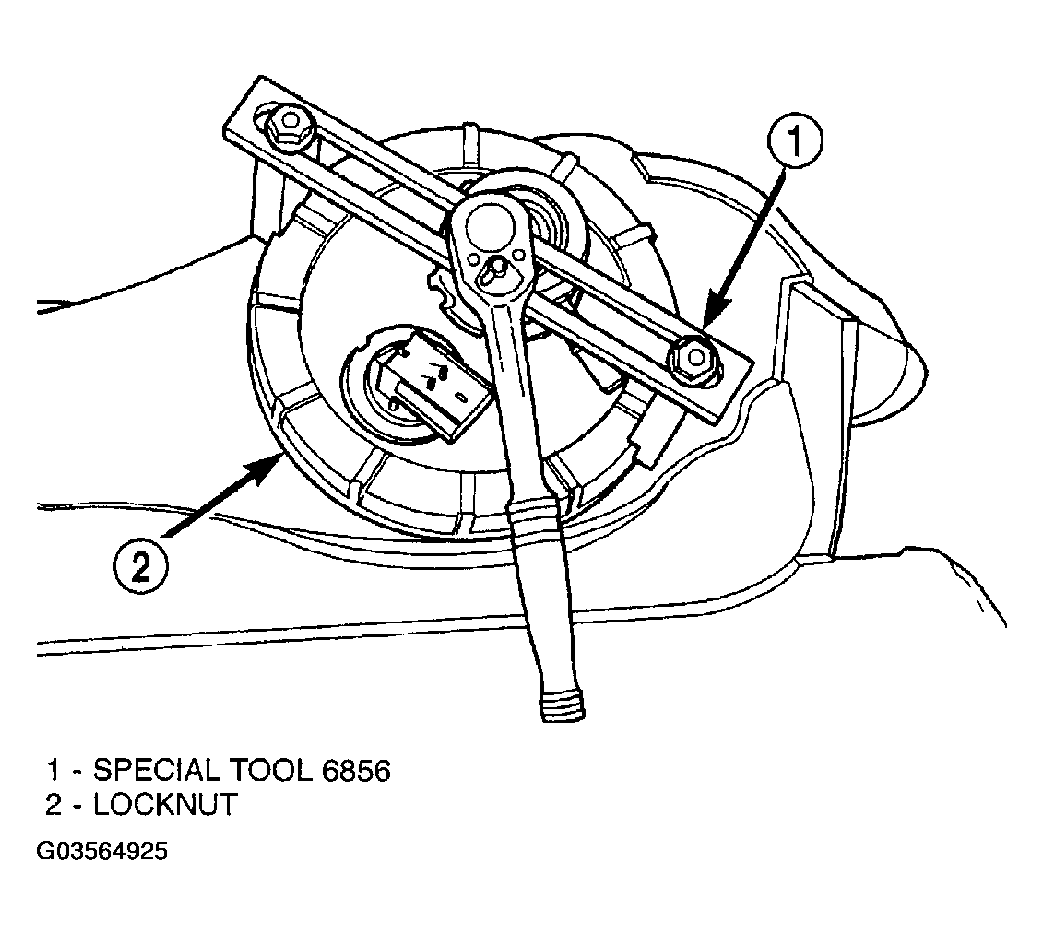

- The plastic fuel tank module locknut is threaded onto fuel tank. Install Special Tool 6856 to locknut and remove locknut (Fig 1). The fuel tank module will spring up when locknut is removed.
- Remove module from fuel tank.
