Fuel Pressure Sensor: Removal
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

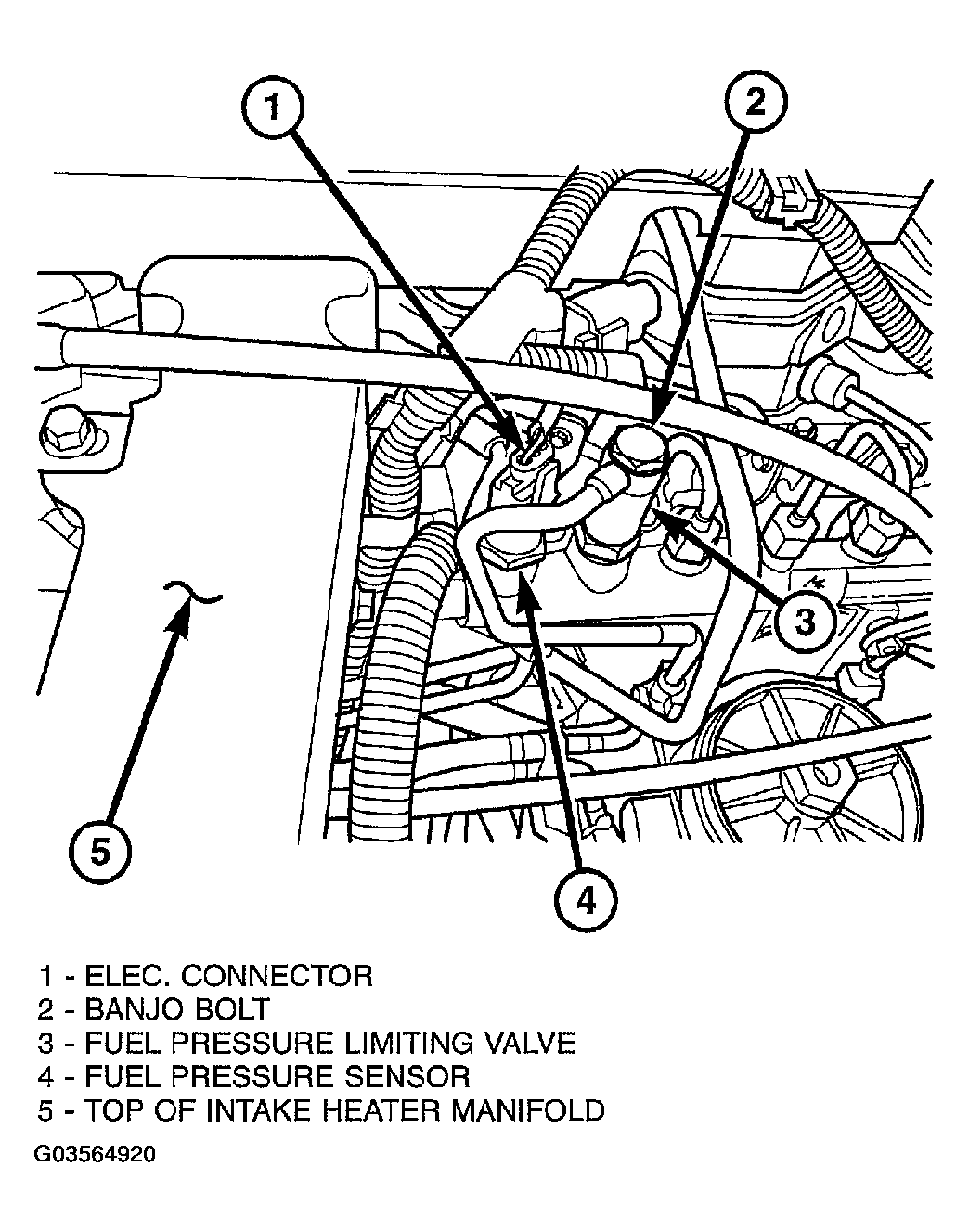

The fuel pressure sensor is mounted vertically near the top/center of the fuel rail (Fig 1).
- Disconnect electrical connector at sensor.
- Remove sensor from fuel rail.
- Inspect sensor sealing surface.
