Cascade Overflow Valve: Description

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

The cascade overflow valve is located on the top/rear side of the fuel injection pump (Fig 1).

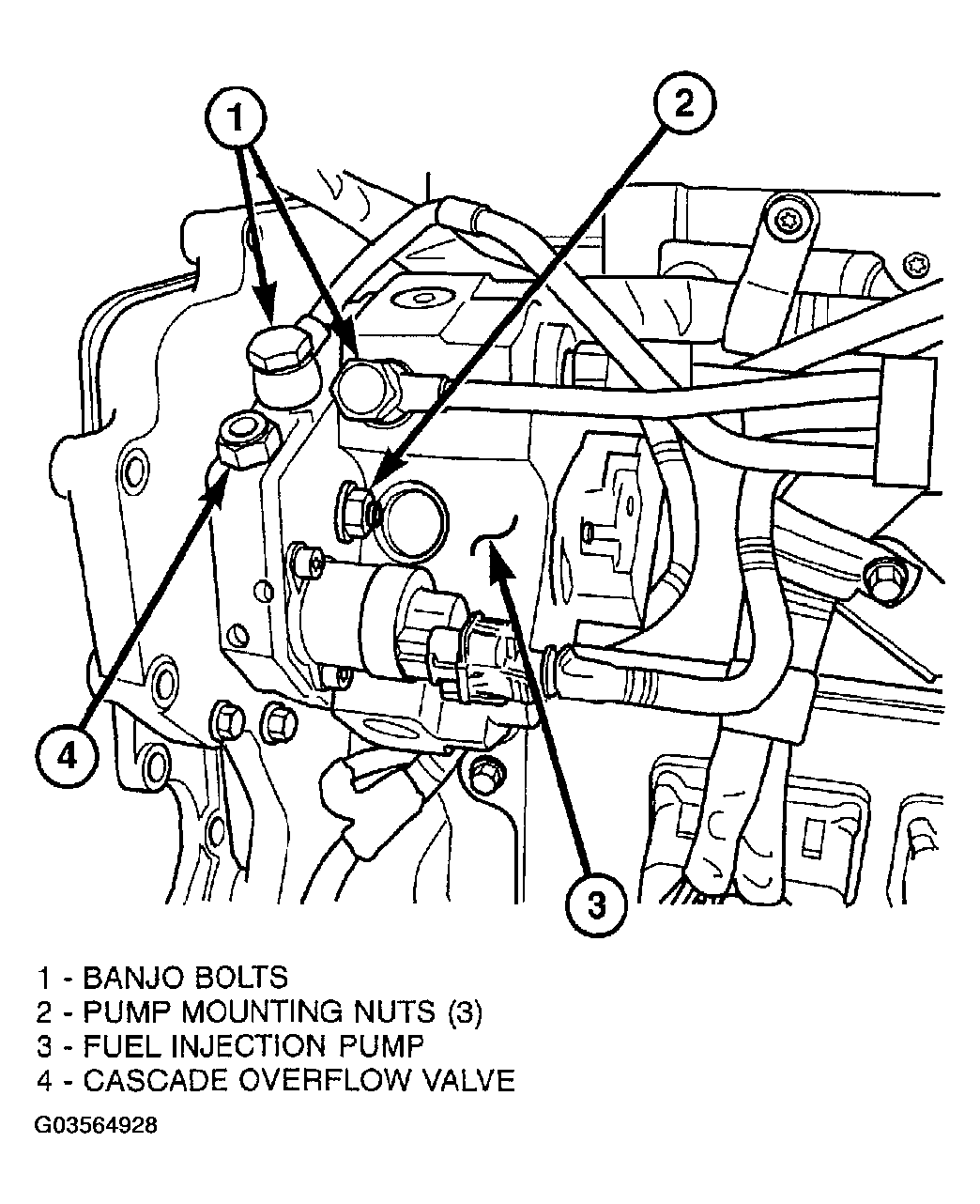

Fig 1: Identifying Overflow Valve Location
G03564928Courtesy of DAIMLERCHRYSLER CORP.
