4.7L V-8
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

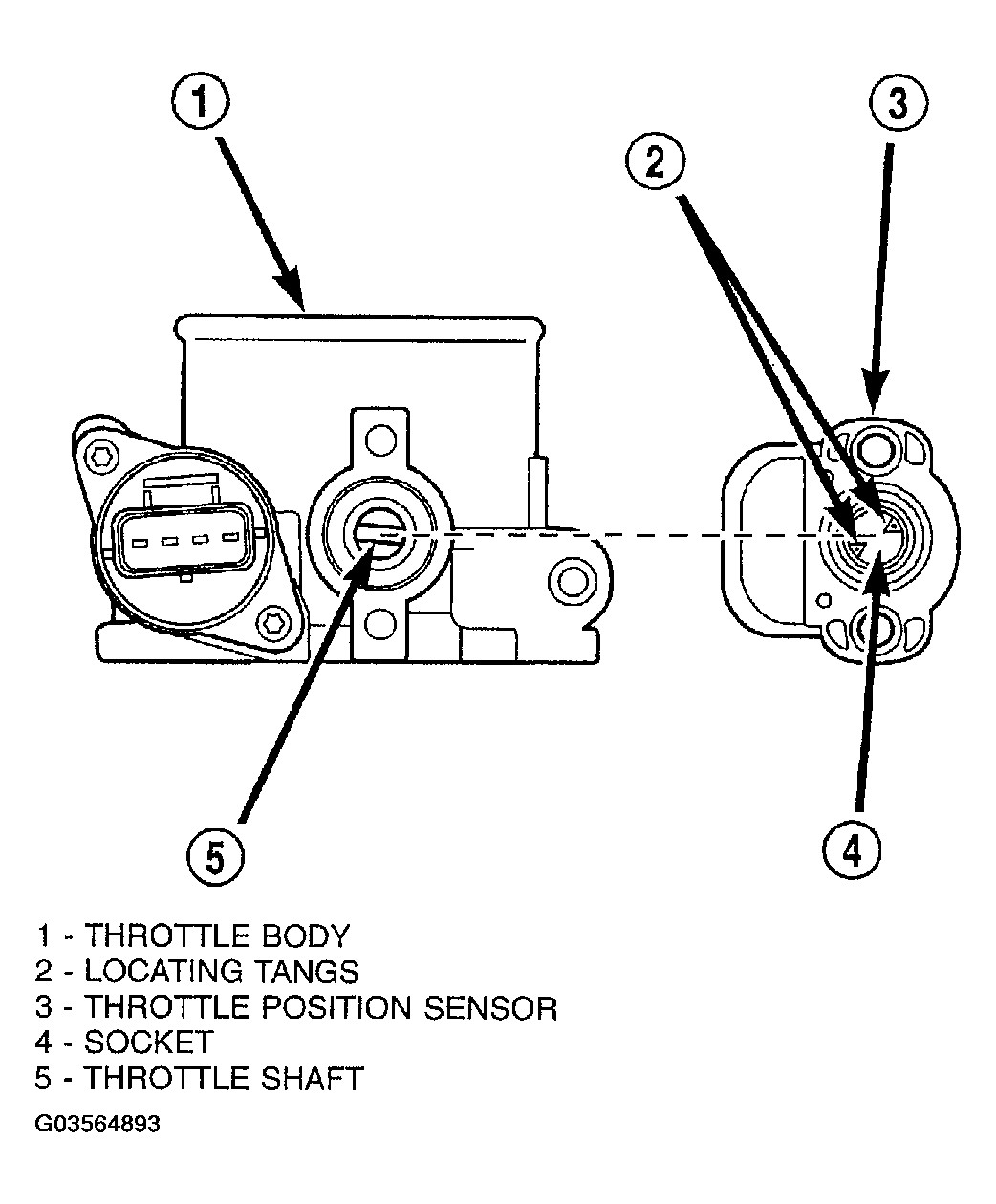

The throttle shaft end of throttle body slides into a socket in TPS (Fig 1). The TPS must be installed so that it can be rotated a few degrees. If sensor will not rotate, install sensor with throttle shaft on other side of socket tangs. The TPS will be under slight tension when rotated.

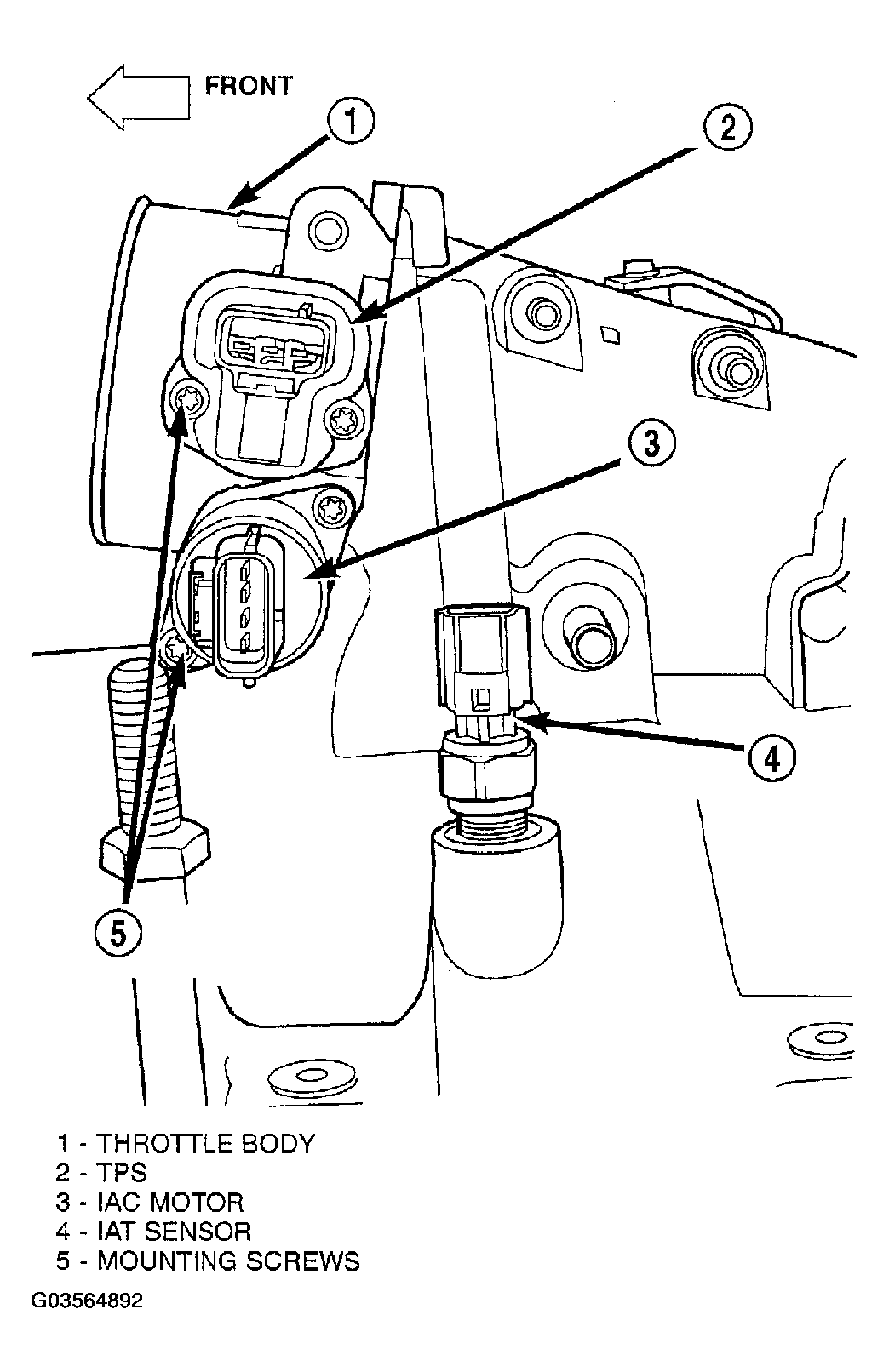

- Install TPS and two retaining bolts (Figure).
- Tighten bolts to 7 N.m (60 in. lbs.) torque.
- Manually operate throttle control lever by hand to check for any binding of TPS.
- Connect TPS electrical connector to TPS.
- Install air duct/air box to throttle body.
