4.7L V-8
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

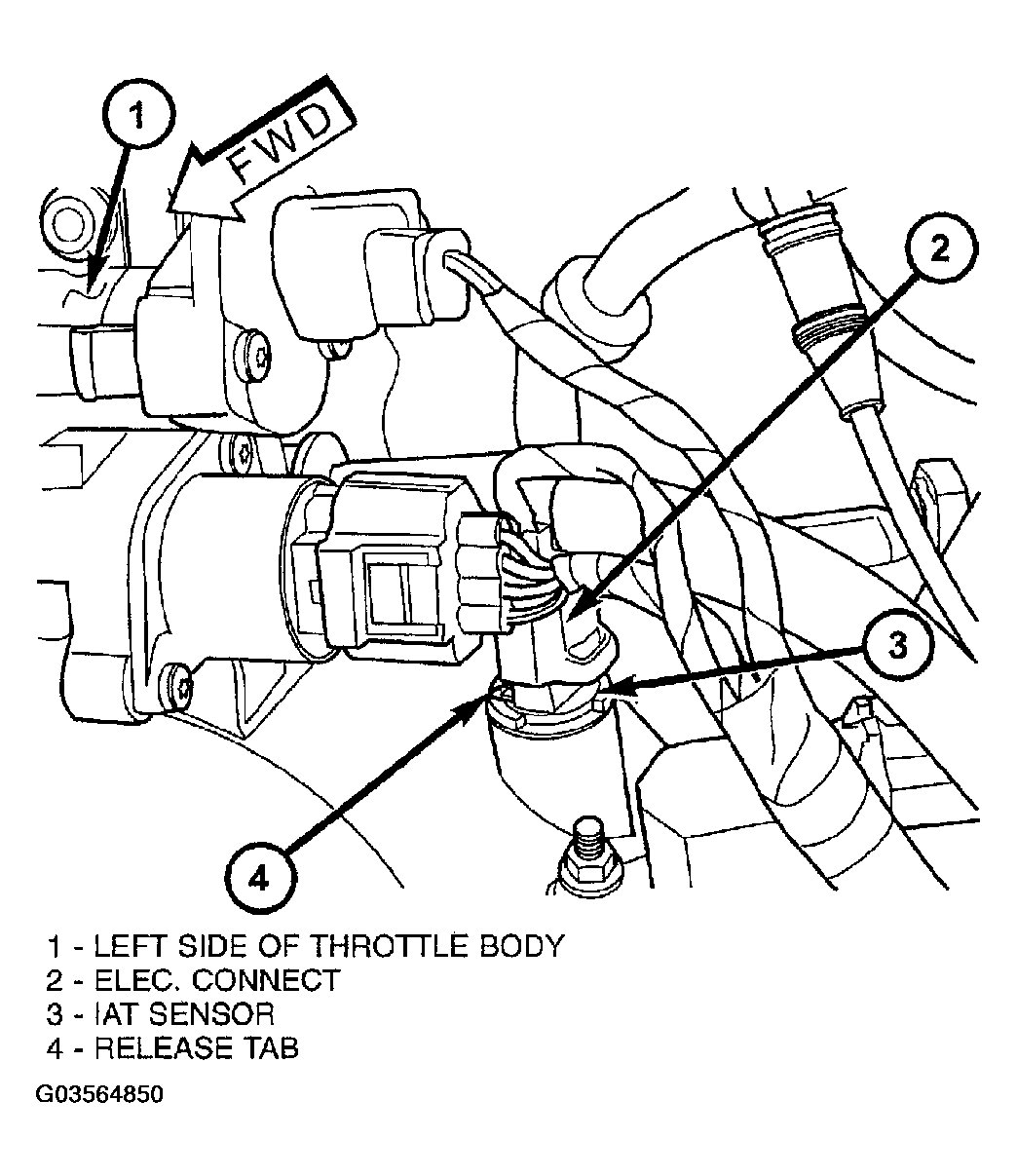

The intake manifold air temperature (IAT) sensor is installed into the left side of intake manifold plenum (Figure).
- Check condition of sensor O-ring.
- Clean sensor mounting hole in intake manifold.
- Position sensor into intake manifold and rotate clockwise until past release tab.
- Install electrical connector.
