Inlet Air Temperature Sensor: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to damage the thermistor pill when removing the sensor.
  1. Remove the battery cover and disconnect the negative battery cable.
  2. Disconnect the electrical connector from the inlet temperature sensor (Fig 1).
  3. Remove sensor from inlet hose.

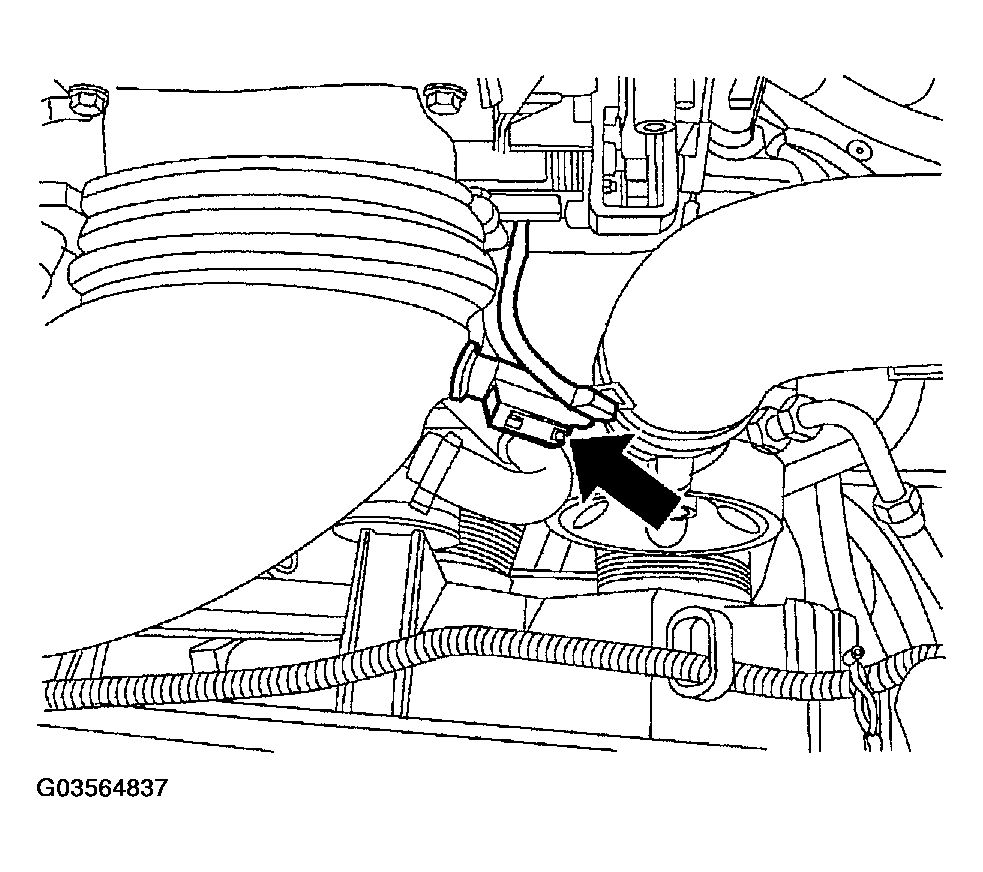

    Fig 1: Disconnecting Electrical Connector Inlet Air Temp Sensor
    G03564837Courtesy of DAIMLERCHRYSLER CORP.
