Section 135 (4.7L Engine (Service Information)): Springs-Valve: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the valve stem with clean engine oil and install the valve stem seal. Make sure the seal is fully seated and that the garter spring at the top of the seal is intact.
  2. Install the spring and the spring retainer (Fig 1).
  3. Using Special Tool 8387 Valve Spring Compressor, compress the spring and install the two valve spring retainer halves.

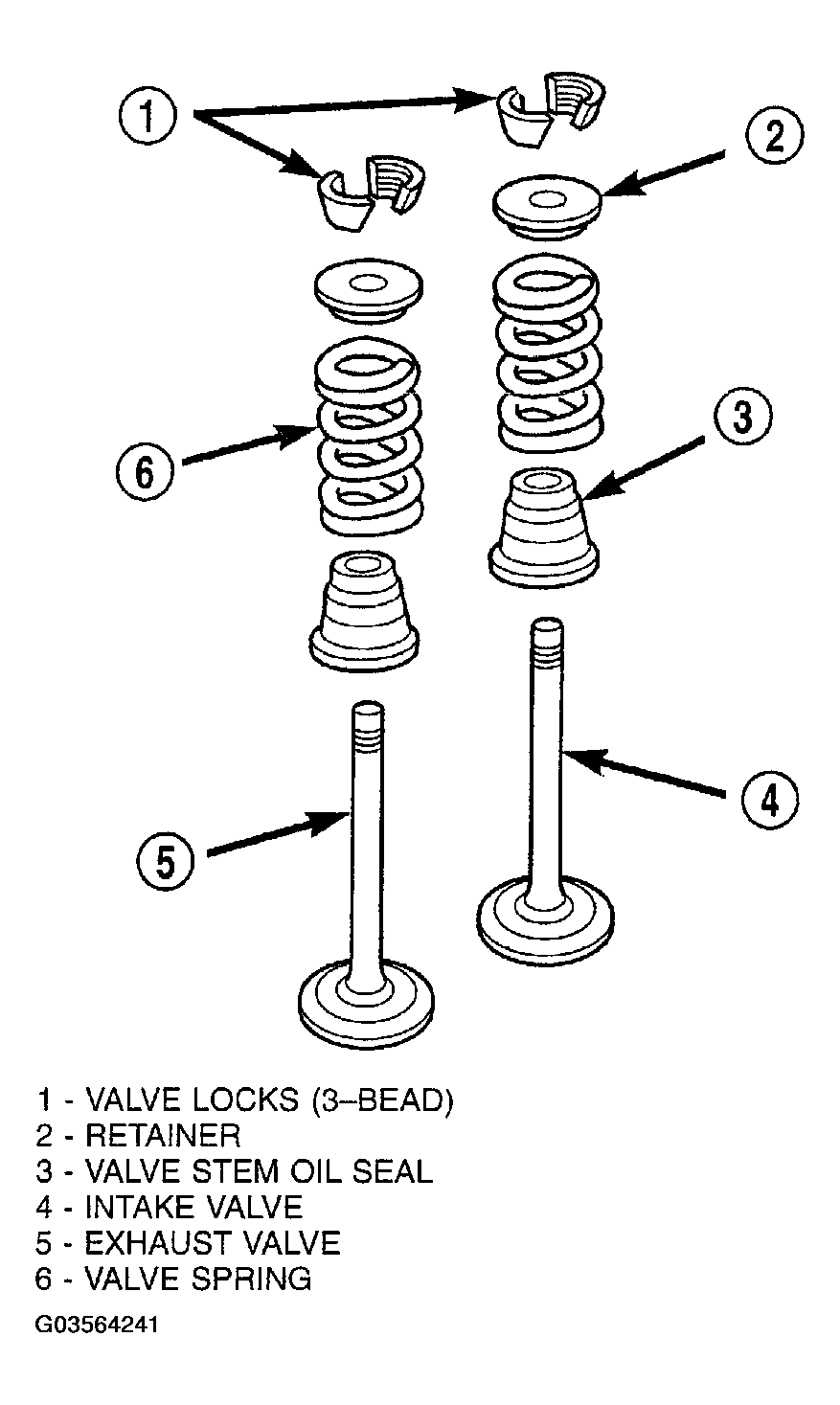

    Fig 1: Identifying Valve Locks And Retainer
    G03564241Courtesy of DAIMLERCHRYSLER CORP.
  4. Release the valve spring compressor and make sure the two spring retainer halves and the spring retainer are fully seated.

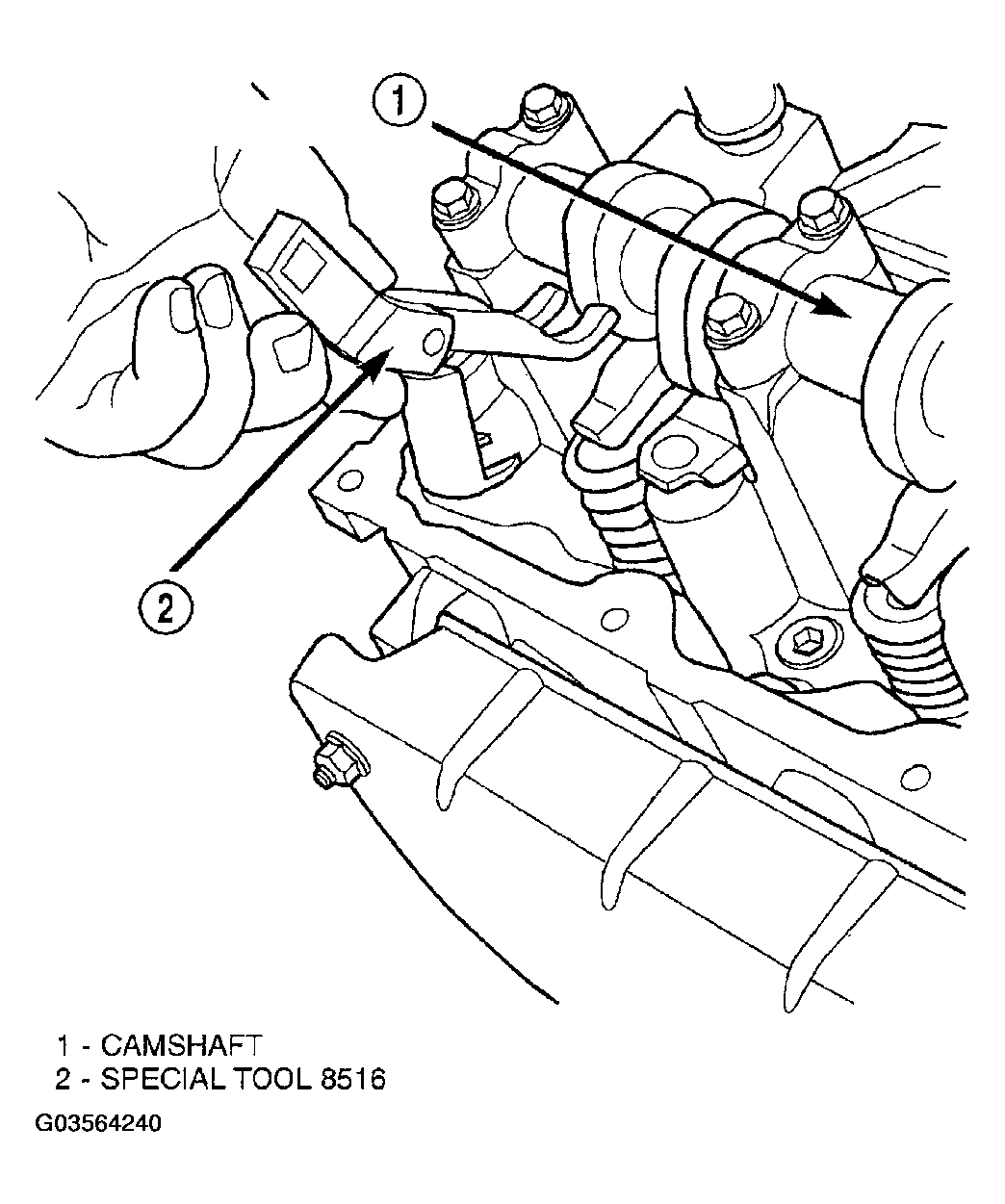

  5. Position the hydraulic lash adjusters and rocker arms (Figure).
  6. Install the cylinder head cover (Refer to INSTALLATION ).
