Pump-Engine Oil: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the oil pump onto the crankshaft and install one oil pump retaining bolts.
  2. Position the primary timing chain tensioner md install three retaining bolts.
  3. Tighten the oil pump and primary timing chain ensioner retaining bolts to 28 N.m (250 in. lbs.) in he sequence shown (Fig 1).

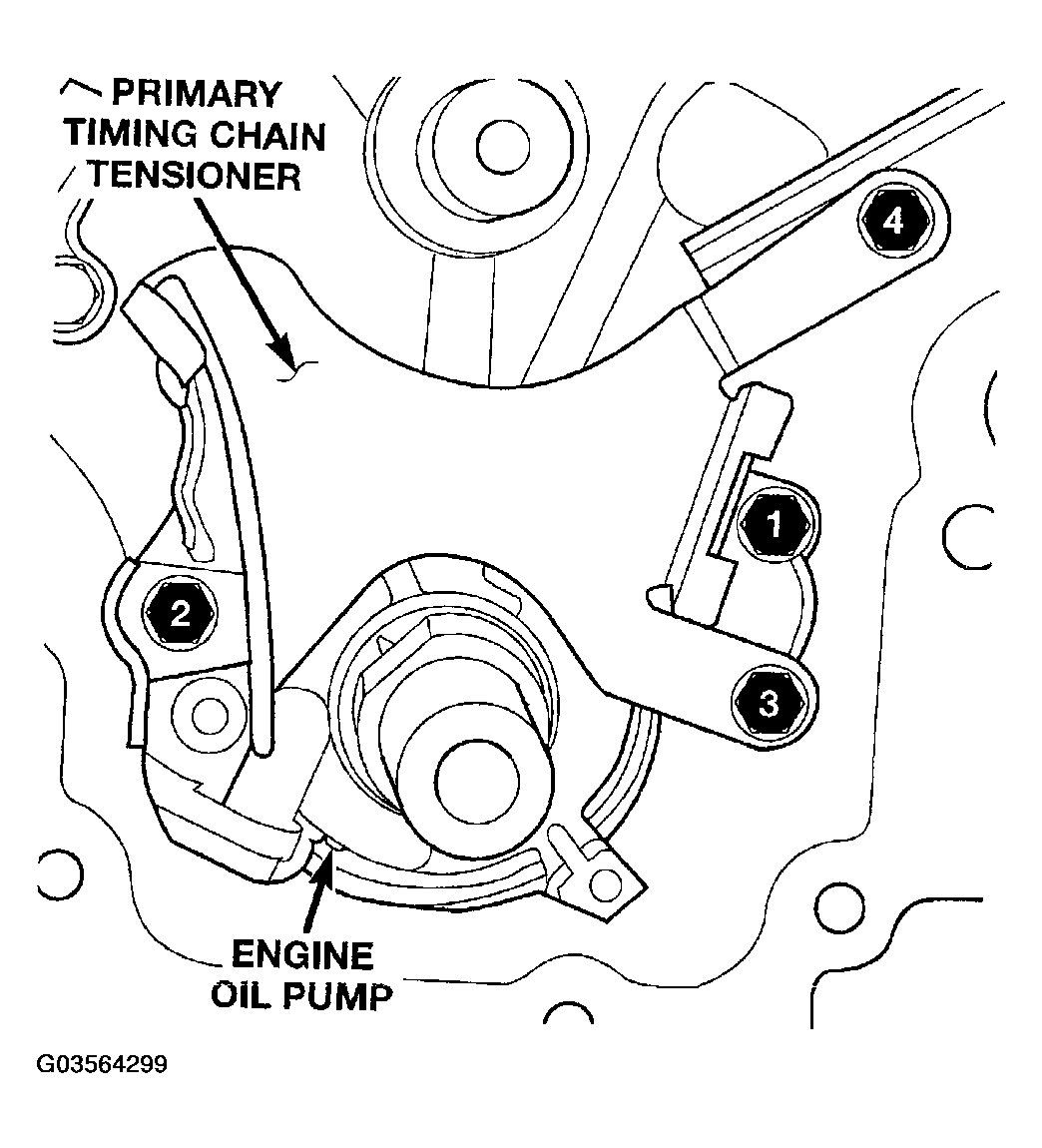

    Fig 1: Identifying Primary Timing Chain Tensioner
    G03564299Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the secondary timing chain tensioners md timing chains (Refer to INSTALLATION ).
  5. Install the timing chain cover (Refer to INSTALLATION ).
  6. Install the pick-up tube and oil pan (Refer to INSTALLATION ).
