Plate-Torque Converter Drive: Installation
WARNING: This page is about a different car, the 2004 Dodge Pickup. However, it is still accessible from the selected car via links, so may be relevant.
- Position the flexplate onto the crankshaft and install the bolts hand tight.

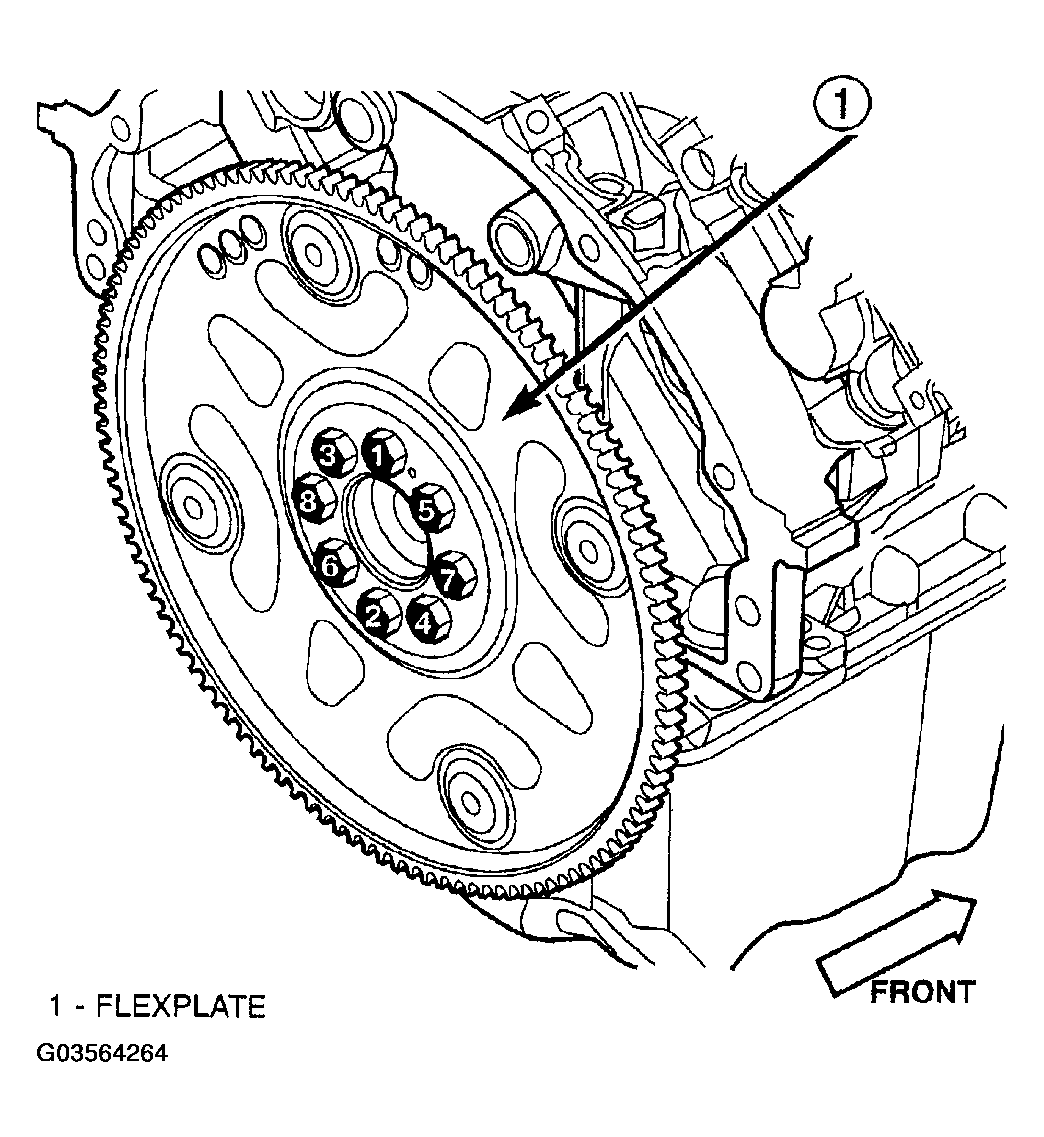

- Tighten the flexplate retaining bolts to 60 N.m (45 ft. lbs.) in the sequence shown (Fig 1).
- Install the transmission. (Refer to OVERHAUL - 45 RFE/545RFE ).
