Speed Control Switch-Right (Etc) Connector End View

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

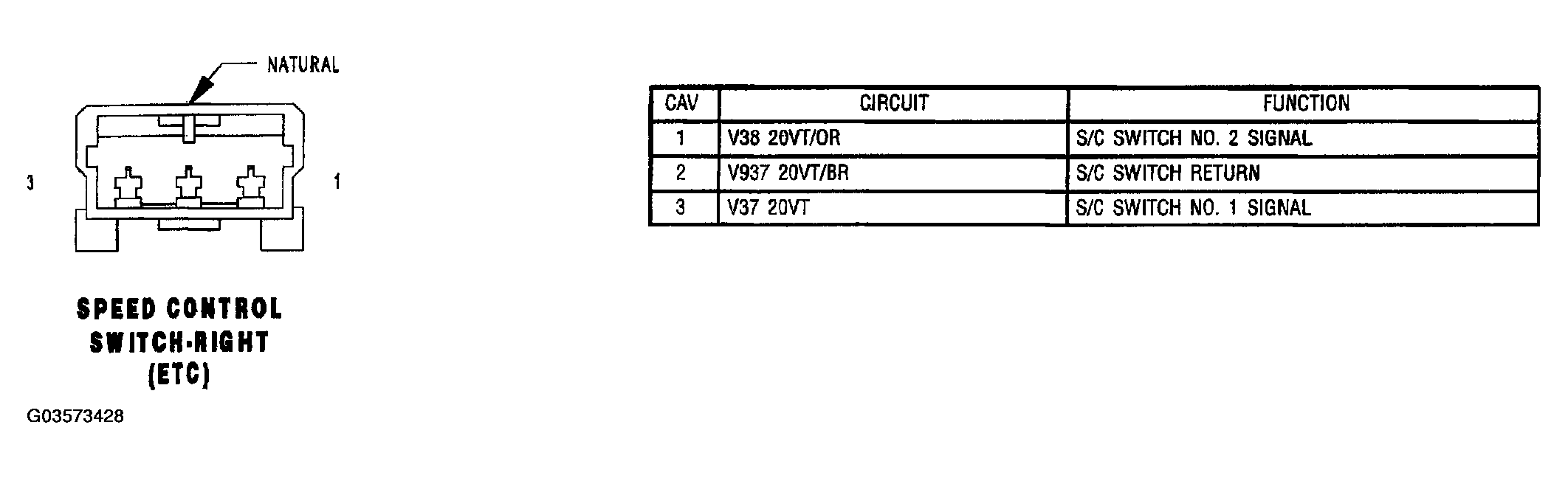

Fig 1: Right Speed Control Switch (ETC) Connector End View
G03573428Courtesy of DAIMLERCHRYSLER CORP.
