C306 Connector End View

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

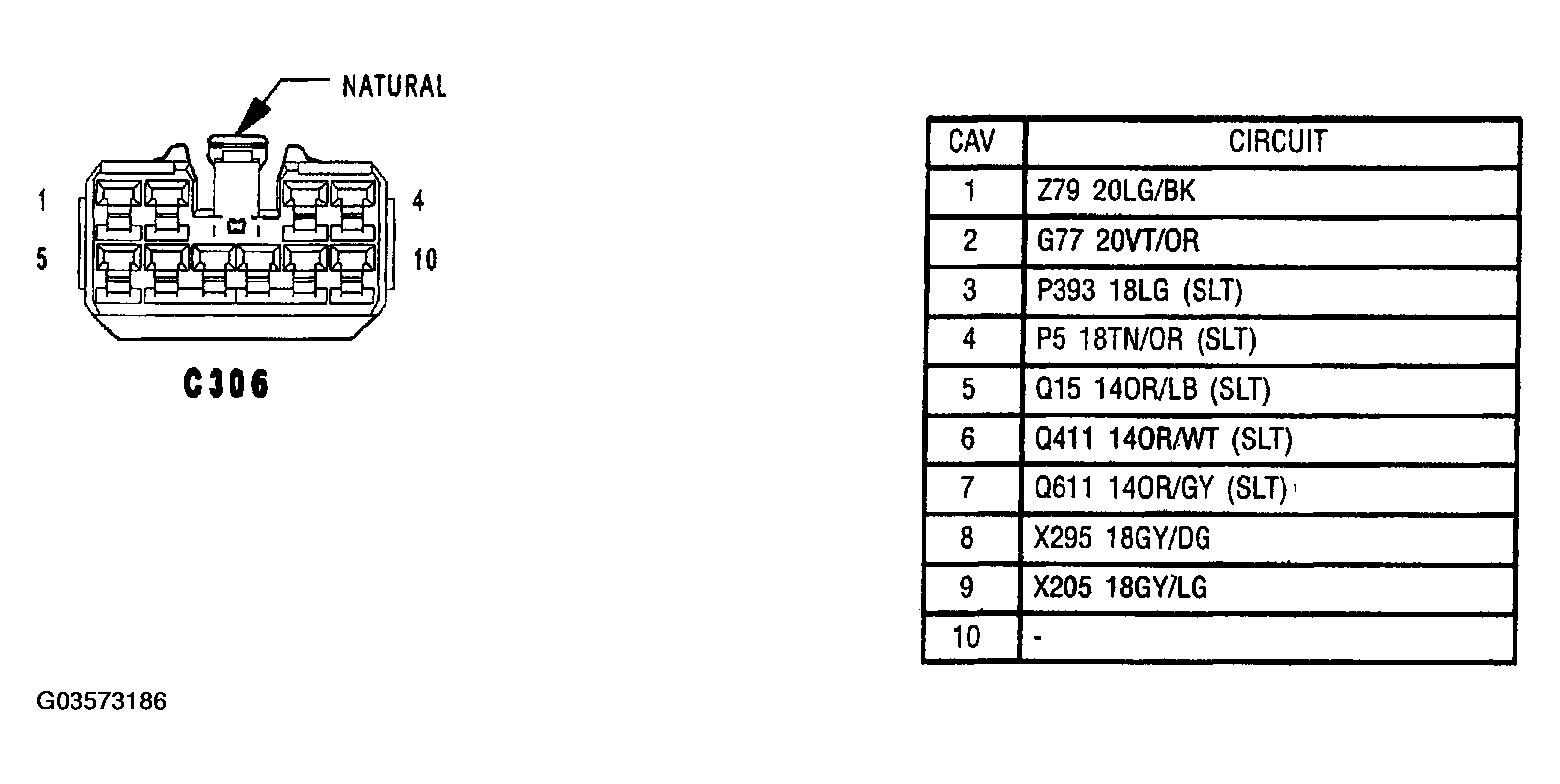

Fig 1: Rear Door Side Inline Connector End View (C306)

Courtesy of DAIMLERCHRYSLER CORP.

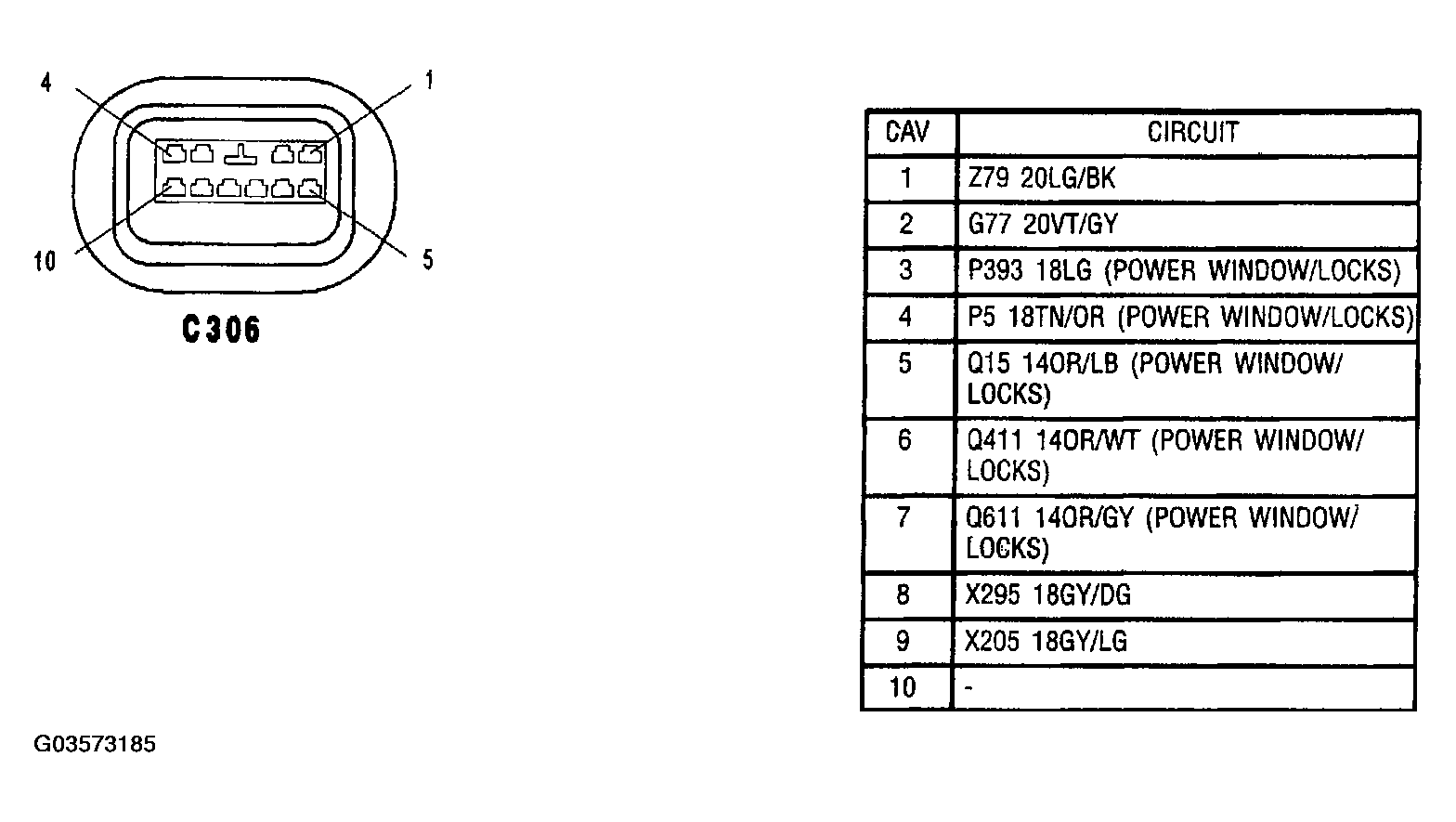

Fig 1: Body Side Inline Connector End View (C306)

Courtesy of DAIMLERCHRYSLER CORP.
