Wiper On/Off Relay: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper on/off relay to the proper receptacle in the Integrated Power Module (IPM) (Fig 1 ).
  2. Align the wiper on/off relay terminals with the terminal cavities in the IPM receptacle.
  3. Push firmly and evenly on the top of the wiper on/off relay until the terminals are fully seated in the terminal cavities in the IPM receptacle.
  4. Reinstall the cover onto the IPM.
  5. Reconnect the battery negative cable.

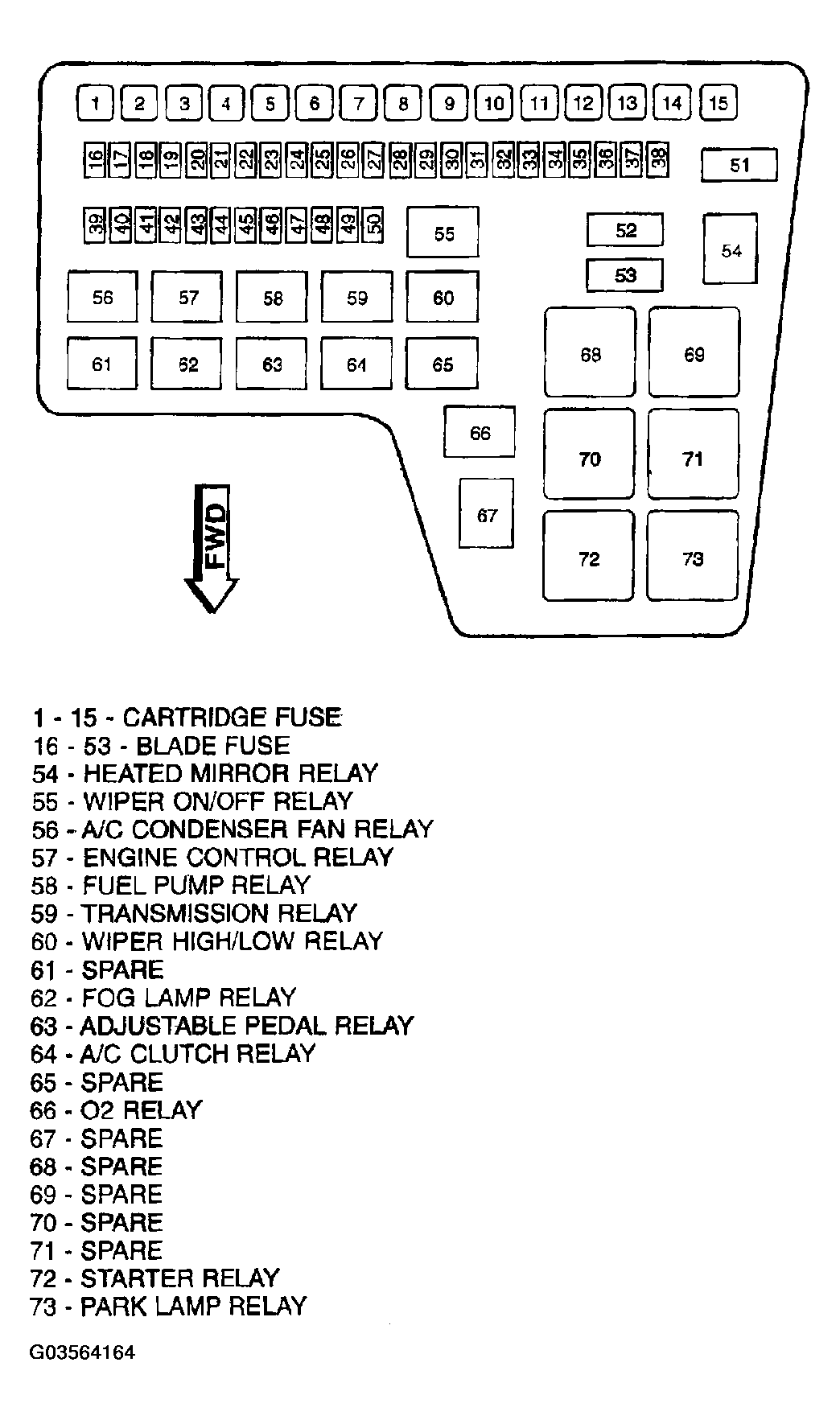

    Fig 1: Identifying Integrated Power Module
    G03564164Courtesy of DAIMLERCHRYSLER CORP.
