Section 130 (Speed Control): Reservoir-Vacuum: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

The vacuum reservoir is located in the engine compartment under the fresh air cowl grill panel (Fig 1).

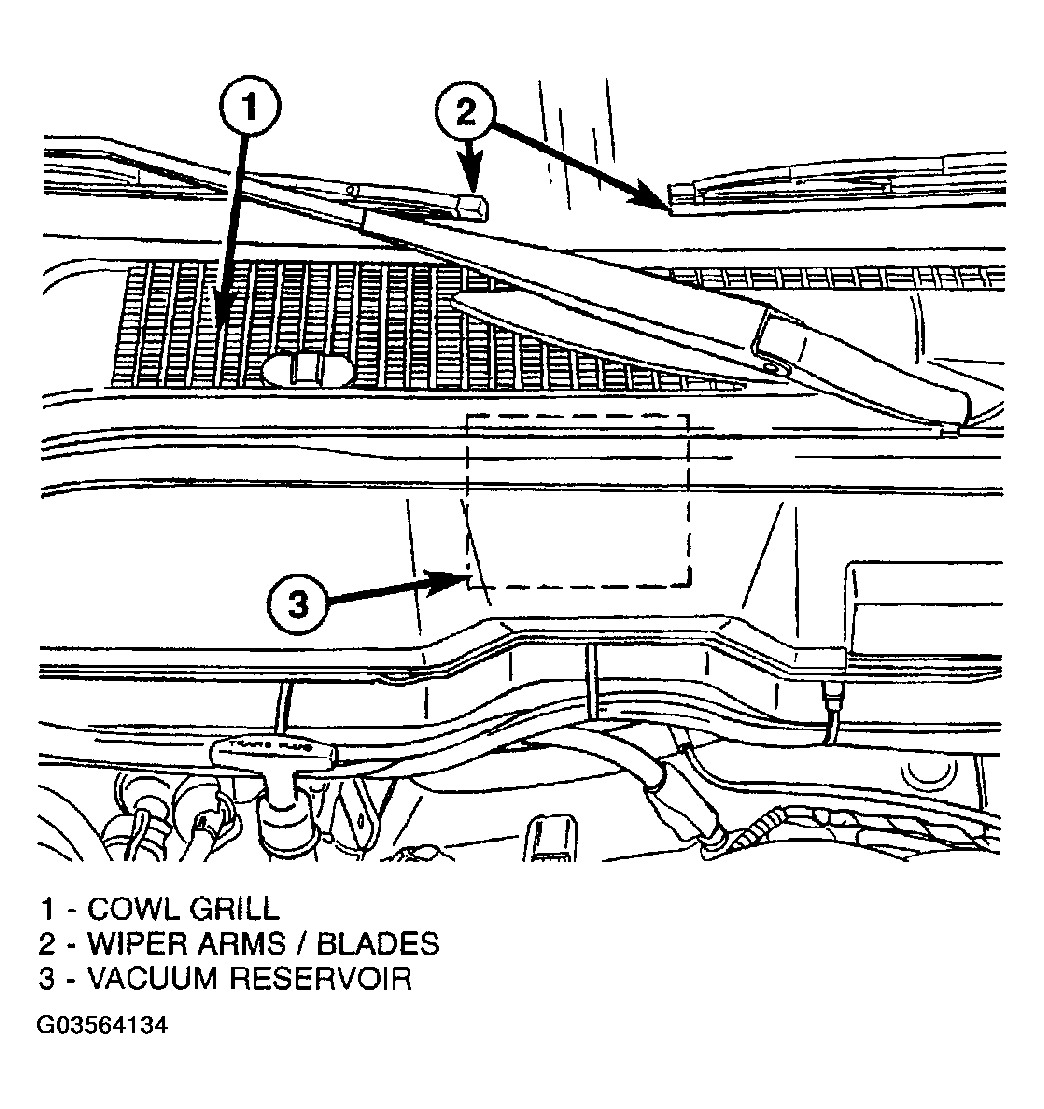

Fig 1: Identifying Vacuum Reservoir

Courtesy of DAIMLERCHRYSLER CORP.

Remove wiper blades and arms. Refer to WIPERS/WASHERS .
Remove fresh air cowl grill. Refer to COWL GRILLE .
Disconnect vacuum line at reservoir (Fig 2).

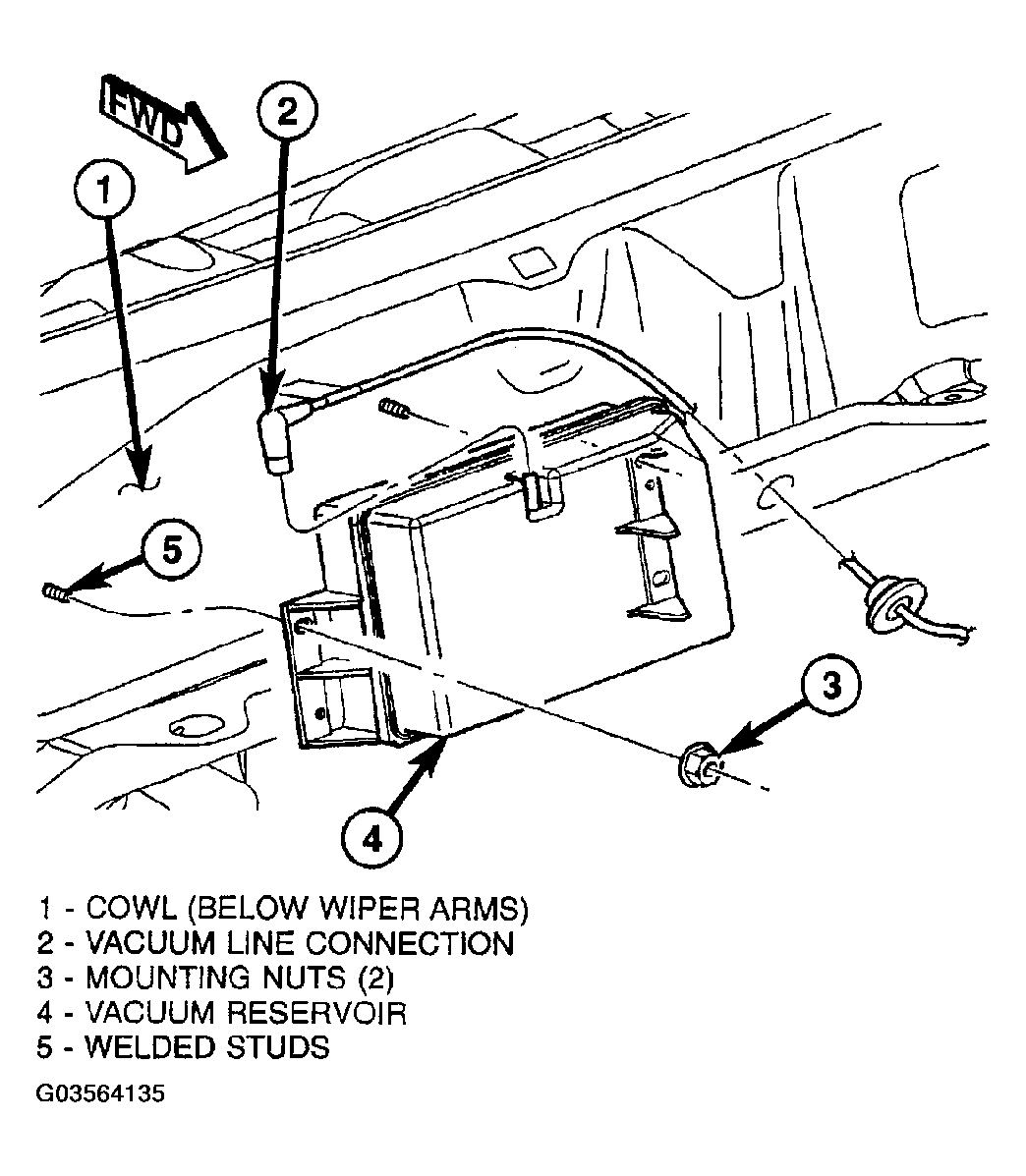

Fig 2: Identifying Vacuum Reservoir
Courtesy of DAIMLERCHRYSLER CORP.
Remove 2 reservoir mounting nuts (Fig 2).
Remove reservoir from cowl.
