Remote Keyless Entry Module: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the instrument cluster (Refer to INSTRUMENT CLUSTER ).
  3. Remove remote keyless entry module from instrument cluster (Fig 1 ).

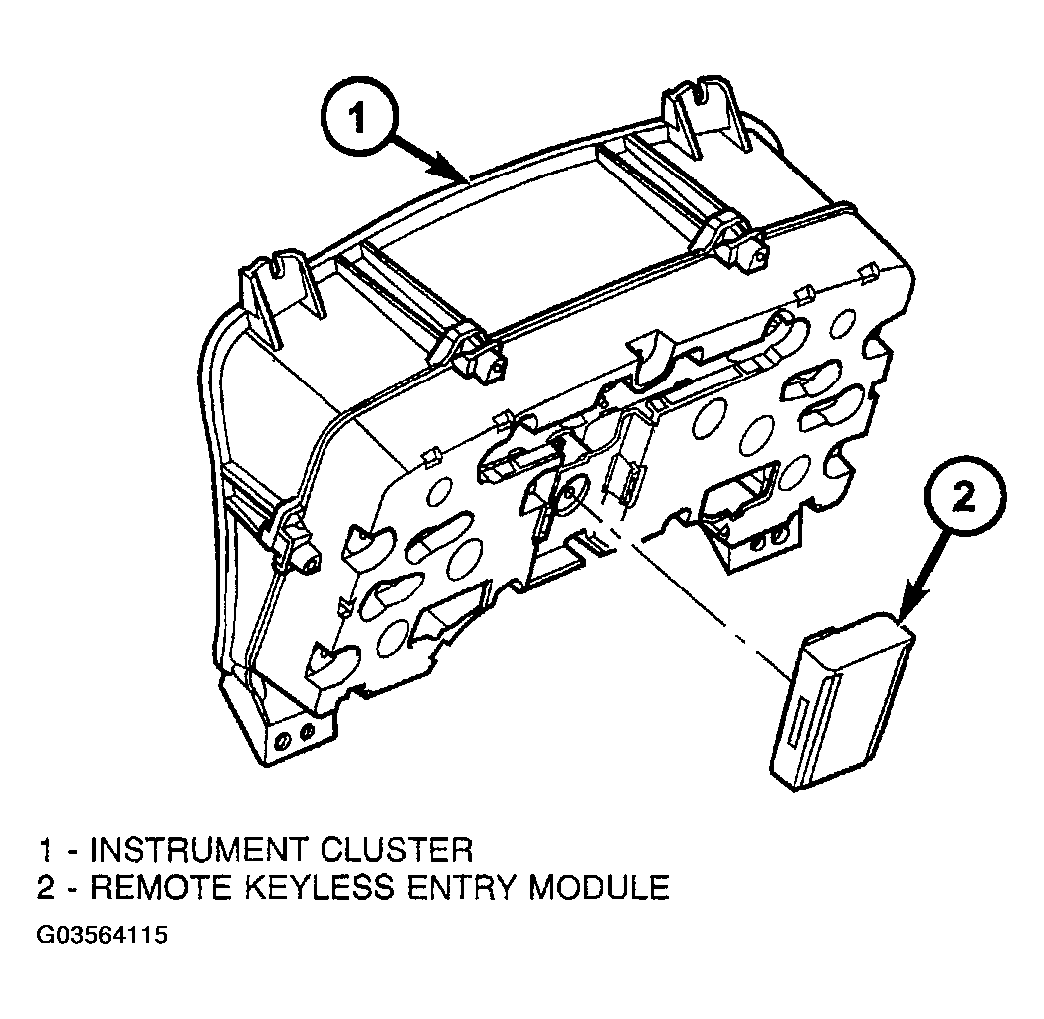

    Fig 1: Removing Remote Keyless Entry Module
    G03564115Courtesy of DAIMLERCHRYSLER CORP.
