Power Lock Switch: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert switch to trim panel bezel.

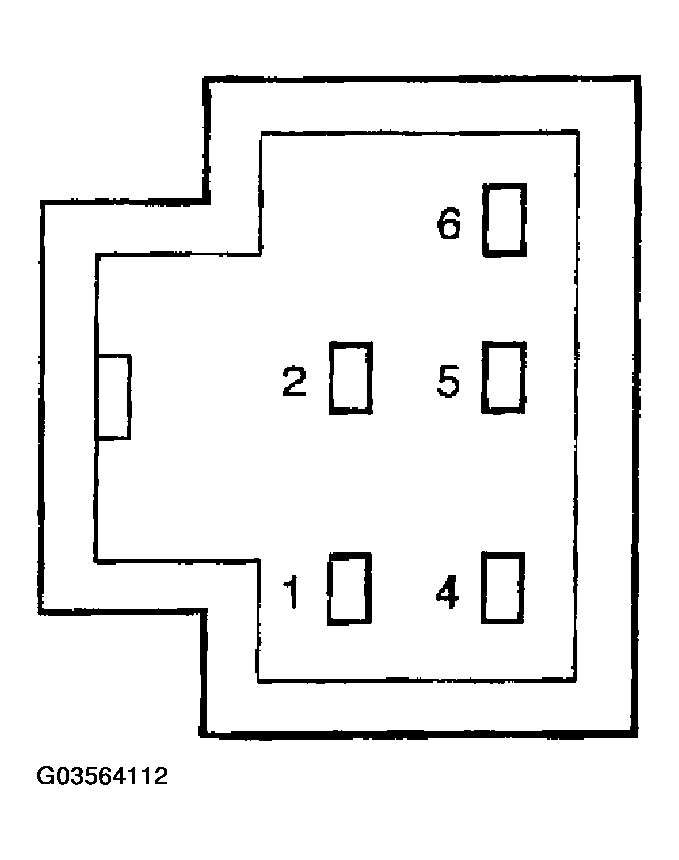

    Fig 1: Identifying Power Lock Switch Connector Receptacle
    G03564112Courtesy of DAIMLERCHRYSLER CORP.
  2. Install door trim panel (TRIM PANEL ).
  3. Connect battery negative cable.
