Push-Button Starter Switch: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Two screws are used to retain the push-button starter switch (Fig 1) to the back of the instrument panel.

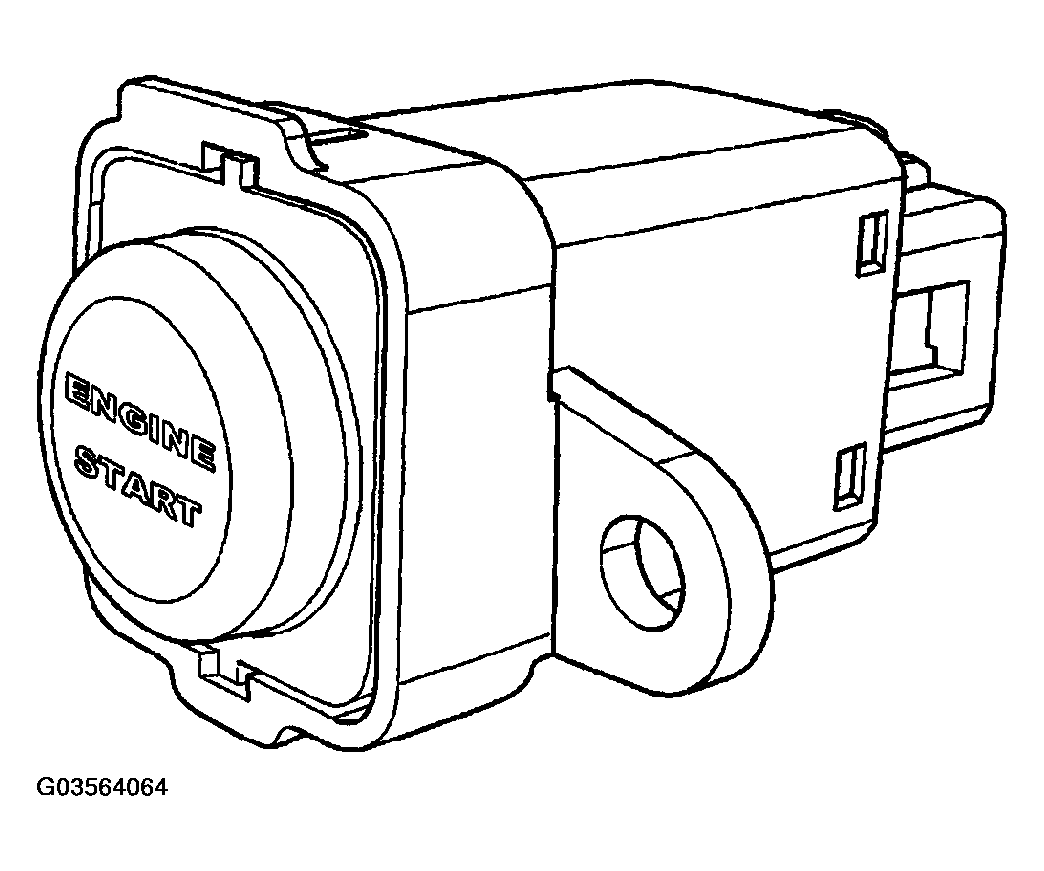

Fig 1: Identifying Push-Button Starter

Courtesy of DAIMLERCHRYSLER CORP.

Remove plastic panel below push-button switch
Remove electrical connector from back of switch.
Remove two switch retaining screws.
Remove switch from instrument panel.
