8.3L - Firing Order

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

1-10-9-4-3-6-5-8-7-2

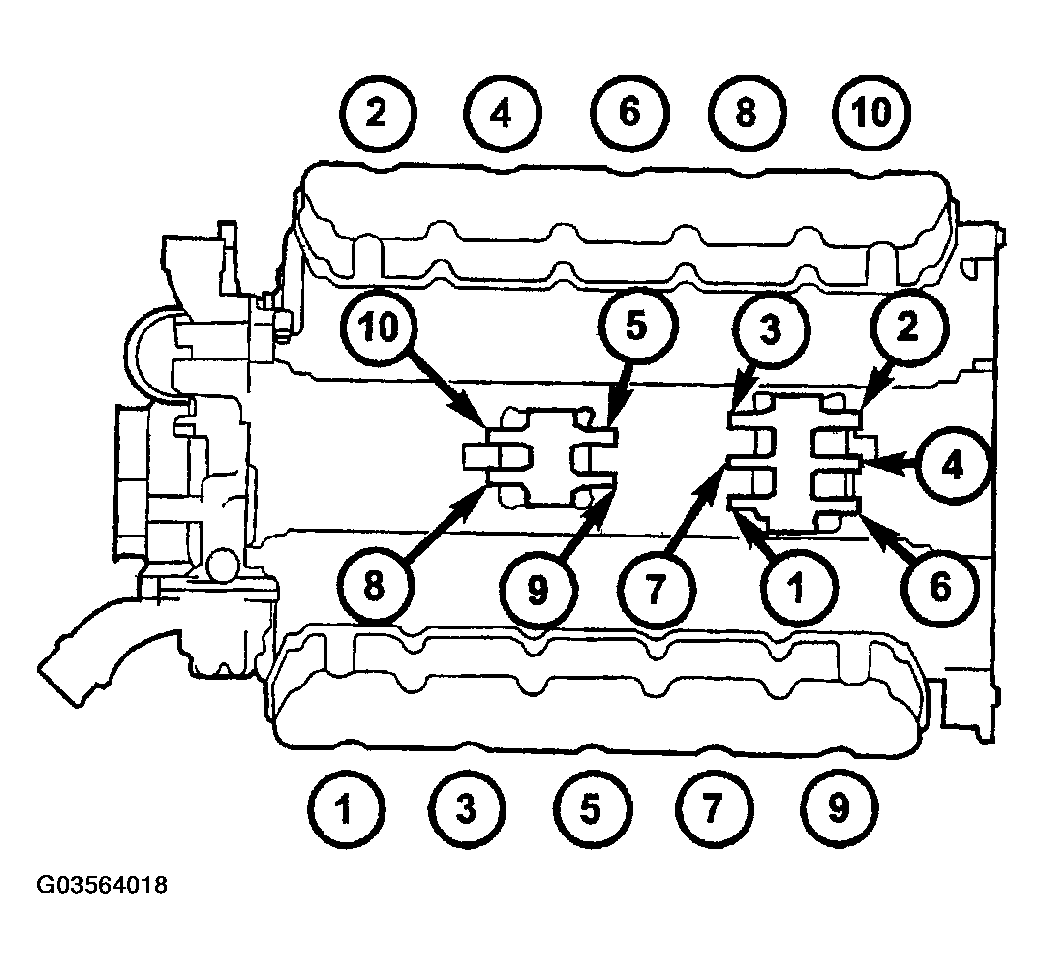

Fig 1: Identifying Firing Order - 8.3L

Courtesy of DAIMLERCHRYSLER CORP.

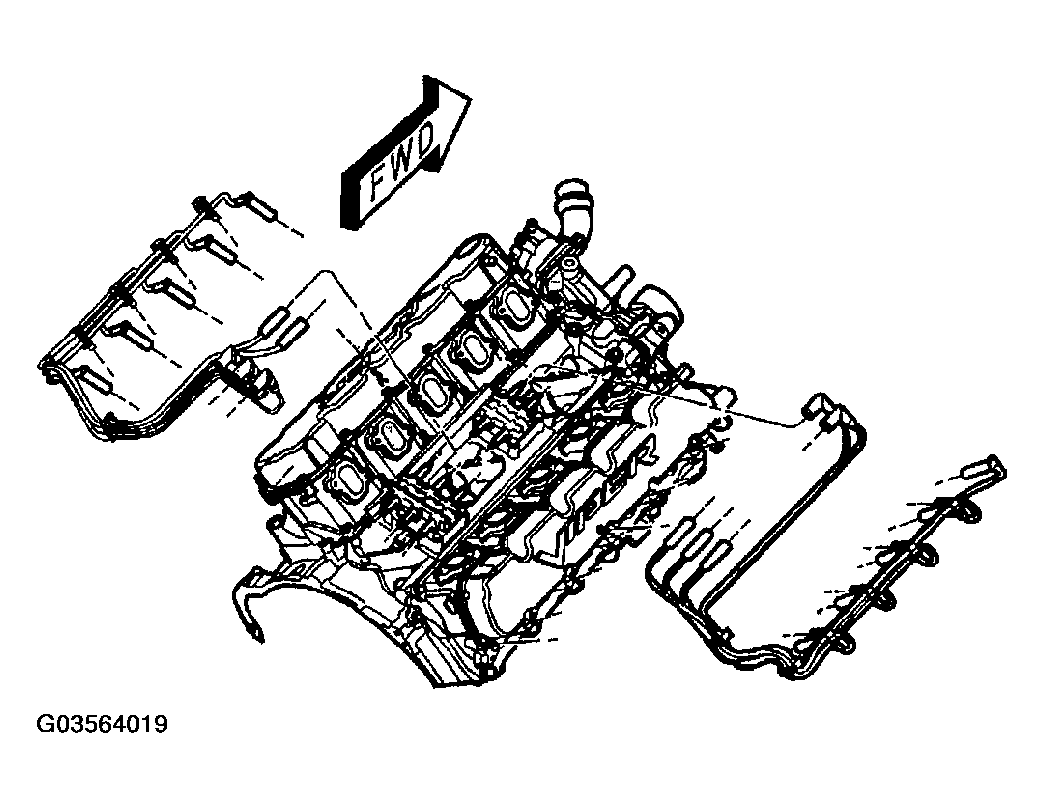

Fig 2: Identifying Wire Routing - 8.3L

Courtesy of DAIMLERCHRYSLER CORP.
