Ignition Coil Capacitor: Removal
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
The coil capacitor is located in the right-rear section of the engine compartment. It is attached with a mounting stud and nut.

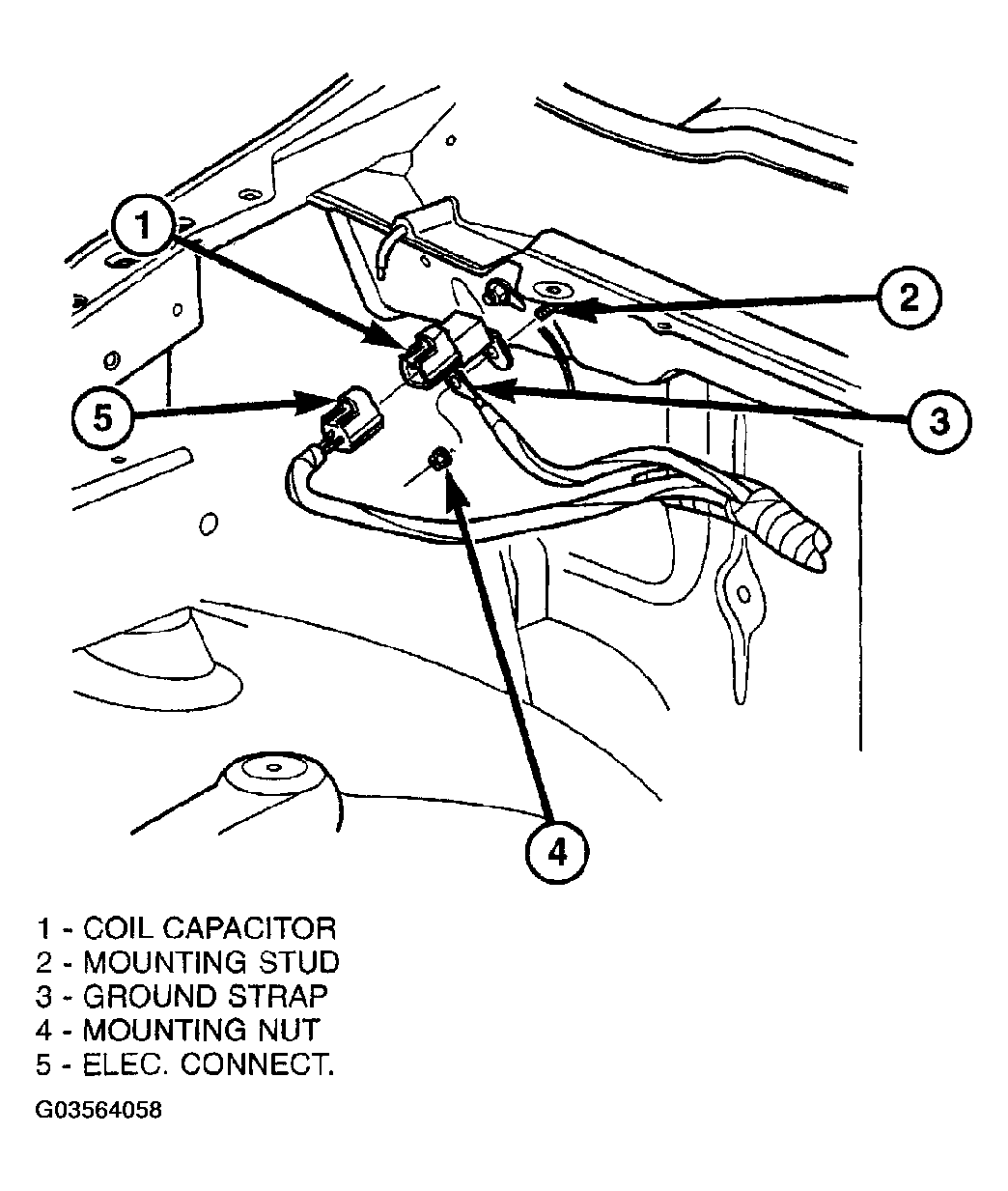

- Disconnect electrical connector at capacitor (Fig 1).
- Remove mounting nut and remove ground strap.
- Remove capacitor.
