4.7L V-8

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

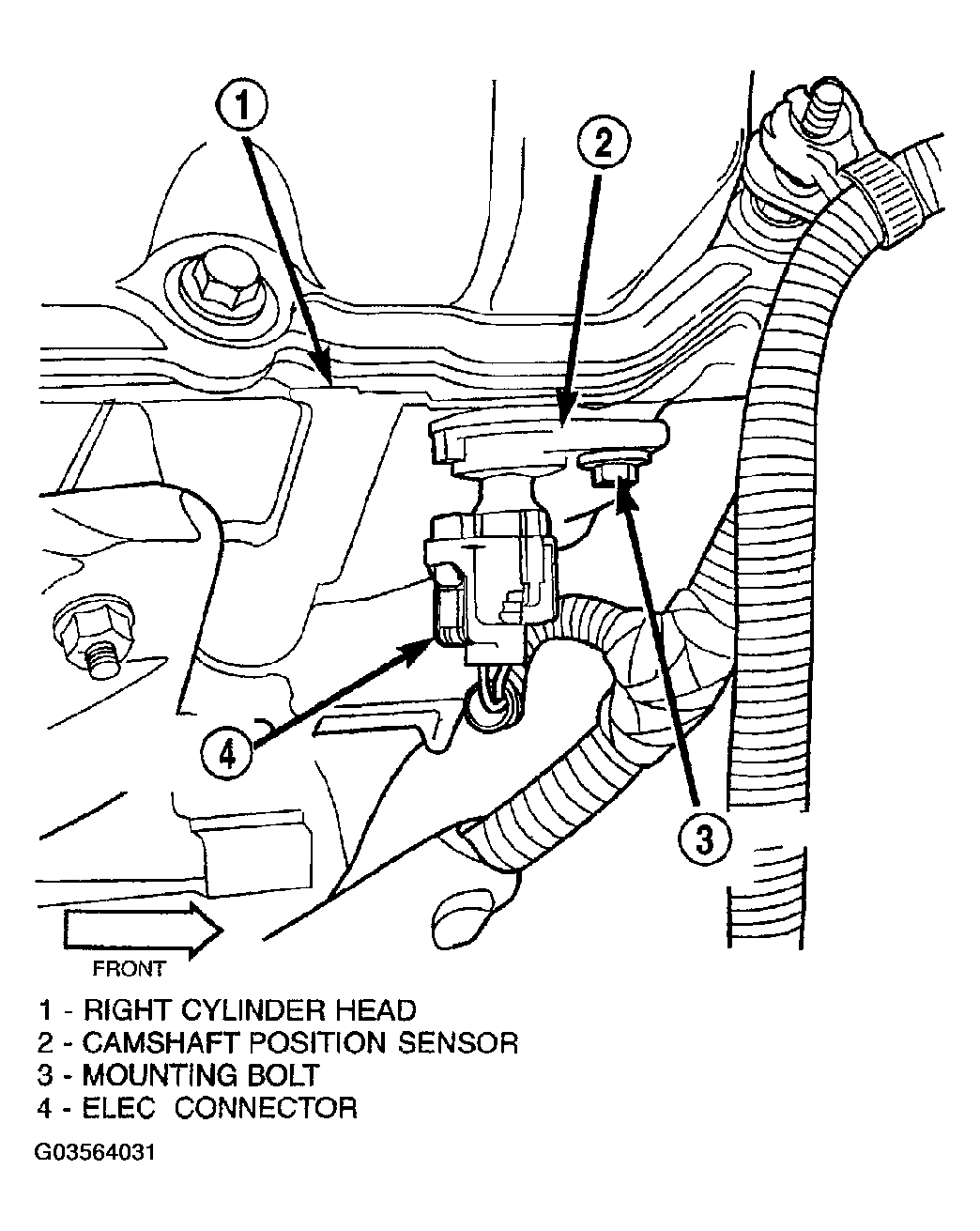

The Camshaft Position Sensor (CMP) on the 4.7L V-8 engine is bolted to the front/top of the right cylinder head (Figure)

  1. Clean out machined hole in cylinder head.
  2. Apply a small amount of engine oil to sensor o-ring.
  3. Install sensor into cylinder head with a slight rocking action. Do not twist sensor into position as damage to o-ring may result.
    CAUTION: Before tightening sensor mounting bolt, be sure sensor is completely flush to cylinder head. If sensor is not flush, damage to sensor mounting tang may result.
  4. Install mounting bolt and tighten. Refer to TORQUE .
  5. Connect electrical connector to sensor.
