Left Side

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery from the battery tray (Refer to REMOVAL  ).
  2. Remove the integrated power module (Refer to INTEGRATED POWER MODULE ).
  3. Disconnect the wire harness retainers from the battery tray assembly.
  4. Remove the anti-lock brake controller (if equipped) retaining bolts and support the brake controller with mechanics wire. It is not necessary to completely remove the anti-lock brake control unit.
  5. Remove the left front wheelhouse splash shield (Refer to FRONT WHEELHOUSE SPLASH SHIELD ).
  6. Mark the location of the cruise servo (if equipped) and remove the retaining screws. Position the servo out of the way.
  7. Remove the battery temperature sensor from the battery tray (Refer to BATTERY TEMPERATURE SENSOR ).
  8. Disconnect the purge solenoid from its mounting bracket.
  9. Disconnect the left front fender ground wire.

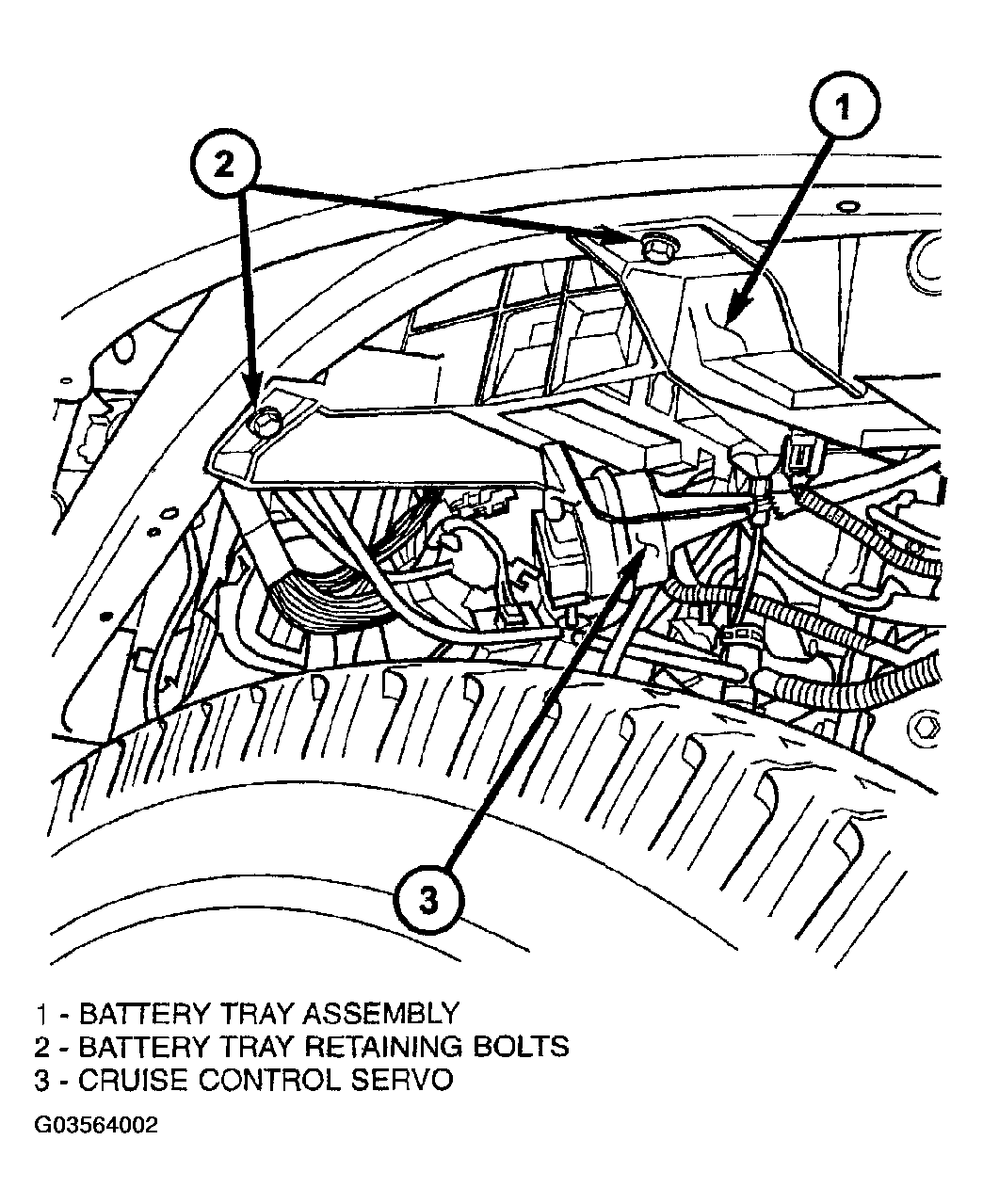

  10. Remove the remaining battery tray retaining bolts (Figure ).
  11. Remove the battery tray from the vehicle.
