Section 120 (Audio): Radio: Removal

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove center instrument panel bezel (Refer to INSTRUMENT PANEL CENTER BEZEL ).
  3. Remove radio mounting screws (Fig 1 ).

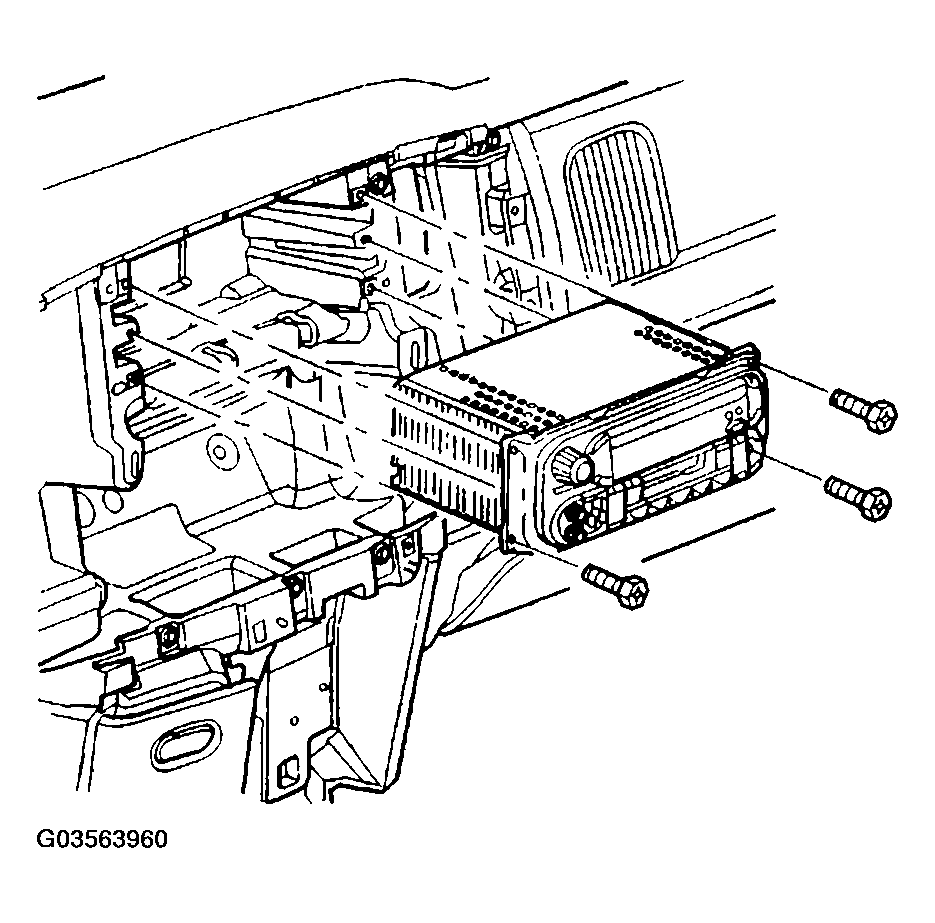

    Fig 1: Identifying Radio
    G03563960Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect electrical harness connector.
    CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.
  5. Disconnect the antenna cable by pulling the locking antenna connector away from the radio (Fig 2 )

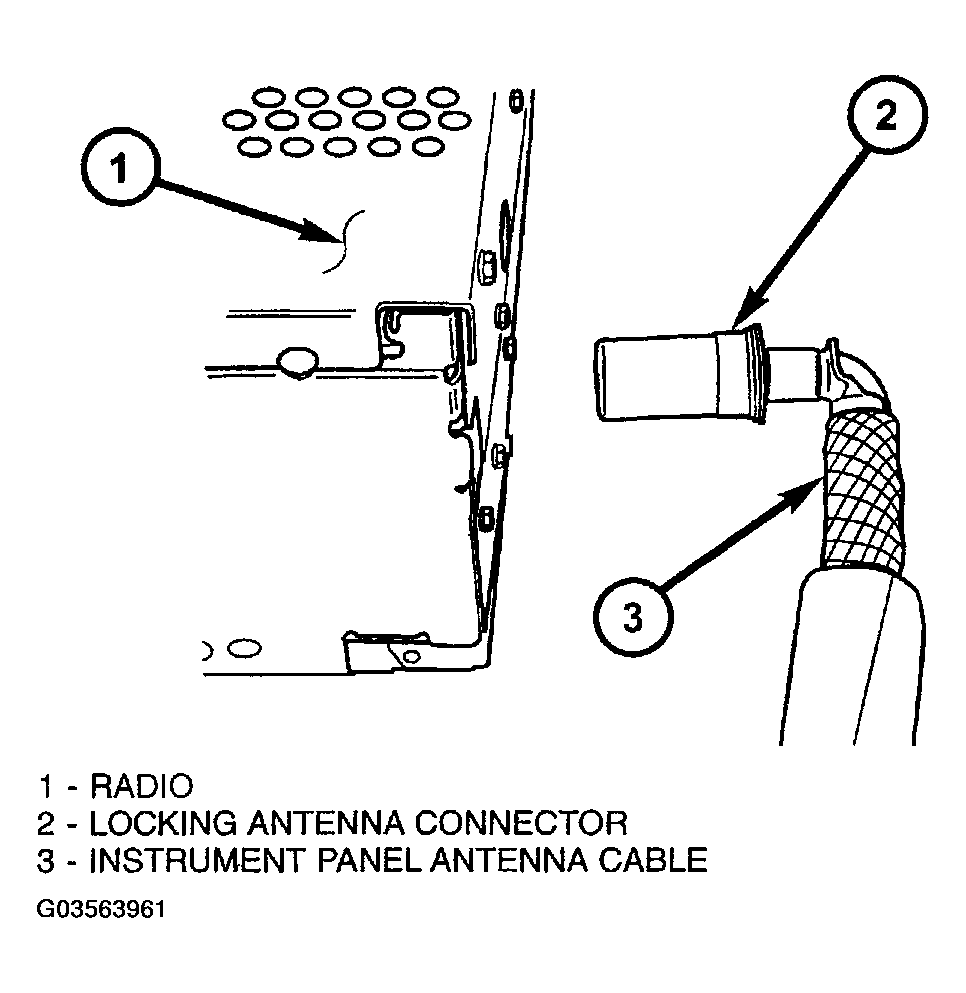

    Fig 2: Connecting Antenna To Radio
    G03563961Courtesy of DAIMLERCHRYSLER CORP.
