RWAL Valve: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install RWAL valve and Tighten the nuts to 15 N.m (11 ft. lbs.) (Fig 1 ).
  2. Install the brake lines to the RWAL valve and tighten to 19 N.m (170 in. lbs.) (Fig 1 ).
  3. Install the electrical harness connector to the RWAL valve and secure the connector.
  4. Install the battery.
  5. Install the battery cables to the battery.

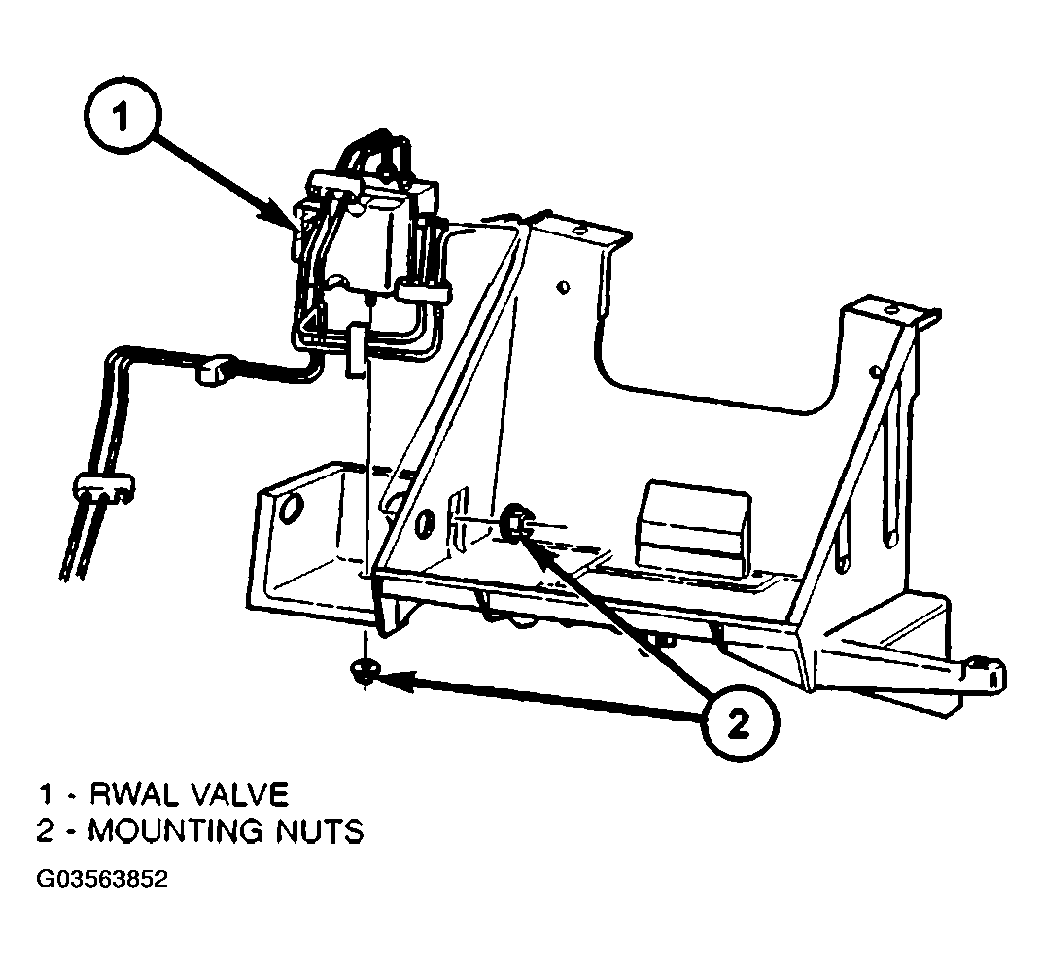

    Fig 1: Identifying RWAL Valve
    G03563852Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the prop rod on the brake pedal.
  7. Bleed ABS brake system. Refer to ABS BRAKE BLEEDING  .
