Front Wheel Speed Sensor: Removal
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front rotor. Refer to
ROTOR
.

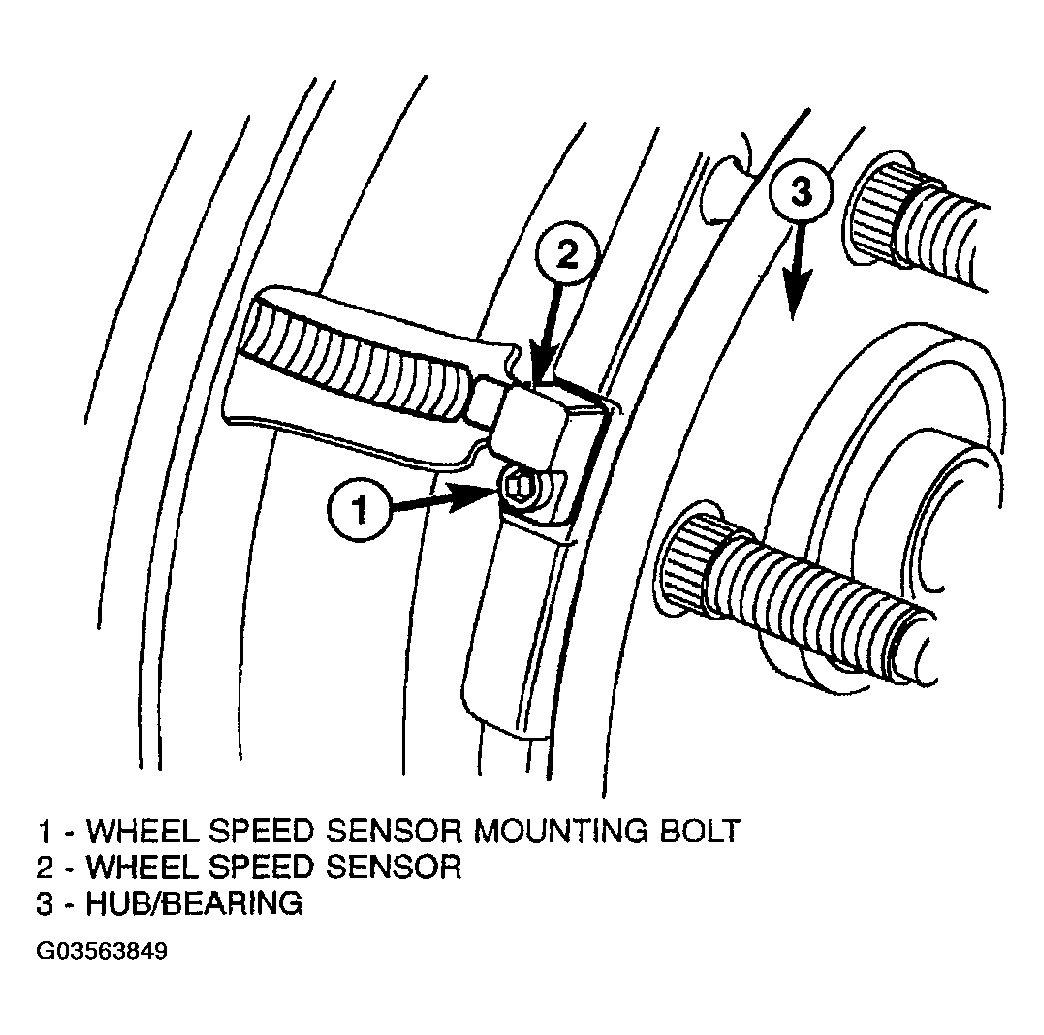

- Remove the wheel speed sensor mounting bolt from the hub. (Fig 1
)
- Remove the wheel speed sensor from the hub.
- Remove the wiring from the clips and disconnect the electrical connector.
Courtesy of DAIMLERCHRYSLER CORP.
