Propeller Shaft Angle: Notes
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
This procedure applies to front and rear propeller shafts.
NOTE:
To obtain output angle (A) on the front propeller shaft equipped with a C/V joint, place inclinometer on machined surface of the C/V joint.
- Place vehicle in Neutral.
- Raise vehicle and support the axles as level as possible.
- Remove universal joint snap rings if equipped, so Inclinometer 7663 base sits flat.
- Rotate shaft until transmission/transfer case output yoke bearing is facing downward.NOTE: Always take measurements from front to rear and on the same side of the vehicle.

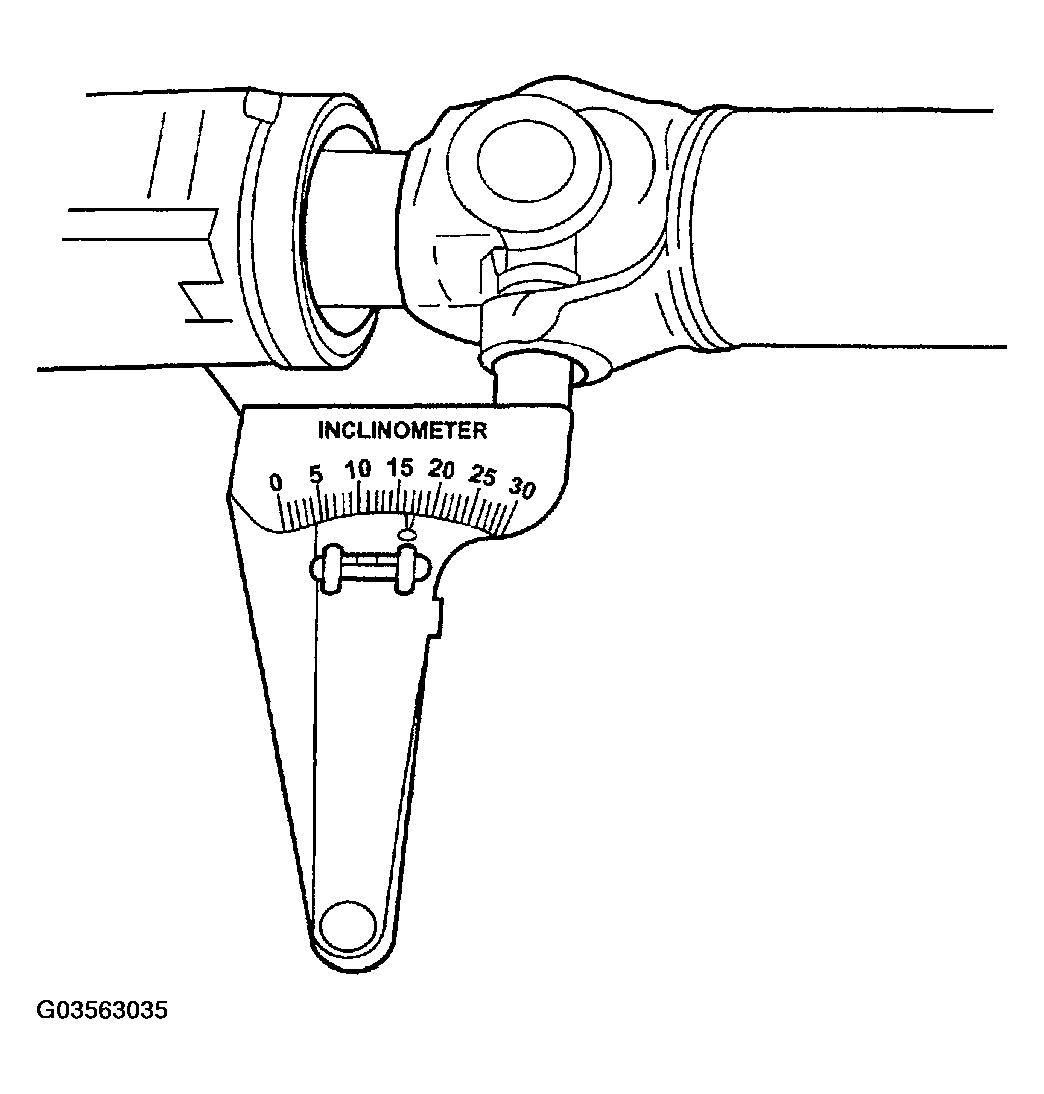

- Place inclinometer on yoke bearing cap or pinion flange ring (A) parallel to the shaft (Fig 1
). Center bubble in sight glass and record measurement.
This measurement will give you the transmission yoke Output Angle (A).

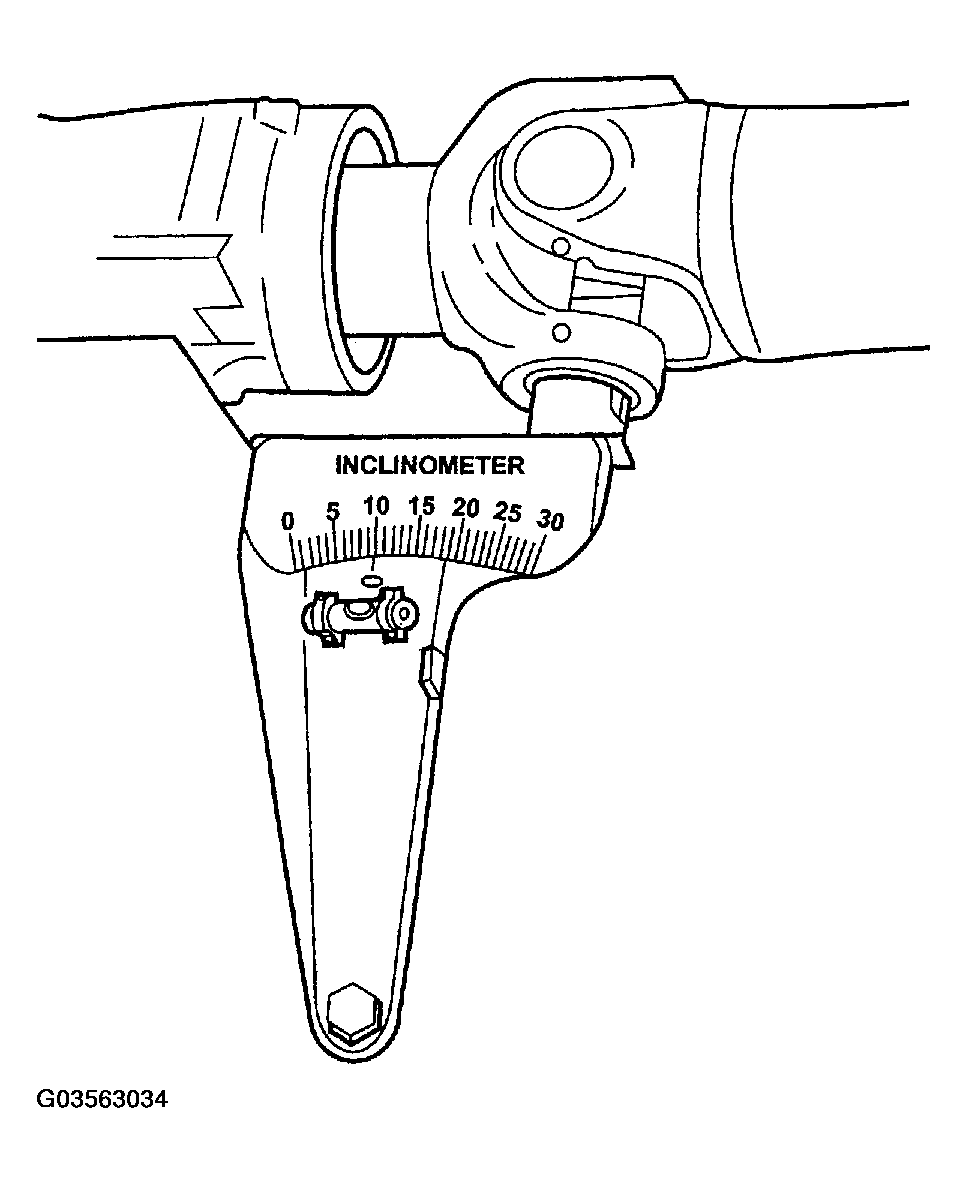

- Rotate propeller shaft 90 degrees and place Inclinometer on yoke bearing parallel to the shaft (Figure
). Center bubble in sight glass and record measurement. This measurement can also be taken at the rear end of the shaft.
This measurement will give you the Propeller Shaft Angle (C).

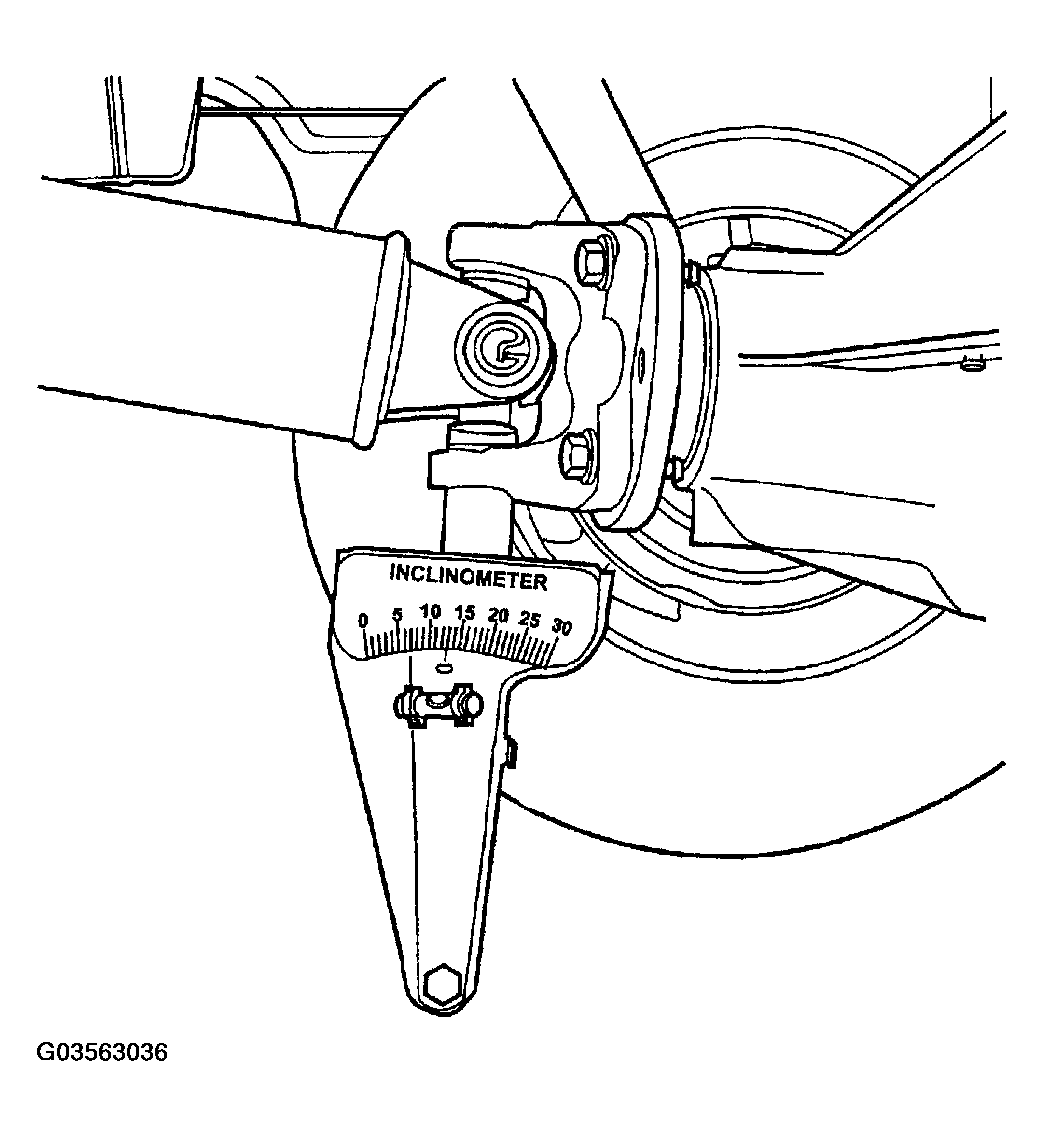

- Rotate propeller shaft 90 degrees and place inclinometer on companion flange yoke bearing parallel to the shaft (Figure
). Center bubble in sight glass and record measurement.
This measurement will give you the pinion Companion Flange Input Angle (B).
- Subtract smaller figure from larger (C minus A) to obtain Transmission/Transfer Case Output Operating Angle.
- Subtract smaller figure from larger (C minus B) to obtain axle Input Operating Angle.

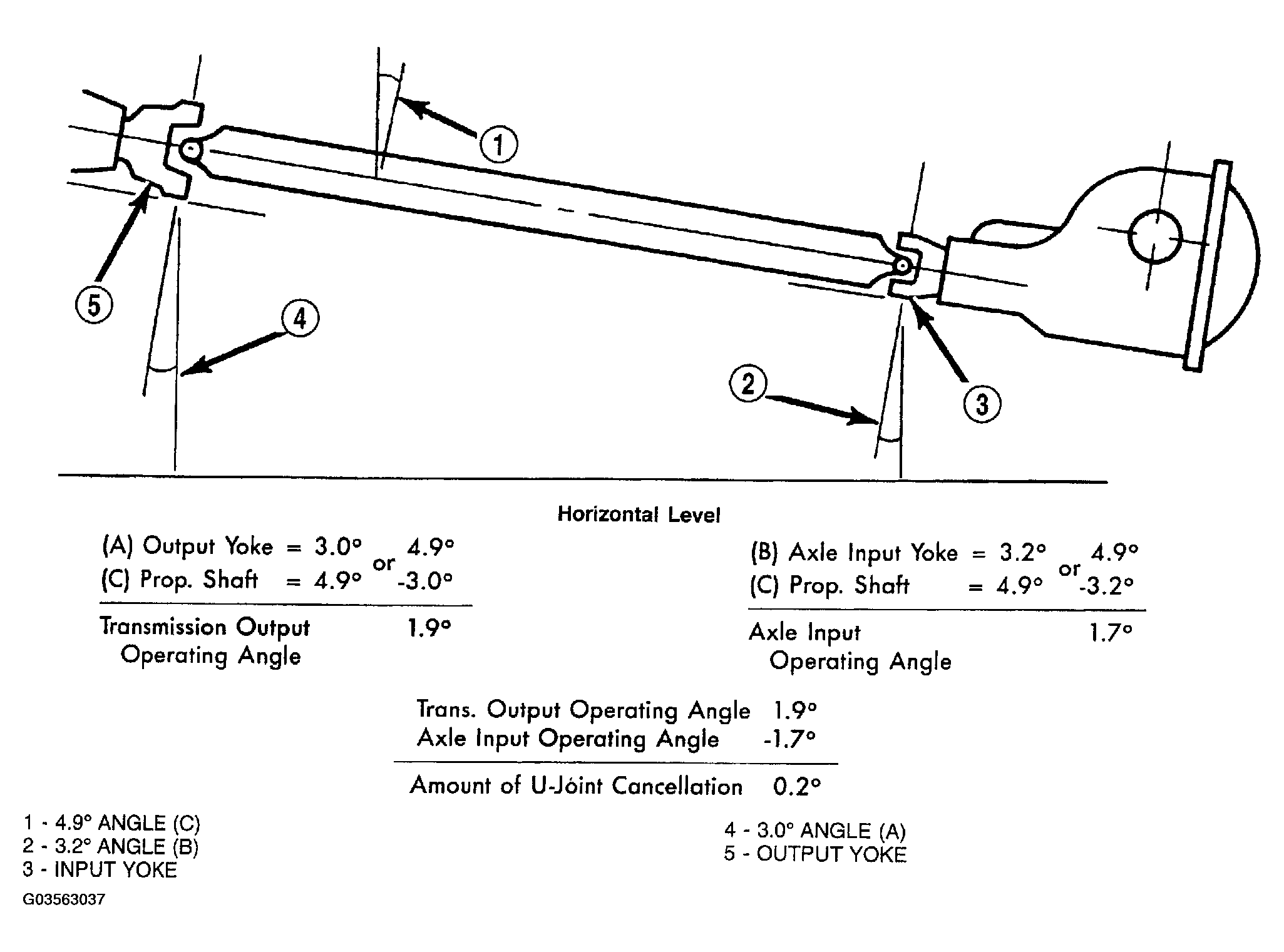

Refer to rules and example in (Figure ) for additional information.
