Verification Tests

WARNING: This page is about a different car, the 2003 Dodge Grand Caravan, 2003 Dodge Caravan, 2003 Chrysler Voyager, and 2003 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

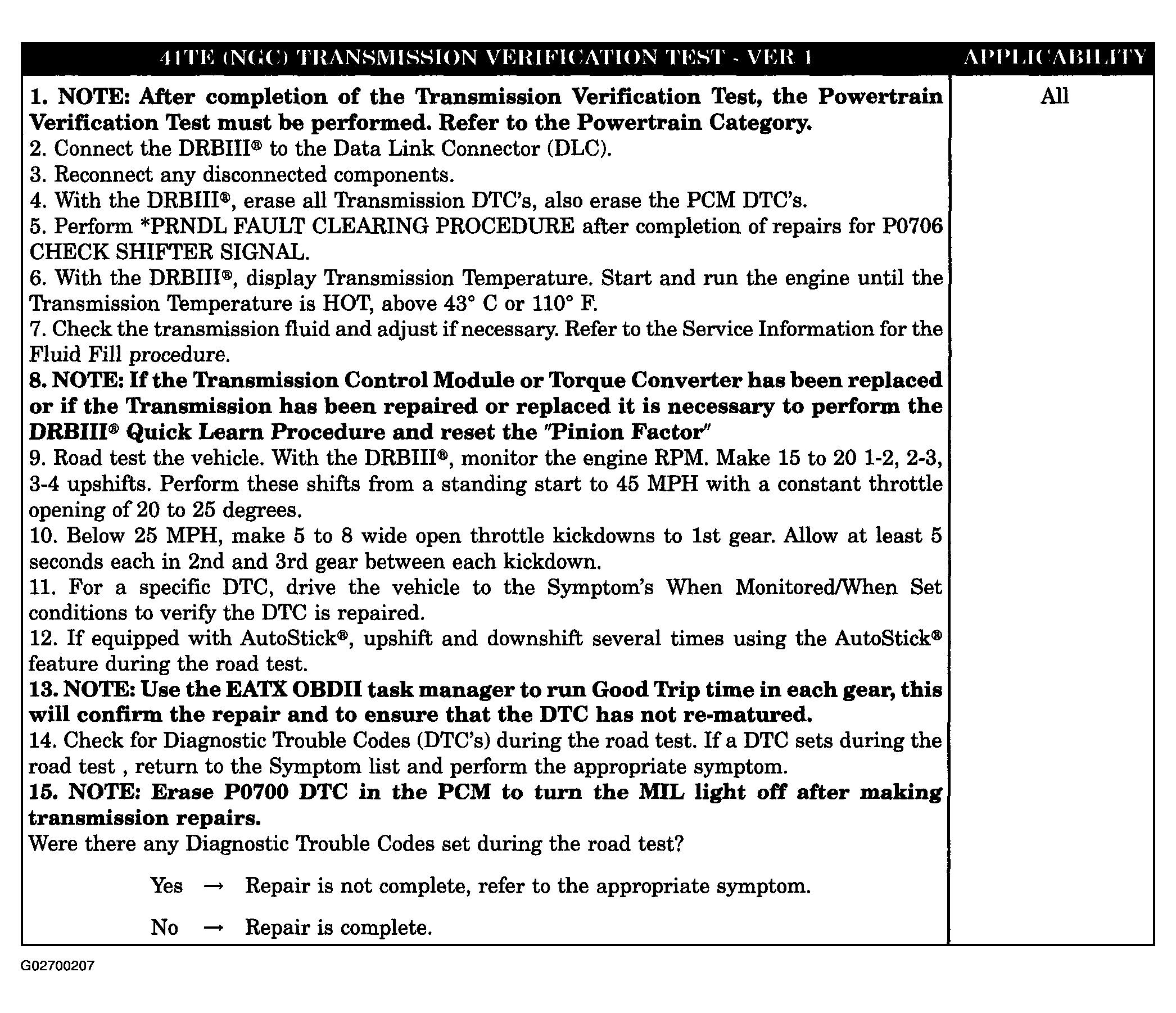

Fig 1: 41TE (NGC) Transmission Verification Test - Ver 1

Courtesy of DAIMLERCHRYSLER CORP.

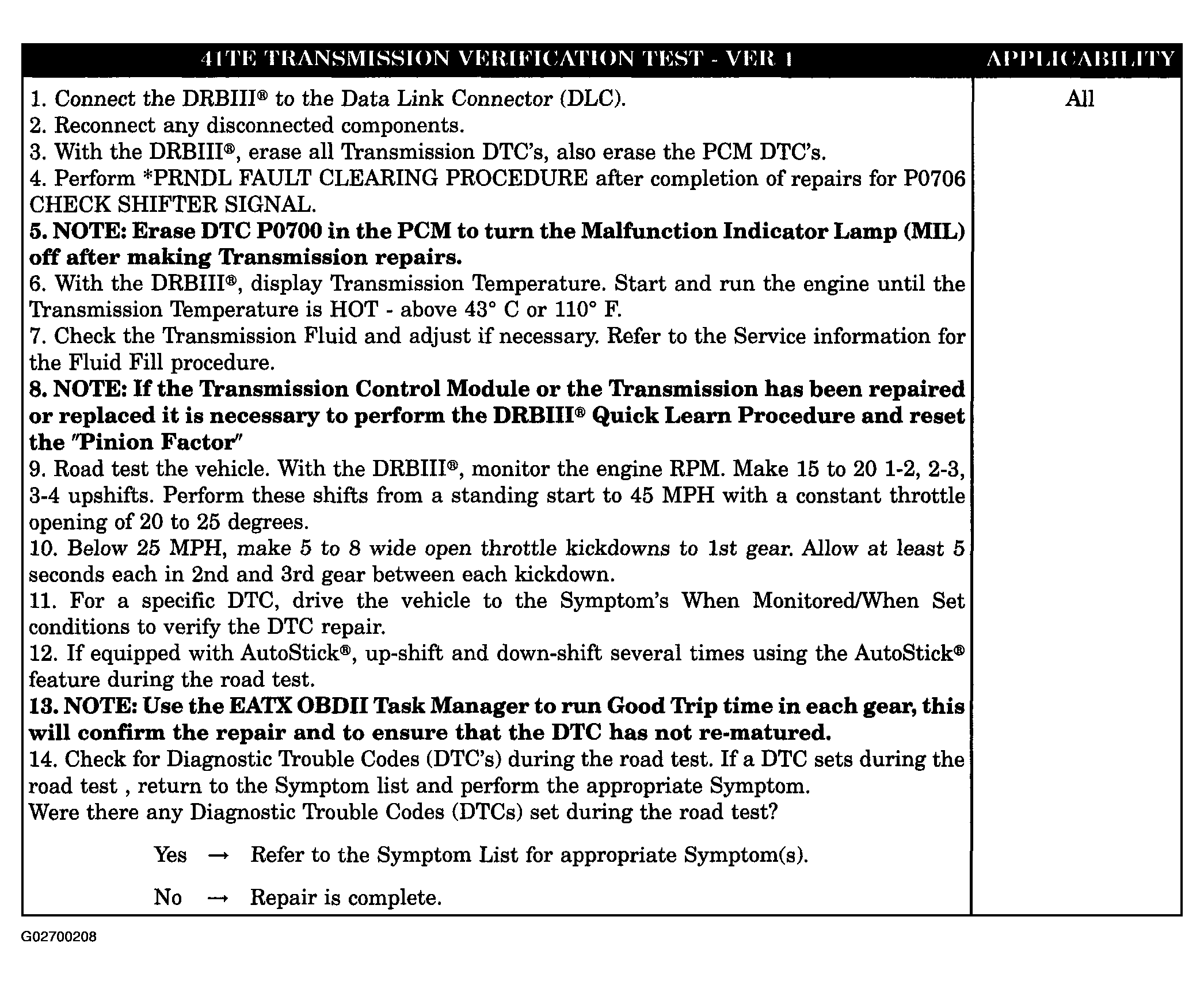

Fig 2: 41TE Transmission Verification Test - Ver 1

Courtesy of DAIMLERCHRYSLER CORP.

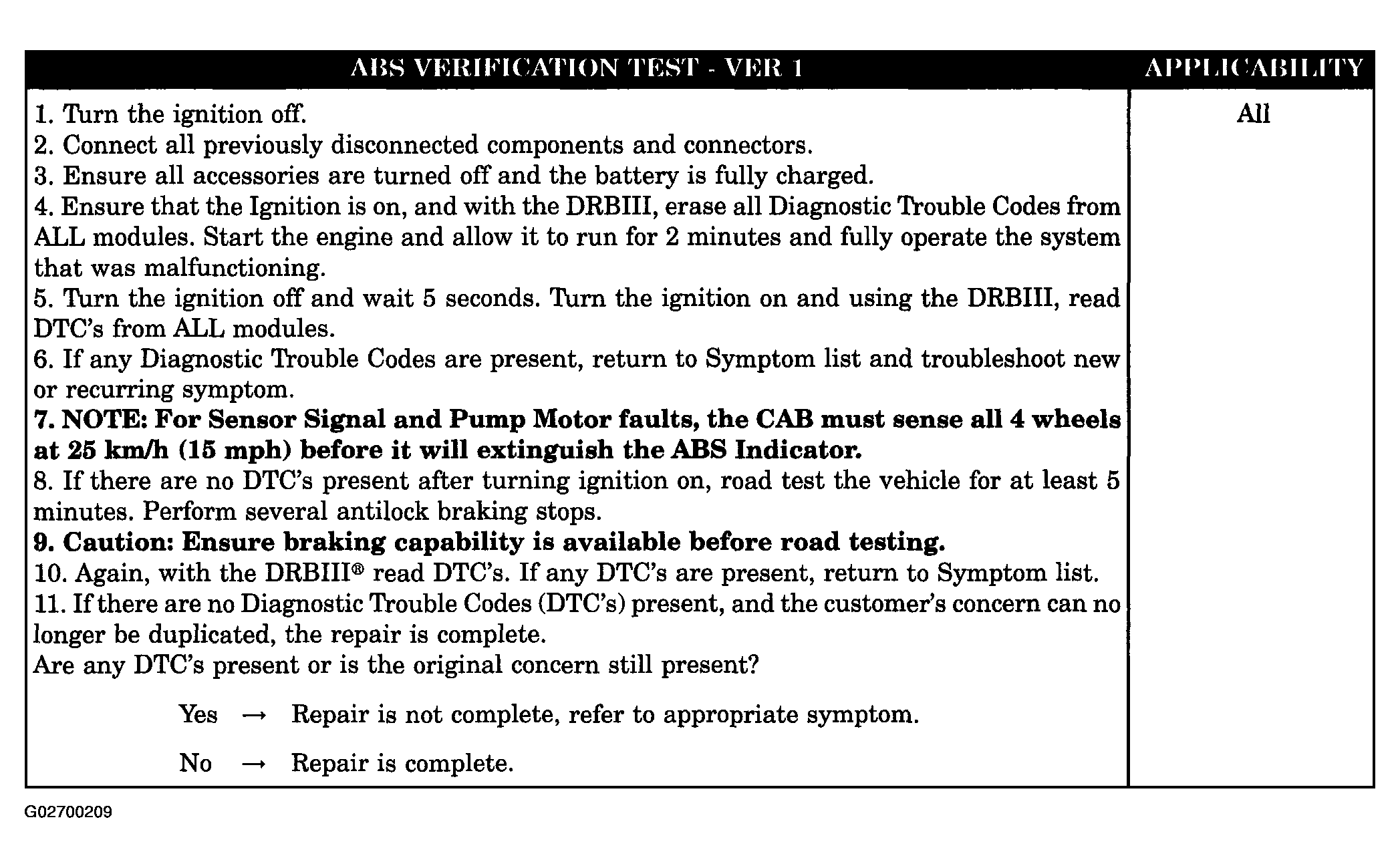

Fig 3: ABS Verification Test - Ver 1

Courtesy of DAIMLERCHRYSLER CORP.

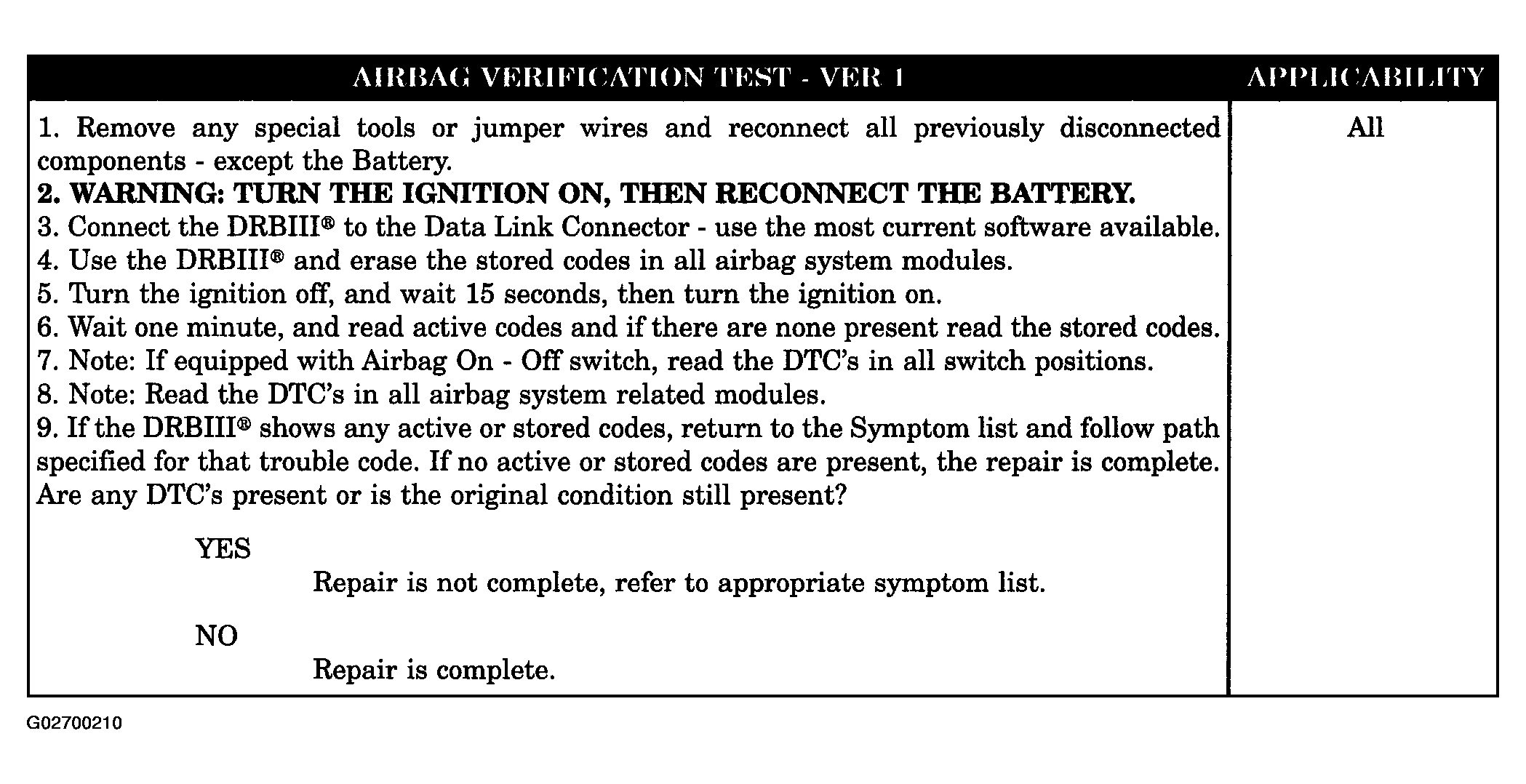

Fig 4: Airbag Verification Test - Ver 1

Courtesy of DAIMLERCHRYSLER CORP.

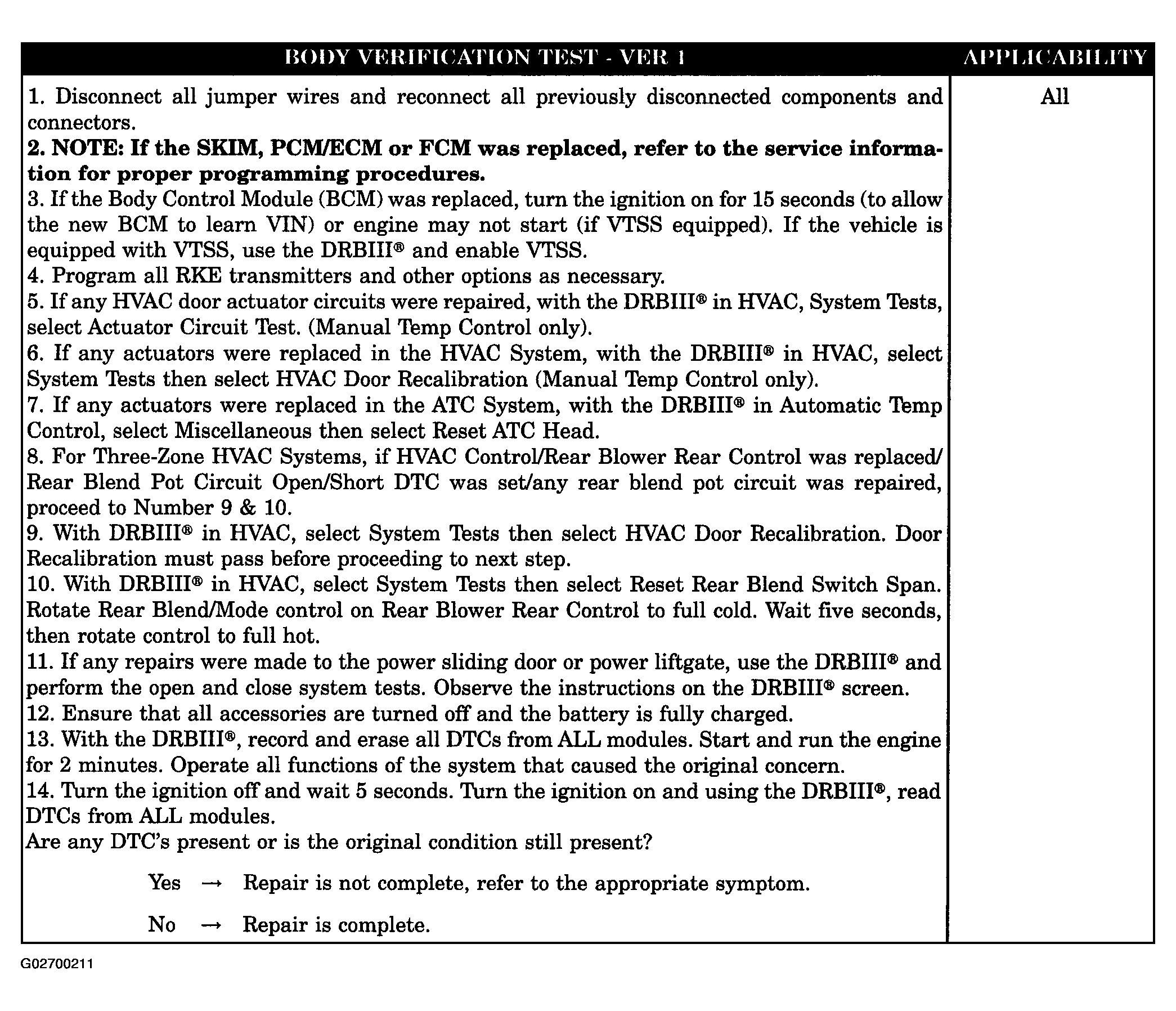

Fig 5: Body Verification Test - Ver 1

Courtesy of DAIMLERCHRYSLER CORP.

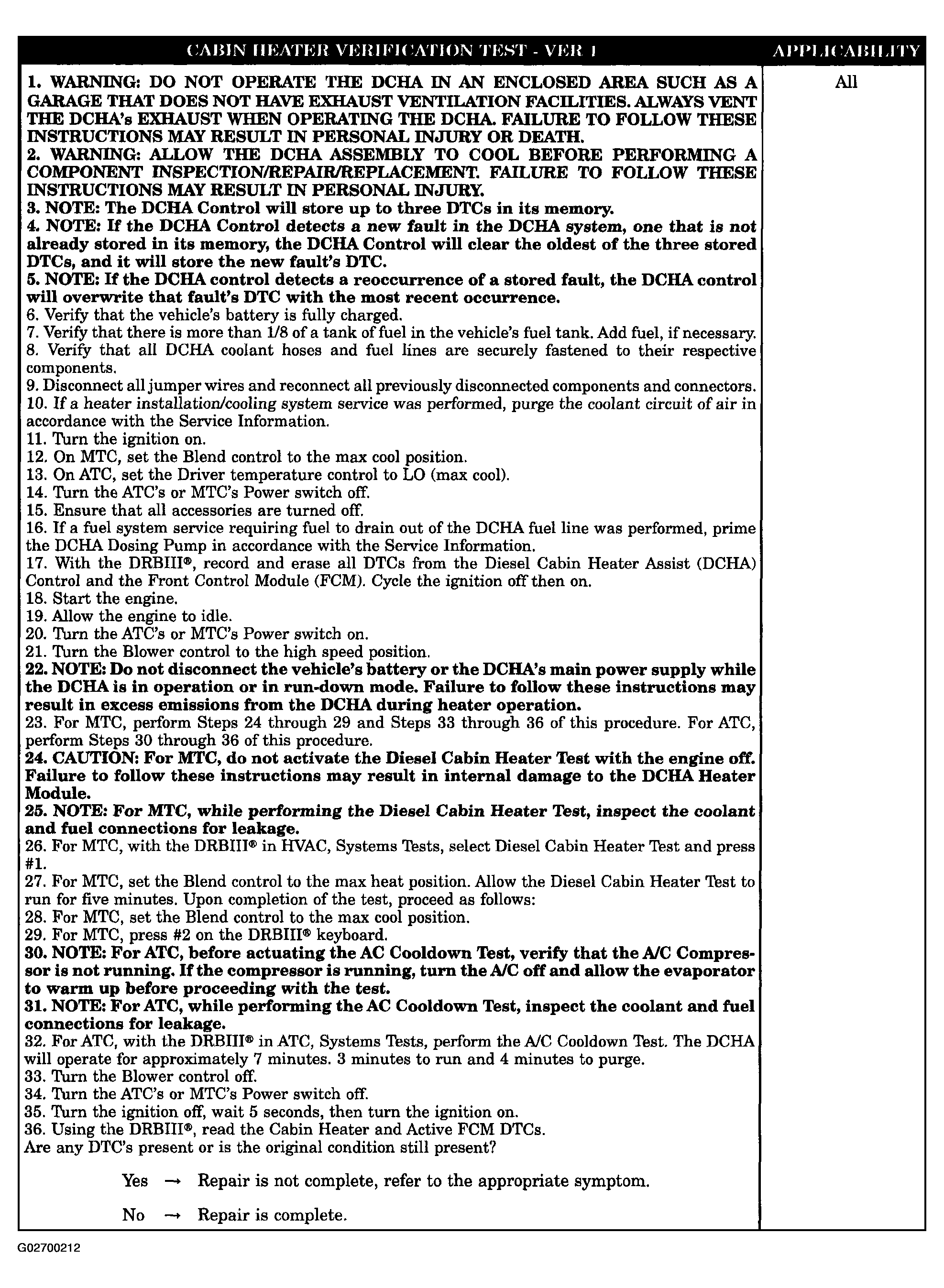

Fig 6: Cabin Heater Verification Test - Ver 1

Courtesy of DAIMLERCHRYSLER CORP.

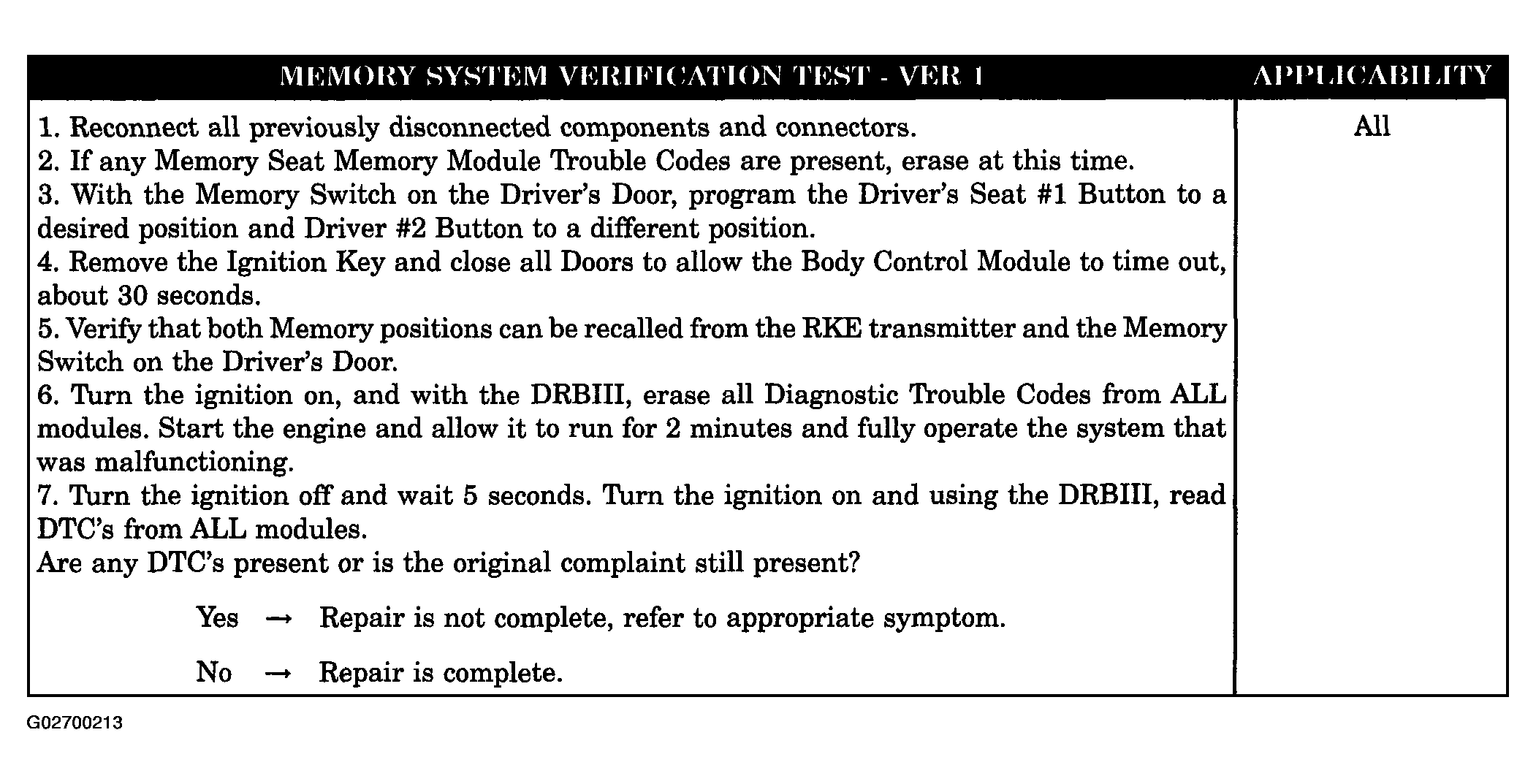

Fig 7: Memory System Verification Test - Ver 1

Courtesy of DAIMLERCHRYSLER CORP.

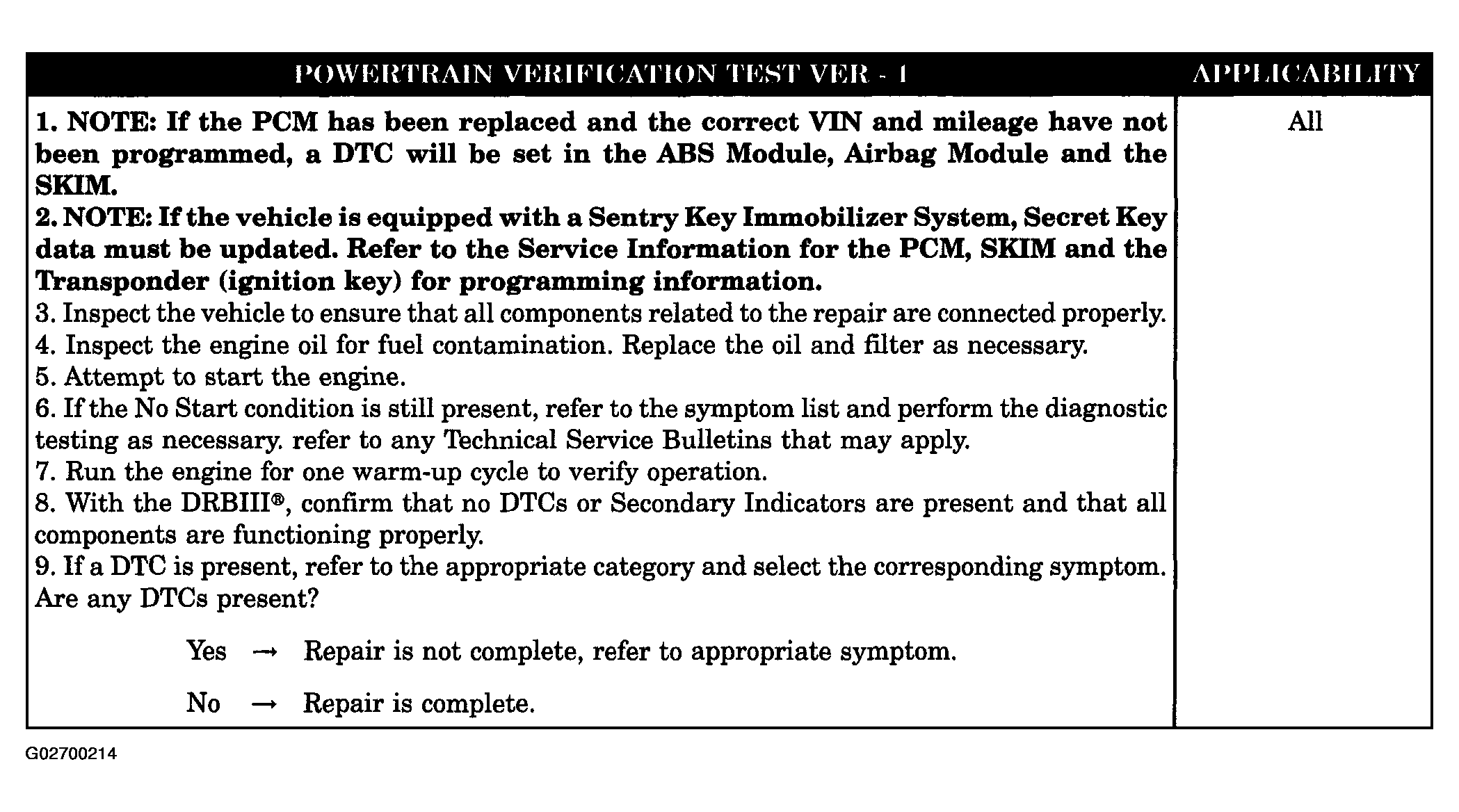

Fig 8: Powertrain Verification Test - Ver 1

Courtesy of DAIMLERCHRYSLER CORP.

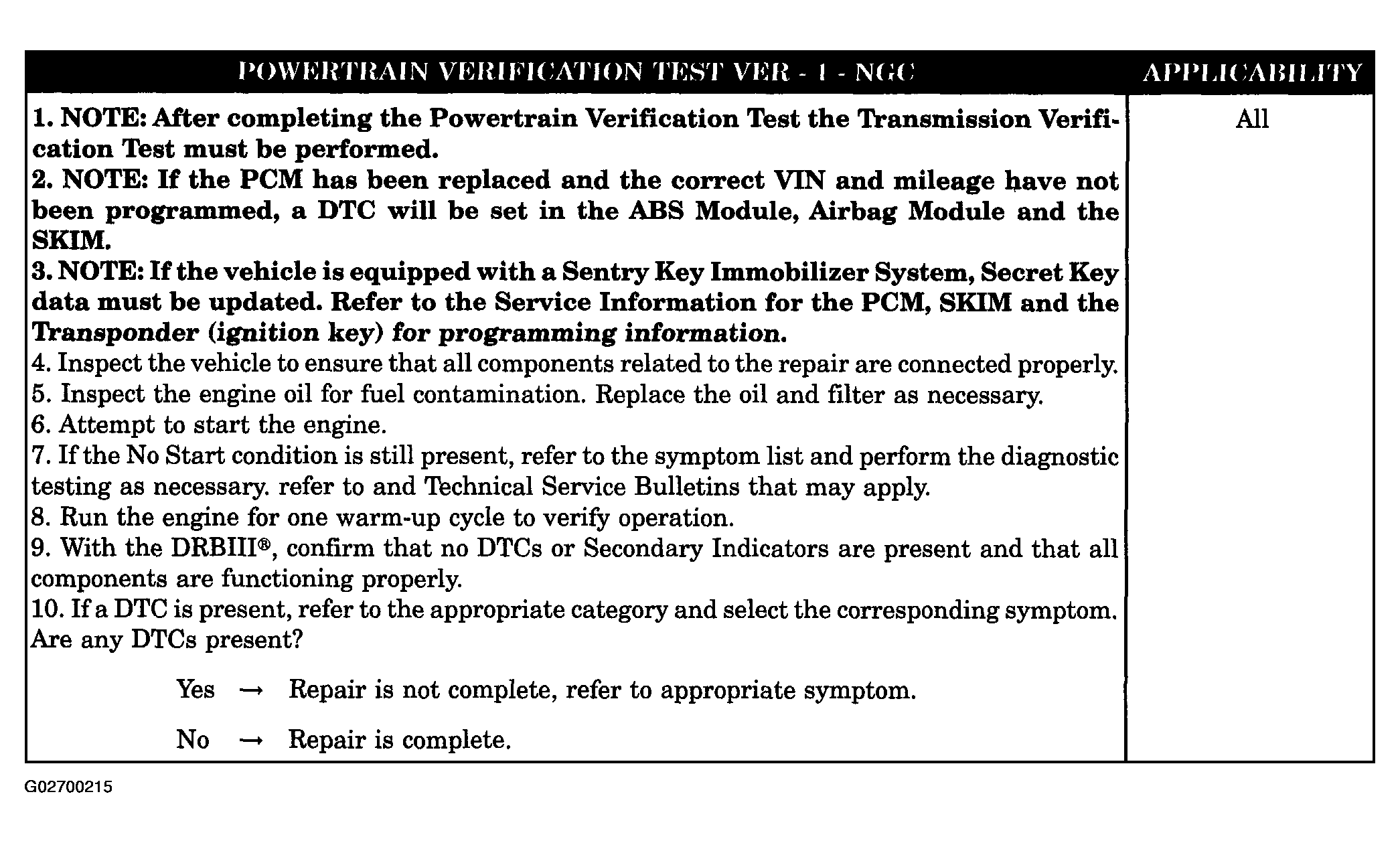

Fig 9: Powertrain Verification Test - Ver 1 - NGC

Courtesy of DAIMLERCHRYSLER CORP.

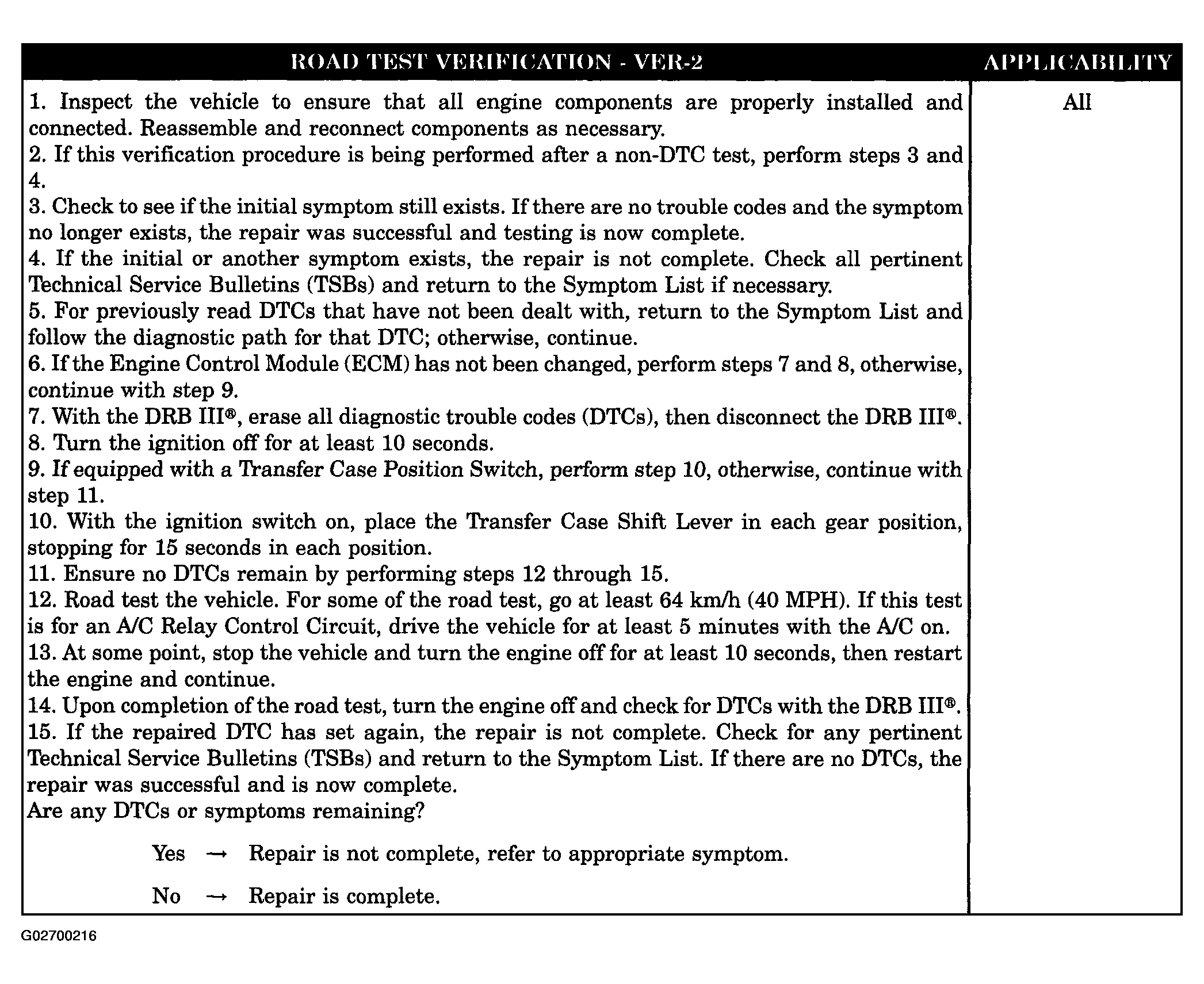

Fig 10: Road Test Verification - Ver 2

Courtesy of DAIMLERCHRYSLER CORP.

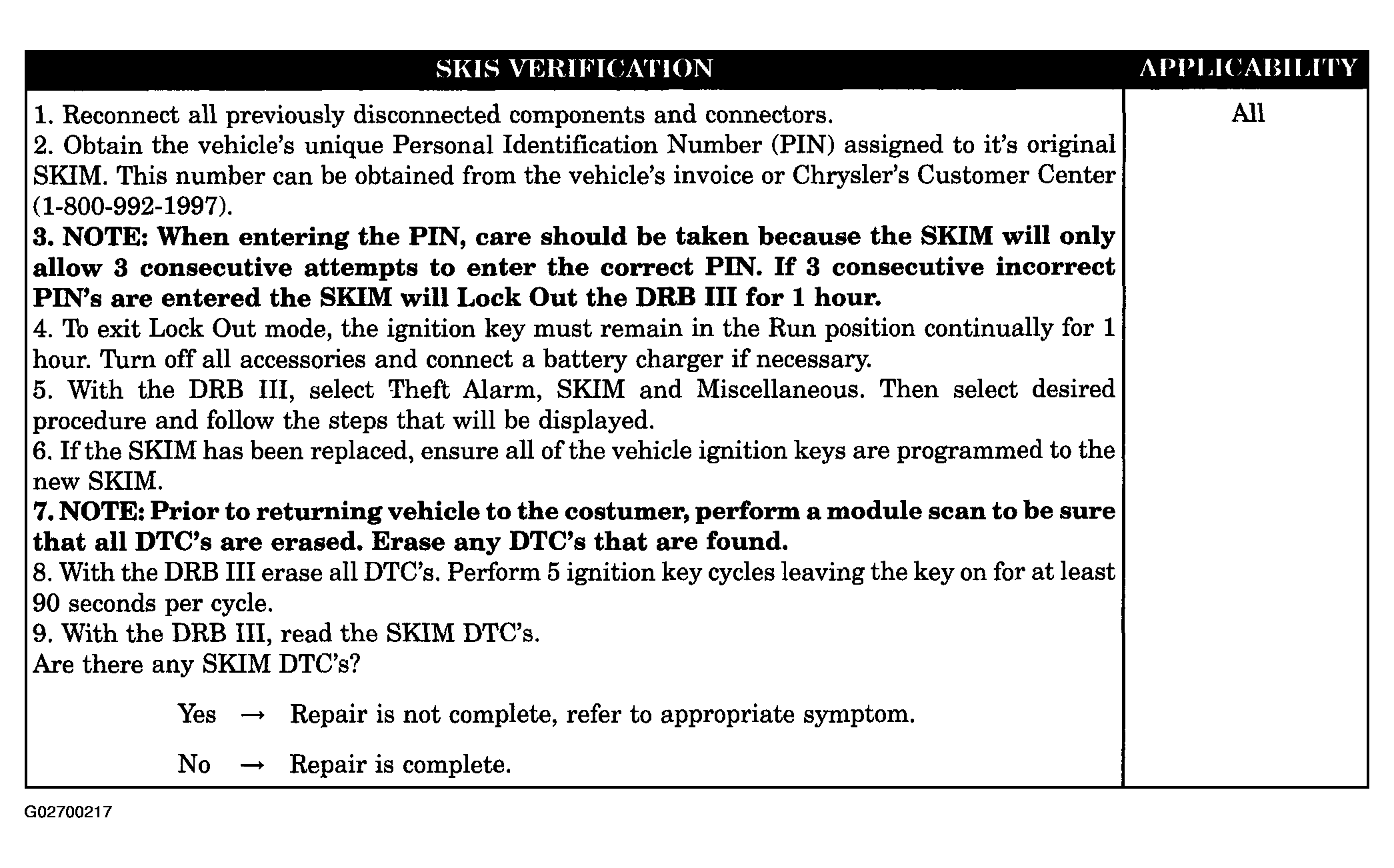

Fig 11: SKIS Verification

Courtesy of DAIMLERCHRYSLER CORP.

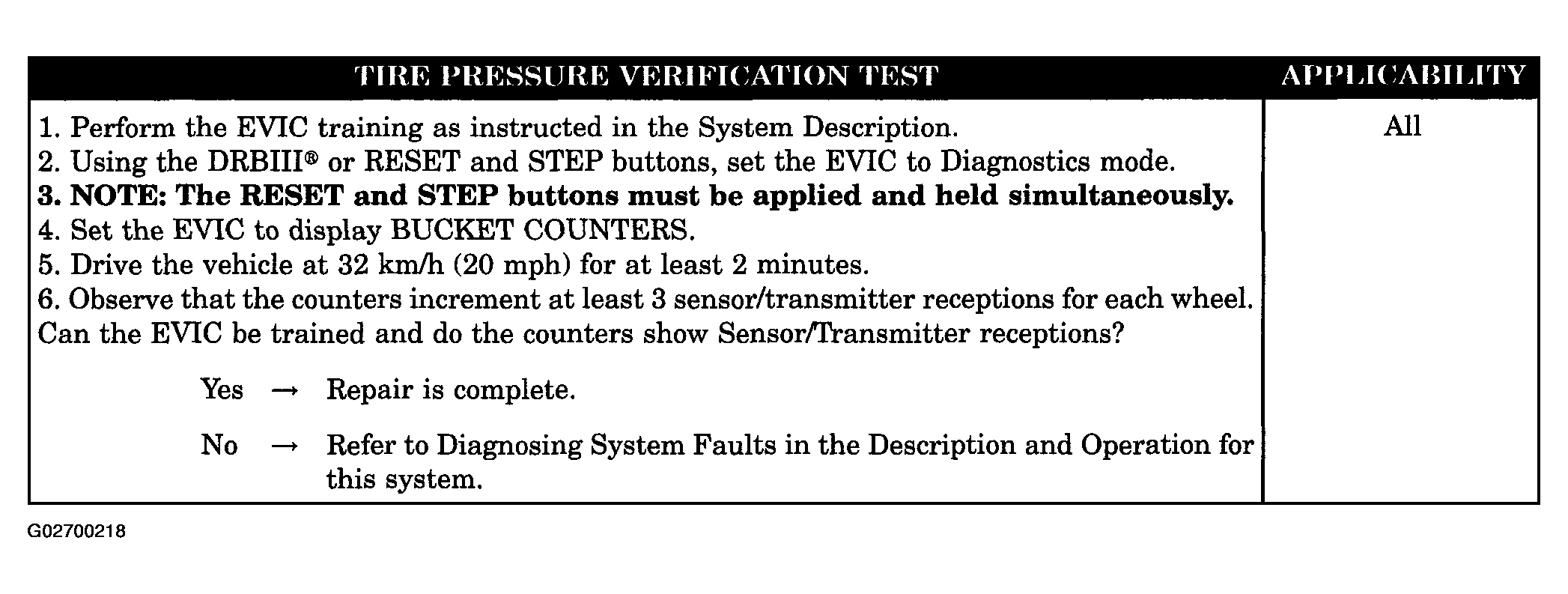

Fig 12: Tire Pressure Verification Test

Courtesy of DAIMLERCHRYSLER CORP.

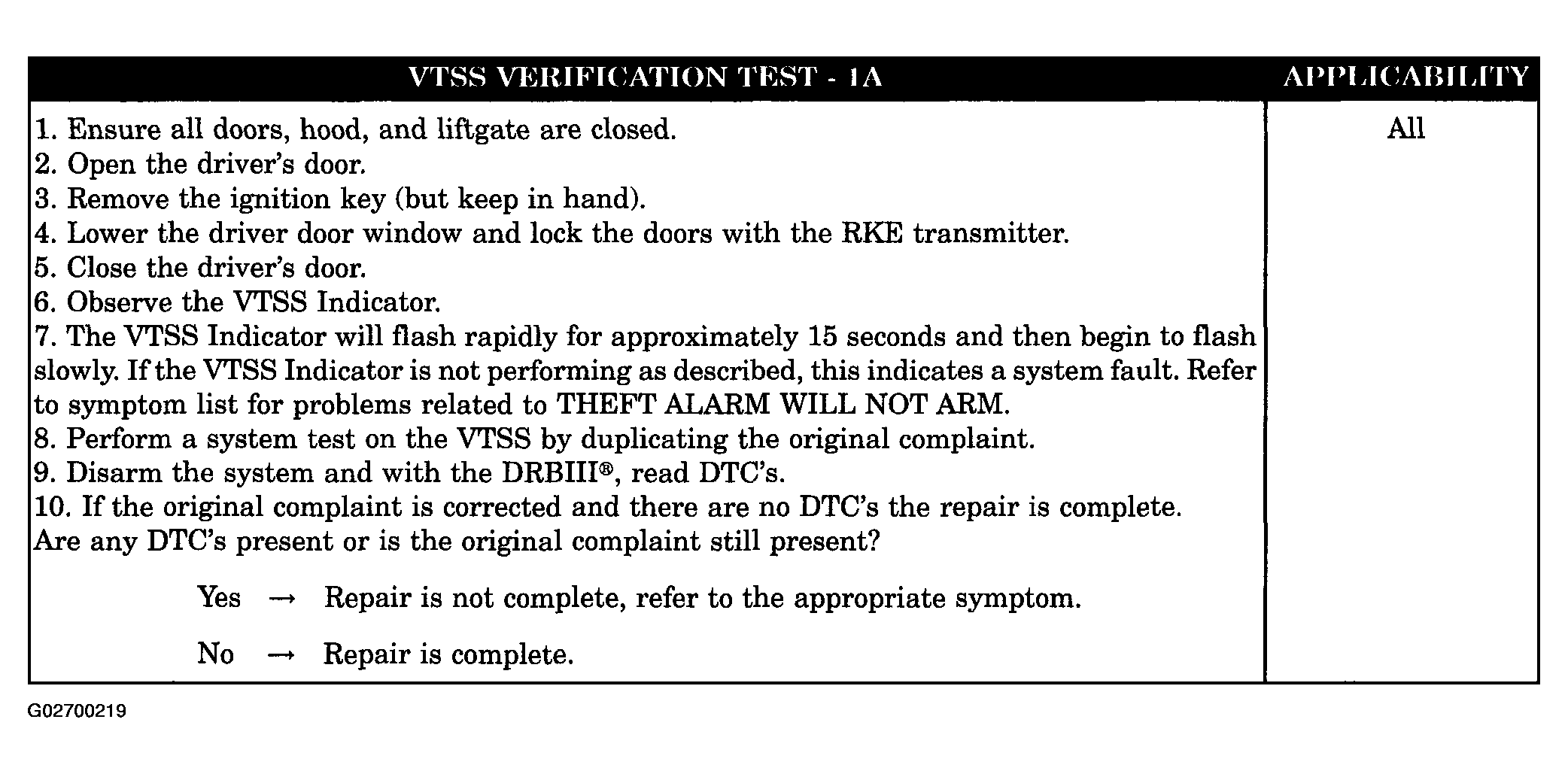

Fig 13: VTSS Verification Test - 1A

Courtesy of DAIMLERCHRYSLER CORP.
