Schematic Diagrams: Communication: Notes

WARNING: This page is about a different car, the 2003 Dodge Grand Caravan, 2003 Dodge Caravan, 2003 Chrysler Voyager, and 2003 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

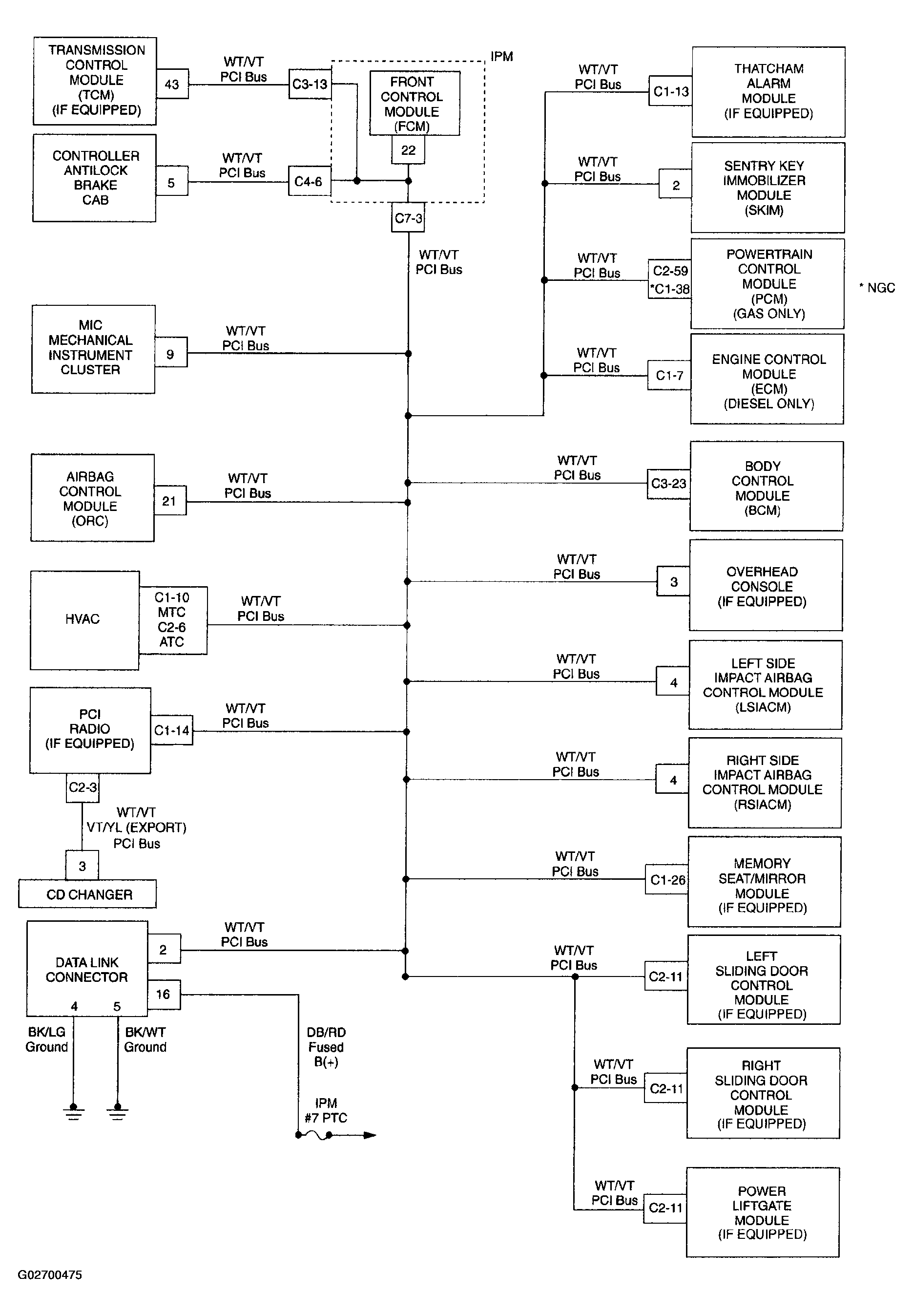

Fig 1: Communication Schematic Diagram
G02700475Courtesy of DAIMLERCHRYSLER CORP.
