Disassembly - ICU

WARNING: This page is about a different car, the 2003 Dodge Grand Caravan, 2003 Dodge Caravan, 2003 Chrysler Voyager, and 2003 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

Remove the ICU from the vehicle. (Refer to REMOVAL ).
Disconnect the pump/motor wiring harness from the CAB (Fig 1 ).

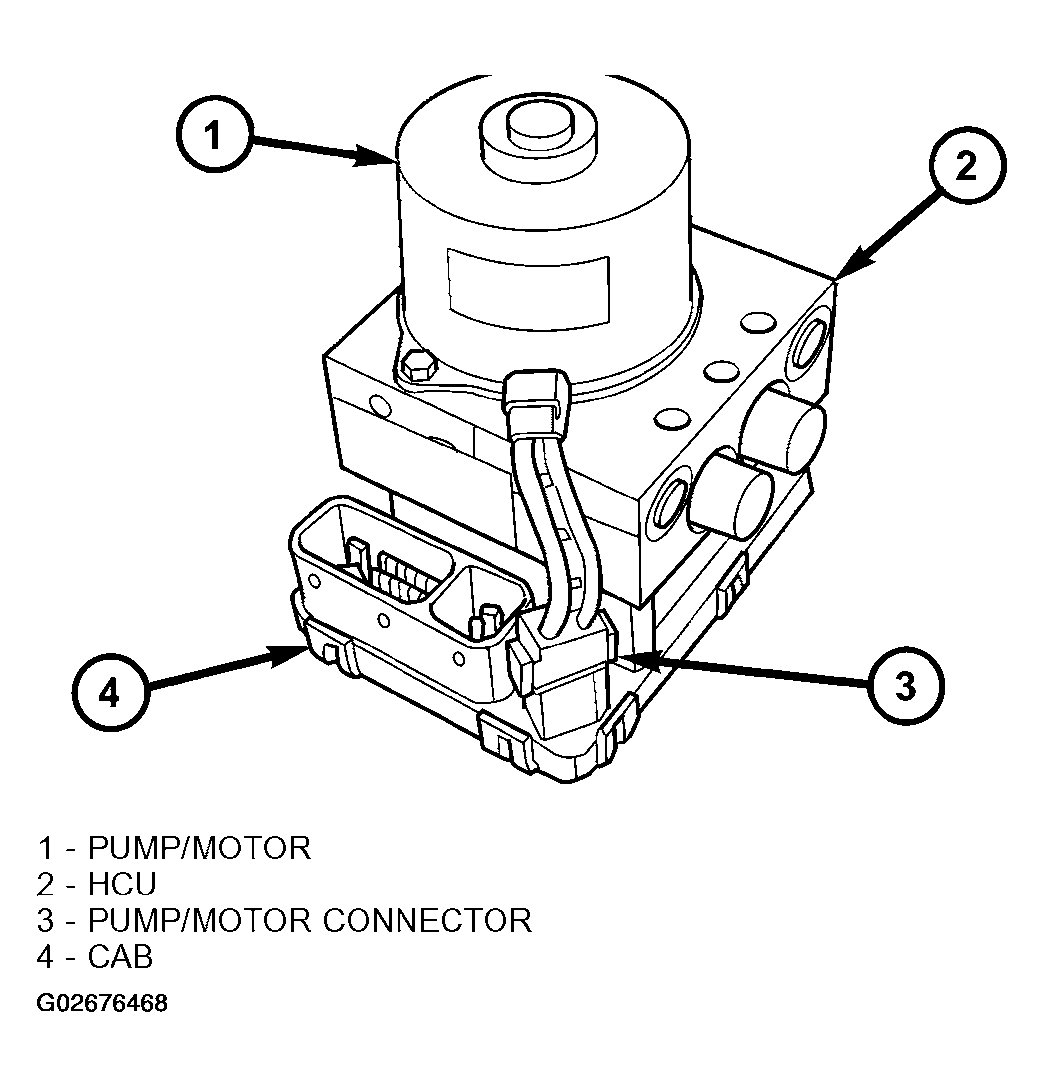

Fig 1: Identifying Integrated Control Unit (ICU)
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 4 bolts (Fig 2 ) attaching the CAB to the HCU.

Fig 2: Identifying (Typical) CAB Attaching Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Remove the CAB from the HCU (Fig 3 ).

Fig 3: Removing And Installing CAB (Typical)
Courtesy of DAIMLERCHRYSLER CORP.
