Circuit Schematic

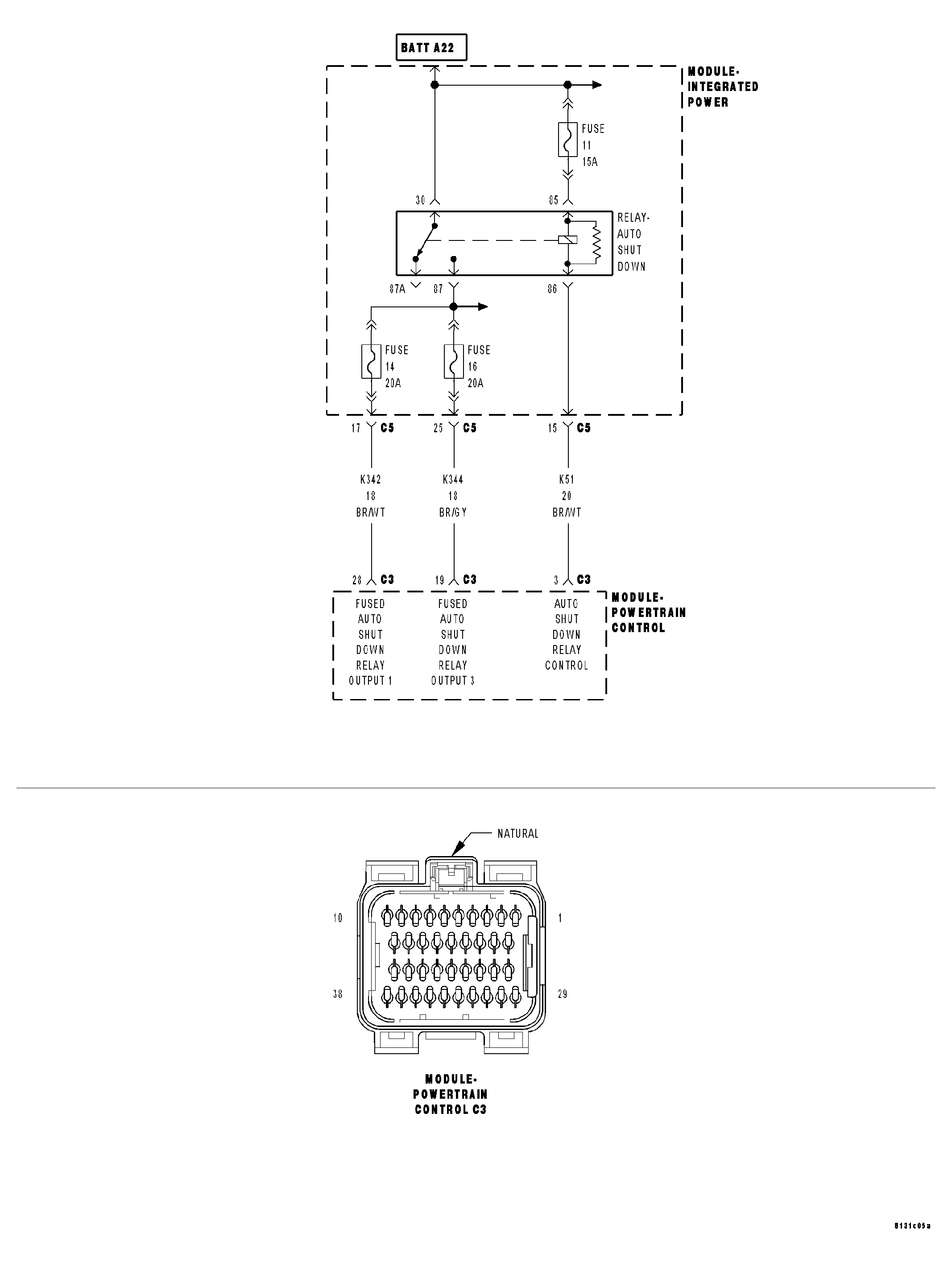

Fig 1: Auto Shutdown Relay Control Circuit Schematic
GC0015080Courtesy of DAIMLERCHRYSLER CORP.

For the Engine circuit diagram (Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
