Circuit Schematic

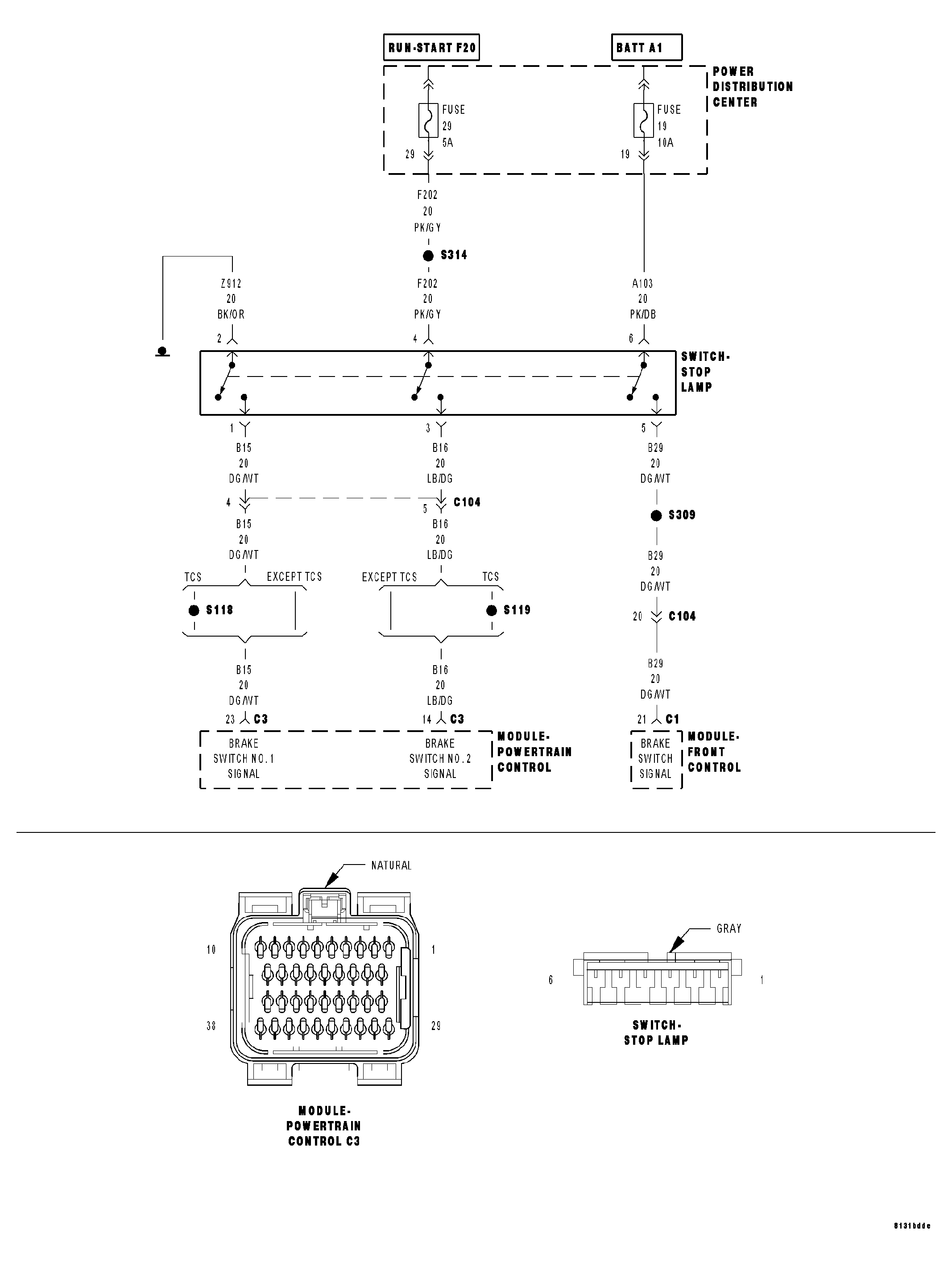

Fig 1: Stop Lamp Switch Circuit Schematic

GC0015053

Courtesy of DAIMLERCHRYSLER CORP.

For the Engine circuit diagram (Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
