Home >> Chrysler >> 2005 >> 300 Base >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0330 To P0481 >> Diagnosis And Testing >> P0440-General EVAP System Failure >> Circuit Schematic

Circuit Schematic

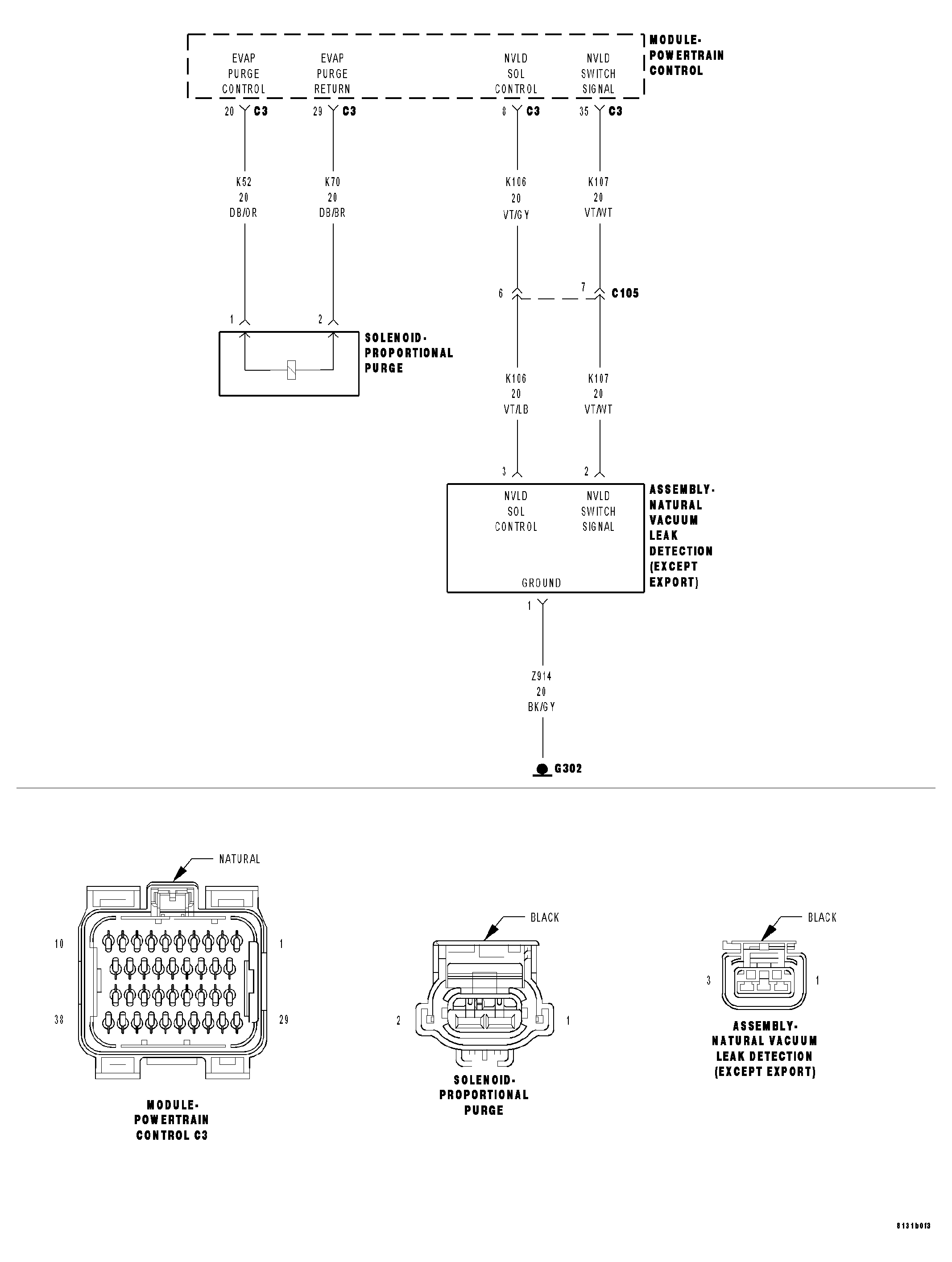

Fig 1: EVAP System Circuit Schematic

GC0014984

Courtesy of DAIMLERCHRYSLER CORP.

For the Engine circuit diagram (Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
