Diagnostic Test

  1. 1)  ACTIVE DTC
    Fig 1: SCAN TOOL (STARSCAN)
    GC0013164Courtesy of DAIMLERCHRYSLER CORP.

    Ignition on, engine not running.

    With a scan tool, read DTCs.

    Is the DTC active at this time?

    Yes

    1. Go To step  2).

    No

    1. Refer to INTERMITTENT CONDITION .
    2. Perform NGC POWERTRAIN VERIFICATION TEST VER - 5 .
  2. 2)  EGR POSITION VOLTAGE
    NOTE: Diagnose all other EGR DTC(s) before continuing.

    Start the engine.

    With a scan tool, read the EGR Position Sensor voltage.

    Choose a conclusion that best matches the EGR voltage reading.

    Below 3.5 volts

    1. Go To step  3).

    Between 3.5 volts to 4.3 volts

    1. Go To step  5).

    Above 4.3 volts

    1. Go To step  6).
  3. 3)  EXCESSIVE RESISTANCE IN THE (F856) 5-VOLT SUPPLY CIRCUIT
    Fig 2: Checking EGR Position Sensor 5-Volt Supply Circuit
    GC0014974Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the EGR Solenoid harness connector.

    Disconnect the PCM harness connectors.

    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Measure the resistance of the (F856) 5-volt Supply circuit from the EGR Solenoid harness connector to the appropriate terminal of special tool #8815.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go To step  4).

    No

    1. Repair the excessive resistance in the (F856) 5-volt Supply circuit.
    2. Perform NGC POWERTRAIN VERIFICATION TEST VER - 5 .
  4. 4)  (K34) EGR SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
    Fig 3: Checking EGR Position Sensor Signal Circuit
    GC0014975Courtesy of DAIMLERCHRYSLER CORP.

    Measure the resistance between ground and the (K34) EGR Sensor Signal circuit in the EGR Solenoid harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Repair the short to ground in the (K34) EGR Sensor Signal circuit.
    2. Perform NGC POWERTRAIN VERIFICATION TEST VER - 5 .

    No

    1. Replace the EGR Assembly.
    2. Perform NGC POWERTRAIN VERIFICATION TEST VER - 5 .
  5. 5)  (K35) EGR SOLENOID CONTROL CIRCUIT

    Ignition on, engine not running.

    With the scan tool, actuate the EGR Solenoid.

    Allow the EGR Solenoid to actuate for at least 15 seconds.

    Feel the EGR Solenoid for operation.

    Stop actuation.

    Does EGR Solenoid operate while actuating and then turn off when actuation test is stopped?

    Yes

    1. Refer to INTERMITTENT CONDITION .
    2. Perform NGC POWERTRAIN VERIFICATION TEST VER - 5 .

    No

    1. Refer to P0403-EGR SOLENOID CIRCUIT  diagnostic procedure and continue.
    2. Perform NGC POWERTRAIN VERIFICATION TEST VER - 5 .
  6. 6)  (K34) EGR SENSOR SIGNAL CIRCUIT
    Fig 4: Checking EGR Position Sensor Signal Circuit
    GC0014976Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the EGR Solenoid harness connector.

    Ignition on, engine not running.

    Measure the voltage of the (K34) EGR Sensor Signal circuit in the EGR Solenoid harness connector.

    Is the voltage above 4.30 volts?

    Yes

    1. Go To step  7).

    No

    1. Go To step  8).
  7. 7)  (K900) SENSOR GROUND CIRCUIT OPEN
    Fig 5: Checking EGR Position Sensor Ground Circuit
    GC0014977Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the PCM harness connectors.

    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Measure the resistance of the (K900) Sensor ground circuit from the EGR Solenoid harness connector to the appropriate terminal of special tool #8815.

    Is the resistance below 5.0 ohms?

    Yes

    1. Replace the EGR Assembly.
    2. Perform NGC POWERTRAIN VERIFICATION TEST VER - 5 .

    No

    1. Repair the open in the (K900) Sensor ground circuit.
    2. Perform NGC POWERTRAIN VERIFICATION TEST VER - 5 .
  8. 8)  (K34) EGR SENSOR SIGNAL CIRCUIT OPEN

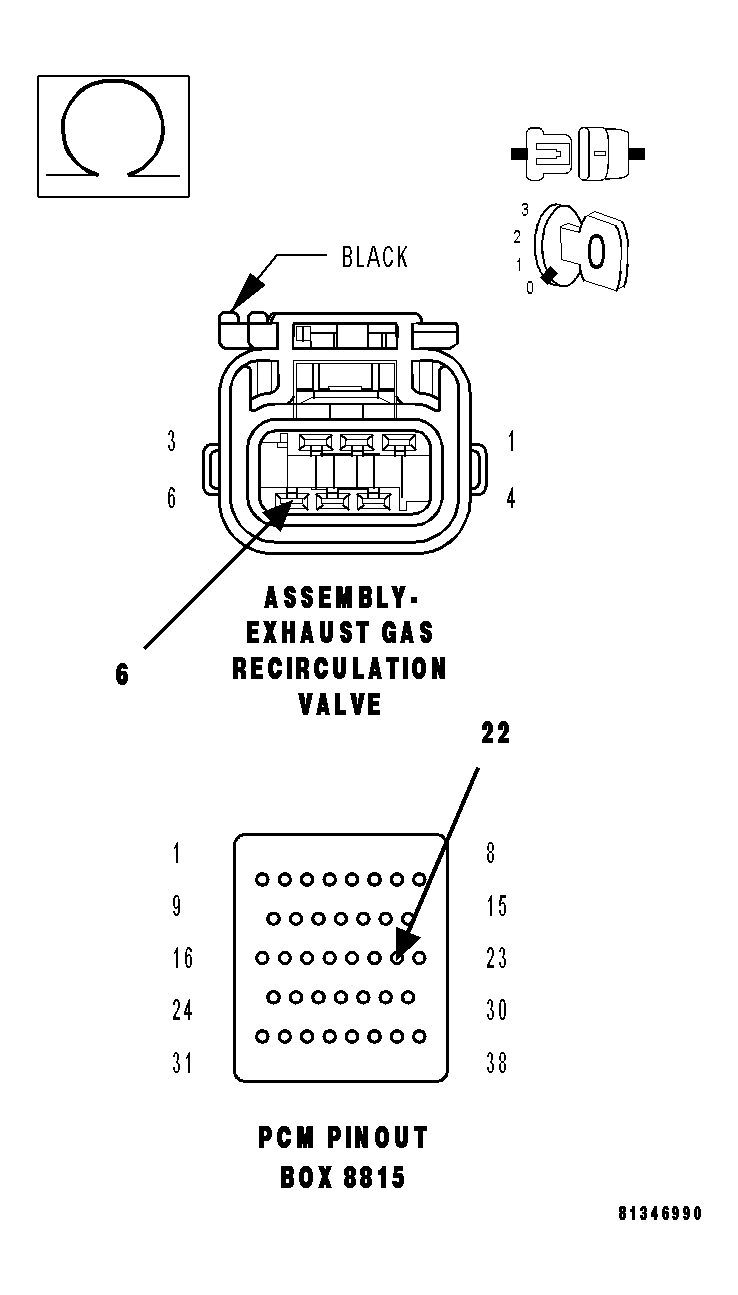

    Fig 6: Checking EGR Position Sensor Signal Circuit
    GC0014978Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the PCM harness connectors.

    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Measure the resistance of the (K34) EGR Sensor Signal circuit from the EGR Solenoid harness connector to the appropriate terminal of special tool #8815.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go To step  9).

    No

    1. Repair the open in the (K34) EGR Sensor Signal circuit.
    2. Perform NGC POWERTRAIN VERIFICATION TEST VER - 5 .
  9. 9)  (K34) EGR SENSOR SIGNAL CIRCUIT SHORTED TO GROUND
    Fig 7: Checking EGR Position Sensor Signal Circuit
    GC0014975Courtesy of DAIMLERCHRYSLER CORP.

    Measure the resistance between ground and the (K34) EGR Sensor Signal circuit in the EGR Solenoid harness connector.

    Is the resistance below 100 ohms?

    Yes

    1. Repair the short to ground in the (K34) EGR Sensor Signal circuit.
    2. Perform NGC POWERTRAIN VERIFICATION TEST VER - 5 .

    No

    1. Go To step  10).
  10. 10)  PCM
    NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

    Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

    Were there any problems found?

    Yes

    1. Repair as necessary.
    2. Perform NGC POWERTRAIN VERIFICATION TEST VER - 5 .

    No

    1. Replace and program the Powertrain Control Module. Refer to MODULE-POWERTRAIN CONTROL .
    2. Perform NGC POWERTRAIN VERIFICATION TEST VER - 5 .
